PSF160, Semi Flush Diaphragm Miniature Pressure Sensor
The PSF160 series are designed for highly dynamic pressure measurements. The semi-flush construction, the pressure diaphragm is in direct contact with the medium, with reduced dead volume & fast response.
Features:
- Operating from -40 to +125°C
- Thin Film Technology
- Semi Flush Miniature Sensor
- High Natural Frequency up to 120kHz
- M10x1 Male Thread
Manufacturer: EFE Sensors
Quote
Datasheet
Description
Specifications
Applications
Models & Accessories
Downloads
Similar Products
PSF160 - Description
The PSF160 series is designed for highly dynamic pressure measurements. Thanks to a semi-flush construction, the pressure diaphragm is exposed in direct contact with the medium, with reduced dead volume. Being all titanium, it is compatible with most media including corrosive fluids used in industry. Unamplified (mV/V output) or equipped with the latest signal conditioning technologies from EFE (0-5 and 0.5-4.5Vdc outputs), it is able to measure very dynamic pressure spikes. Its thin film sensitive element ensures high performances and stability over wide temperature range. Models with built-in electronics (power supply : 8-30Vdc), being low consumption ( < 10mA) and with high bandwidth capabilities are particularly adapted to embedded applications.
PSF160 - Specifications
| Type | Miniature |
| Operational Mode | Absolute |
| Sealed Gauge | |
| Vented Gauge | |
| Full Scale | 15 psi |
| 30 psi | |
| 75 psi | |
| 150 psi | |
| 300 psi | |
| 500 psi | |
| 1000 psi | |
| 3000 psi | |
| Output | 1.5 mV/V |
| 4.5 V DC | |
| 5 V DC | |
| Precision | ±0.10 % FS |
| ±0.25 % FS | |
| Excitation | 5 V DC |
| 8 - 16 V DC | |
| 15 V DC | |
| Material | Stainless Steel |
| Thread | M10 x 1 |
| Min Temperature | -40 °C |
| Max Temperature | 125 °C |
PSF160 - Applications
Areas of application include:
- Automotive - on vehicle
- Aerospace
- Research laboratory
- Automation & Robotics
PSF160 - Models & Accessories
Models
| PSF161 | Power supply: 5 to 15Vdc; Output Signal: mV/V |
| PSF163 | Power supply: 5Vdc ± 10mV; Output Signal: 0.5-4.5Vdc regulated power supply |
| PSF164 | Power supply: 8 to 30Vdc; Output Signal: 0-5Vdc |
| PSF167 | Power supply: 8 to 16Vdc; Output Signal: 0.5-4.5Vdc unregulated power supply |
PSF160 - Downloads
PSF161 Semi-Flush Diaphragm Miniature Pressure Sensor Datasheet |
PSF163 Semi-Flush Diaphragm Miniature Pressure Sensor Datasheet |
PSF164 Semi-Flush Diaphragm Miniature Pressure Sensor Datasheet |
PSF167 Semi-Flush Diaphragm Miniature Pressure Sensor Datasheet |

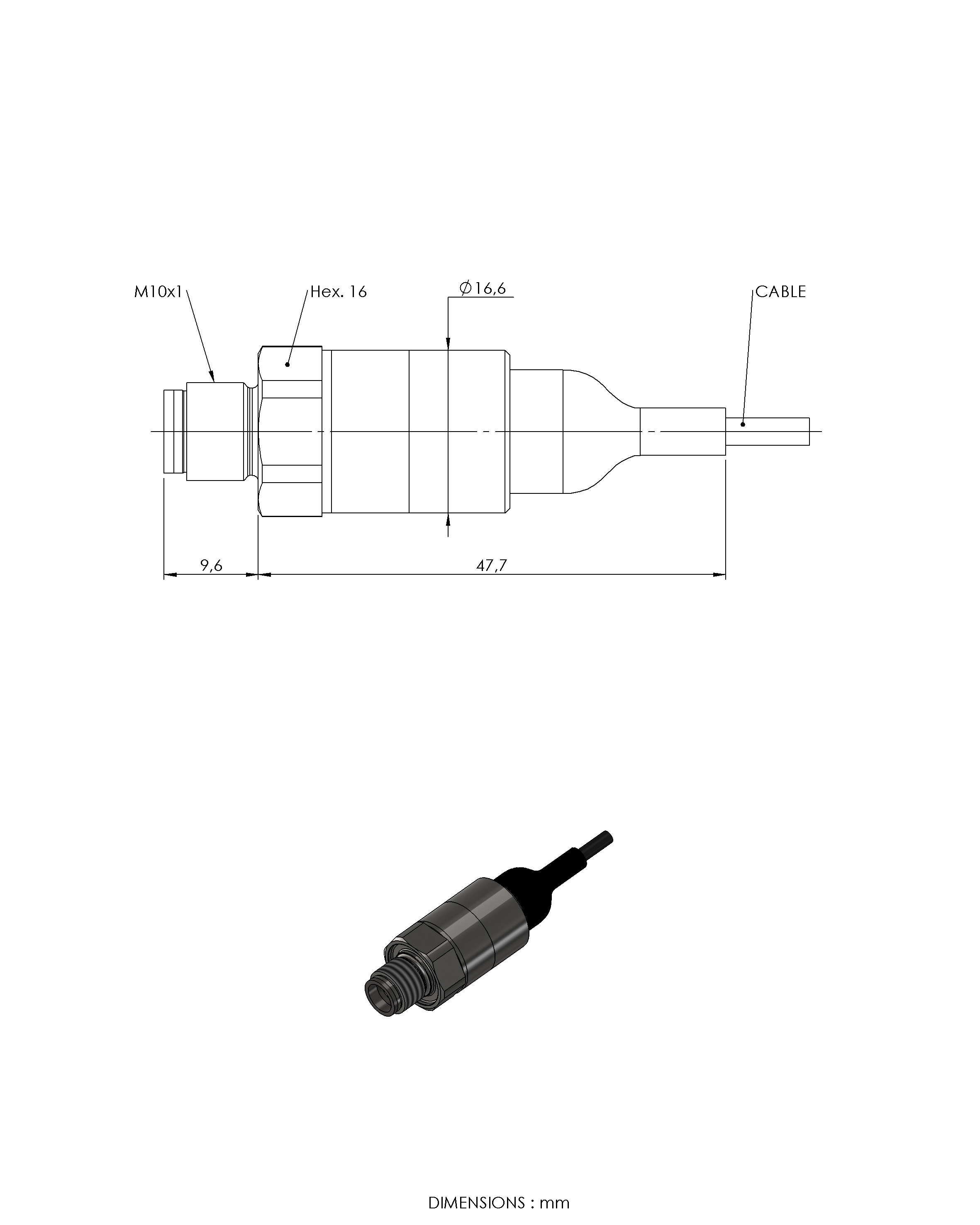

PSF160 3D Drawing Drawings |
