XFTC311, TE Load Cell - Miniature - Male/female Threaded
- Range from 0-500N to 0-10kN [0-112.4lbf to 2.248klbf]
- Tension and Compression
- Linearity ≤ ± 0.5% FS
- Male/female M5 and M10 threaded
- Optional IP rating improvement
- Extended temperature use as option
The XFTC311 series load cell is ingeniously crafted for accurate tension and compression measurements in both static and dynamic environments. Its compact design is particularly beneficial for applications where space is limited. This series incorporates a fully temperature-compensated Wheatstone bridge, equipped with high stability micro-machined silicon strain gages, ensuring superior performance in low force ranges and at low frequencies.
The application of silicon strain gages significantly enhances the load cell's efficiency, making it ideal for precision measurements. The inclusion of a strain relief spring provides additional durability to the cable output, ensuring the load cell's longevity even in rigorous testing scenarios.
Designed for versatility, the XFTC311 comes with both male and female threads, available in M5 and M10 sizes, facilitating straightforward installation in a wide range of industrial and OEM applications. The series also offers options for improved IP ratings for enhanced protection in challenging environments, and an extended temperature range option is available to accommodate various operational demands.

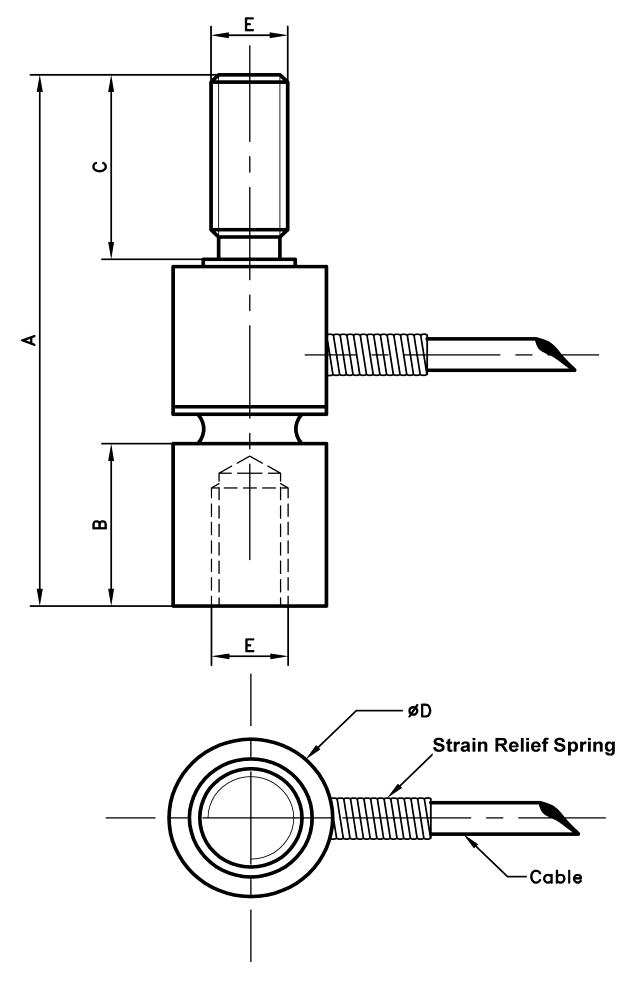

DIMENSIONS & WIRING SCHEMATIC (IN METRIC AND IMPERIAL)

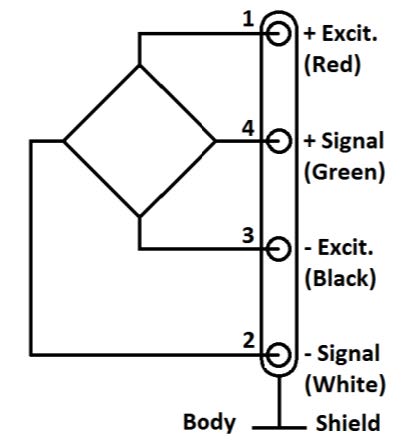

Wiring Schematic

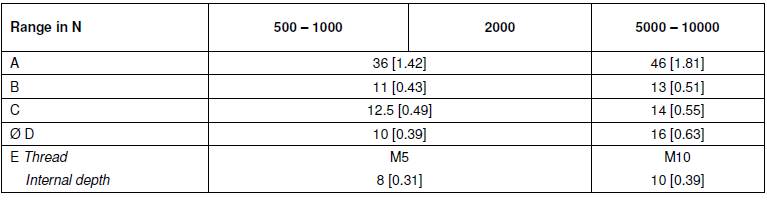

Dimensions in mm [inch]
| Type | Rod Type |
| Application | Tension & Compression |
| Full Scale | 112 lbs |
| 225 lbs | |
| 450 lbs | |
| 1124 lbs | |
| 2250 lbs | |
| Output | 10 mV/V |
| 15 mV/V | |
| Precision | ±0.5 % FS |
| Excitation | 10 V DC |
| IP Rating | IP50 |
| Min Temperature | -40 °C |
| Max Temperature | 120 °C |
- Strain measurement on finger-like command
- Small size actuators
- Miniature press-fit device
- Robotics control measurement
- Laboratory
| XFTC311-10KN | |
| XFTC311-5KN | |
| XFTC311-2KN | |
| XFTC311-1KN | |
| XFTC311-500N |
XFTC311, Miniature Threaded Load Cell Datasheet |
- 0-500N to 0-10kN [112.4 lbf to 2.248k lbf]
- High Stiffness
- Threaded Male Mechanical Fitting
- Linearity < 0,5% FS
- Tension and/or Compression
- Small design easy to mount
- Wide temperature range in option
- Very small size
| Type | Rod Type |
| Application | Tension & Compression |
| Full Scale | 112 lbs, 225 lbs, 450 lbs, 1124 lbs, 2250 lbs |
| Output | 10 mV/V, 15 mV/V |
| Precision | ±0.5 % FS |
| Excitation | 10 V DC |
- Based on standard rod end bearings
- Easy to integrate
- Fast response time
- Range from 0-500 N to 0-5 kN or [100 lbf to 1 klbf]
- Tension and Compression
- Low deflection
| Type | Rod Type |
| Application | Tension & Compression |
| Full Scale | 100 lbs, 200 lbs, 600 lbs, 800 lbs, 1000 lbs |
| Output | 1 mV/V |
| Precision | ±0.3 % FS |
| Excitation | 1 V - 10 V DC |
- Range from 0-2N to 0-2KN [0.45 lbf to 450 lbf]
- Tension and Compression
- High Overload Capacity
- Small design easy to mount
- Optional IP rating improvement
- Extended temperature range available
- Other male/female threads available
| Type | Rod Type |
| Application | Tension & Compression |
| Full Scale | 0.45 lbs, 1.1 lbs, 2.2 lbs, 4.5 lbs, 11.2 lbs, 22.5 lbs, 45 lbs, 112 lbs, 225 lbs, 450 lbs |
| Output | 2.5 mV/V, 10 mV/V |
| Excitation | 10 V DC |
| IP Rating | IP50 |
- Ranges 0-2N to 0-2kN [0.45 lbf to 450 lbf]
- High Stiffness
- Threaded Male Mechanical Fitting
- Linearity < 0,5% FS
- Tension and/or Compression
- Small design easy to mount
- Wide temperature range in option
- Amplifier Integrated optional
| Type | Load Button |
| Application | Tension & Compression |
| Full Scale | 0.45 lbs, 1.1 lbs, 2.2 lbs, 4.5 lbs, 11.2 lbs, 22.5 lbs, 45 lbs, 112 lbs, 225 lbs, 450 lbs |
| Output | 10 mV/V |
| Precision | ±0.5 % FS |
| Excitation | 10 V DC |
- Wide range of temperature compensated
- Optional IP rating improvement
- Heavy duty
- High stiffness
- Range from 0-5kN to 0-10kN [0-1.124 klbf to 2 .248klbf]
- Tension and/or Compression
| Type | Rod Type |
| Application | Tension & Compression |
| Full Scale | 1124 lbs, 2250 lbs |
| Output | 1 mV/V |
| Precision | ±0.5 % FS |
| Excitation | 10 V DC |
