Force Platforms in Biomechanics

1. Introduction

Force platforms (or force plates) are precision measurement devices used in biomechanics to record the forces exerted between a person and the ground. They are fundamental tools in gait analysis, sports performance testing, and research on human movement. A force plate typically consists of a flat, rigid platform instrumented with sensors that capture the ground reaction forces (GRFs) in multiple directions when a subject stands, walks, or jumps on it. The data from force platforms provides insights into how forces are generated and distributed during movement, enabling detailed analysis of balance, locomotion, and athletic performance.

Modern force platforms are highly sophisticated, compact, portable, and capable of real-time data acquisition and automated analysis. They measure force in various dimensions: single-axis platforms focus solely on vertical forces; three-axis platforms capture vertical, anterior-posterior, and medial-lateral forces; and advanced six-axis platforms measure forces along all three axes, including rotational moments, providing comprehensive kinetic profiles crucial for detailed biomechanical assessments.

Force platforms have evolved significantly, integrating seamlessly with software for instant, detailed analytics. Their versatility and precise measurements have broadened their use across multiple sectors, including biomechanics laboratories, healthcare clinics, sports training centers, and occupational ergonomics.

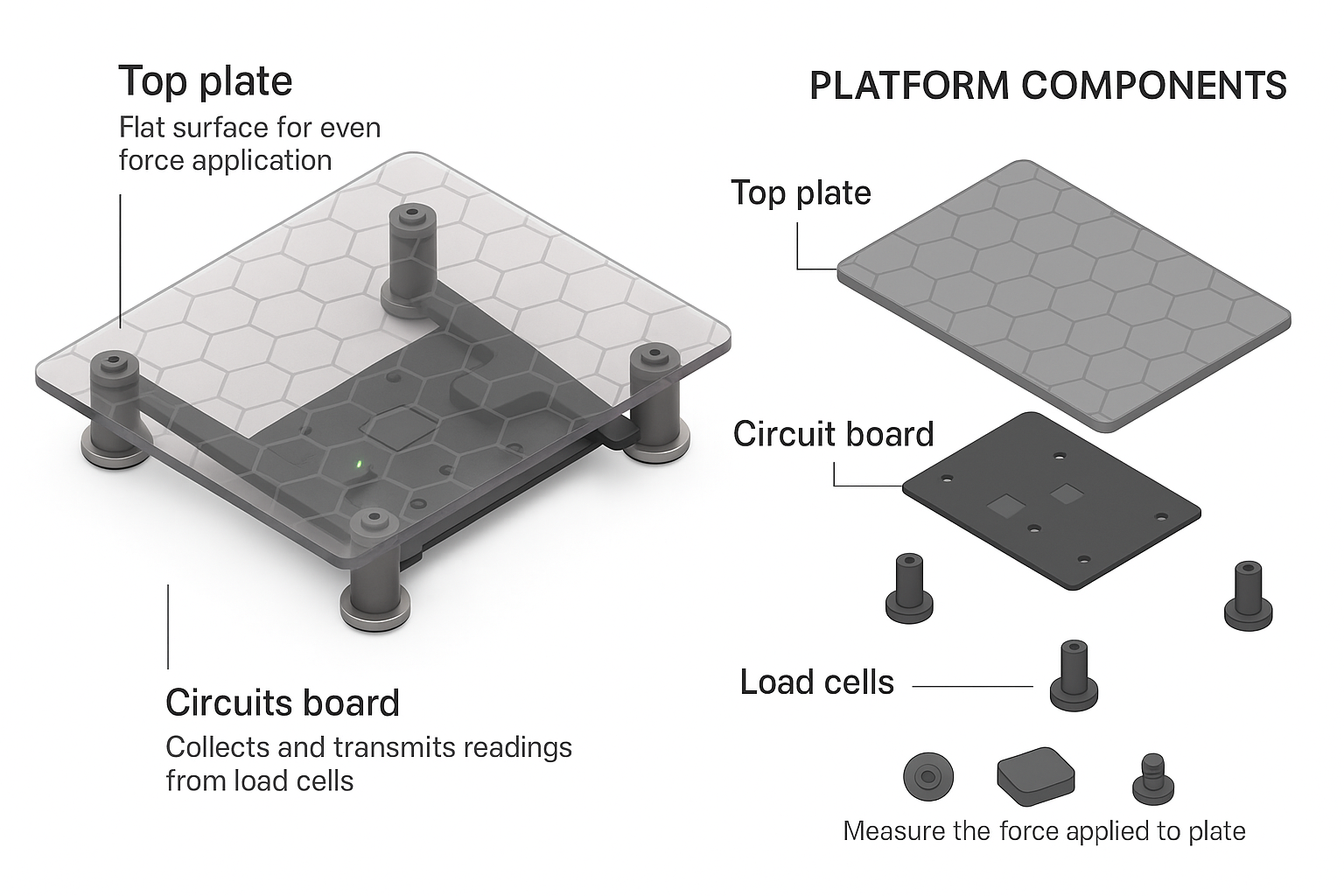

Force Platform Components

A force platform is composed of several critical components that work together to capture and transmit force data:

• Top Plate: The top surface is a stiff, flat platform (often metal or composite) on which the subject stands or steps. It must be rigid enough not to bend significantly under load (to maintain measurement accuracy) and is usually covered with a non-slip surface. The top plate distributes the applied force to the underlying sensors.


• Force Sensors (Load Cells): These are the transducers at the core of the force plate. Typically located at the corners or along support points of the plate, they deform slightly when force is applied. Common sensor types include strain gauge load cells and piezoelectric sensors (detailed in the next section). The sensors are often arranged to capture different force components; for example, a typical force plate might have four sensing units, each capable of measuring forces in multiple directions. The combined output of all load cells gives the total force in each axis and the moments about those axes.


• Supporting Structure: The sensors usually connect the top plate to a bottom plate or mounting frame. This structure holds the sensors in the correct orientation and provides a stable reference (often the floor or a base plate). In some designs, the top plate rests on sensor-equipped beams or columns at the corners, which are attached to a rigid bottom plate fixed to the ground. The supporting frame ensures the force plate only moves minutely under load (just enough for sensors to register strain or pressure) and maintains alignment of the sensing axes (vertical vs horizontal).


• Circuit Board: The raw signal from force sensors often needs conditioning before it can be recorded. Strain gauge sensors produce small changes in resistance, so they are wired in Wheatstone bridge circuits and require amplification. Piezoelectric sensors produce a charge or voltage that needs a charge amplifier or special high-impedance amplifier. The circuitry includes amplifiers to boost the sensor signals, filters to remove noise (and prevent aliasing), and sometimes analog sum/difference networks for computing forces and moments. Modern force plates may integrate these electronics nearby or inside the plate housing to reduce noise.


• Data Acquisition and Interface: The conditioned analog signals are converted to digital data for analysis. High-speed analog-to-digital converters (ADCs) sample each channel at a high frequency (often 1000 Hz or more) to capture rapid force changes. The data is then transmitted to a computer or recording device. Many force plates come with dedicated data acquisition systems or digital interfaces (USB, Ethernet, etc.) that package the force data for software. This component also often includes synchronization capabilities (to sync force data with motion capture cameras or EMG signals, for example).



Each of these components is designed with precision so that the final output accurately reflects the forces applied by the user, with minimal distortion or loss of information. The robust mechanical construction of the top plate and supports ensures durability and consistent response across the plate’s surface, while quality sensors and electronics maintain linearity and low noise in the measurements.

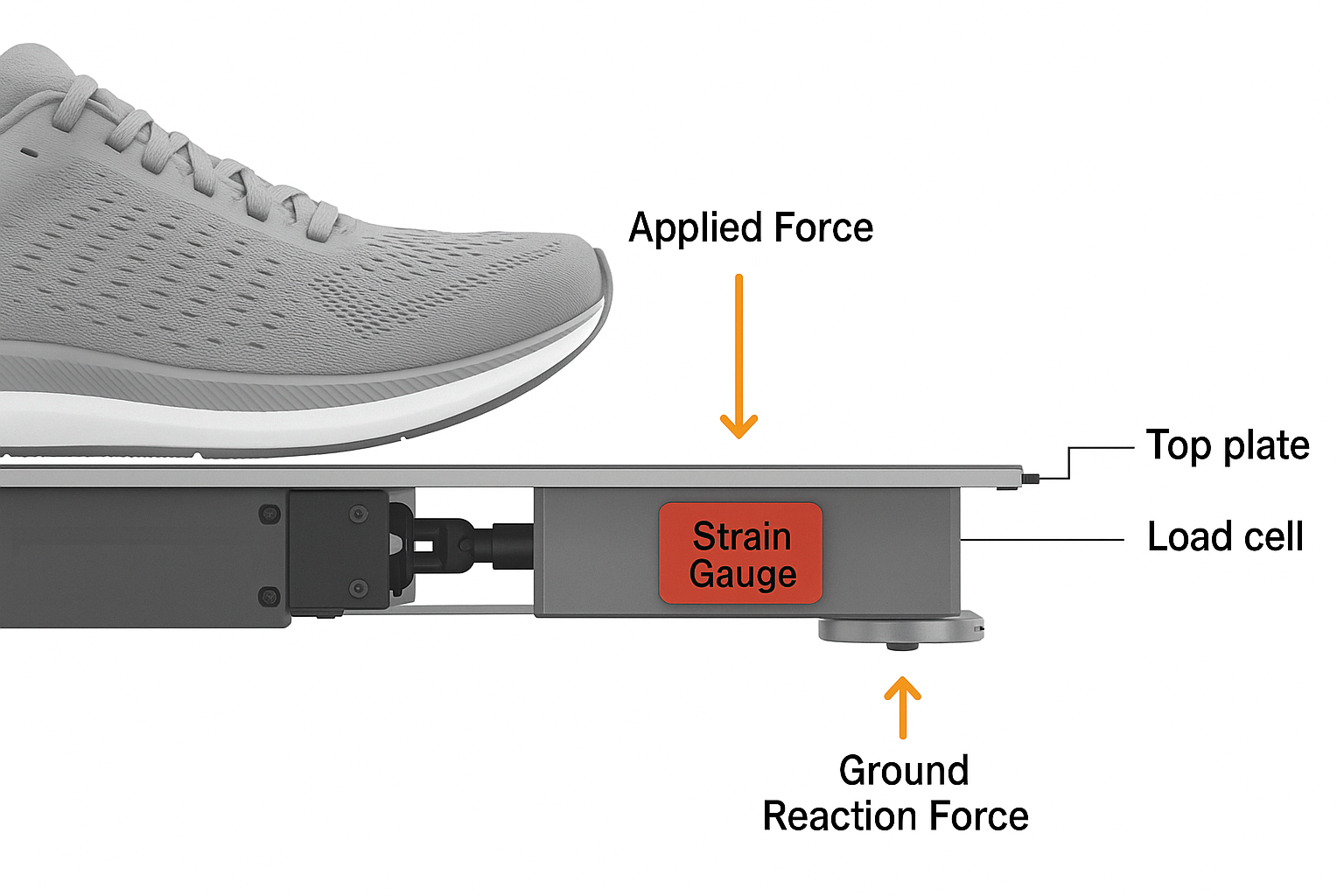

2. Principles of Operation

How do the Force Platforms work?

A force plate measures the forces that a person’s body applies to the ground – and by Newton’s laws, the equal and opposite ground reaction forces returned by the ground. When a subject contacts the platform (for example, during a foot strike in walking or the landing phase of a jump), the platform’s sensors deform slightly under the load. This mechanical deformation is converted into electrical signals by the force sensors. The signals are proportional to the magnitude of the forces in each direction. High-speed data acquisition electronics record these signals continuously, producing a force-time curve for each component of force during the contact event.

In practice, a standard biomechanical force platform is mounted rigidly (often flush with the floor) so that it becomes part of the ground surface. As the subject moves naturally over it, the plate captures dynamic changes in force. For example, during walking gait, when the heel strikes the plate, the sensors register a sharp increase in vertical force followed by fluctuations as weight is transferred and then removed at toe-off. In a vertical jump test, the force plate records the initial downward push (as the athlete bends their knees), then the explosive upward force during take-off, and finally the impact force upon landing. All these forces are recorded with precise timing, allowing analysis of both magnitude and timing of force application.

Internally, the force plate’s multiple sensors (typically arranged at the corners or symmetrically under the plate) measure forces along defined axes. For a multi-axis force plate, these individual sensor readings are combined via circuitry or software to resolve the total force along each principal axis (commonly vertical Fz, fore-aft Fx, and side-to-side Fy). If the design also measures moments (torques), the system can calculate where on the platform the force was applied (the center of pressure, or CoP). Overall, the working principle is that as the person applies force to the plate, the plate’s sensors output an electrical analog of that force. With proper calibration, this output accurately represents the ground reaction force vector in real time, which is essential for biomechanics analyses.

Sensor Technologies in Force Platforms

Force platforms generally use one of two main sensor technologies to measure forces: strain gauge sensors or piezoelectric sensors. Each technology has its own operating principle and characteristics:

Strain Gauge Load Cells: Strain gauges are thin elastic sensors (often foil-type) that change their electrical resistance when stretched or compressed. In a force plate, strain gauges are bonded to metal elements (like beams or columns) that deform slightly under load. Typically arranged in a Wheatstone bridge configuration, these gauges output a voltage proportional to the strain, which correlates to the force applied. Strain-gauge-based force plates often use multiple gauges oriented to measure different directions of force: for example, vertical forces may bend a cantilever beam supporting the plate, while horizontal shear forces may twist or bend another element. By having gauges at 90° orientations or in multiple axes on each support, the system can sense forces along all three axes. Strain gauge sensors are excellent for measuring both static and dynamic forces. They have very little drift over time under a constant load, making them suitable for prolonged measurements (such as a person quietly standing for balance tests). However, they require careful calibration to ensure accuracy and may be somewhat sensitive to temperature changes (temperature compensation is typically built in to high-quality load cells). Strain gauge plates usually have a slightly lower natural frequency compared to piezoelectric plates (due to the mechanical compliance of the metal elements), but they are still fast enough for most human movement analysis and offer high accuracy and stability.

Piezoelectric Sensors: Piezoelectric force sensors utilize the property of certain crystalline materials (like quartz or specialized ceramics) to generate an electric charge when mechanically stressed. In a piezoelectric force plate, each support point might contain a stack of quartz crystals preloaded in a casing. When force is applied, the crystals produce a charge proportional to the force component in that direction. These charges are converted to a voltage signal via a charge amplifier. Piezoelectric sensors are highly sensitive and have an extremely fast response, making them ideal for capturing rapid force transients (such as the impact peak when a runner’s foot strikes the ground). They also typically allow very stiff construction (since the sensor itself is rigid), which gives the force plate a high natural frequency and minimal deflection under load. The main limitation of piezoelectric force plates is that they cannot hold a truly static force reading indefinitely – the output will gradually drift when a constant force is applied. This is because the electric charge leaks over time through the measurement circuit. In practice, this means piezoelectric plates are excellent for dynamic measurements (even slow dynamics like gait), but for very long duration static loads, their readings may zero out or require re-zeroing. Manufacturers mitigate this with electronics that have long time constants, effectively allowing “quasi-static” measurements for the duration of typical tests. Piezoelectric force platforms (like those from Kistler) are renowned for precision and are often used in research settings where capturing fine changes in force is critical. They require periodic calibration and proper handling of the charge signals, but deliver a wide measurement range and low noise.

Other Technologies: While less common in large force plates, other sensor types can be used for force measurements. Capacitive sensors and piezoresistive sensors (like MEMS-based load cells or force-sensing resistors) have been explored in portable and smaller-scale force platforms or pressure-mapping systems. These often trade some precision or range for cost and portability. However, for high-precision biomechanics applications, strain gauge and piezoelectric remain the dominant technologies due to their proven accuracy and reliability.

Newton’s Laws and Force-Time Curves

Force platforms operate squarely on fundamental physics principles – Newton’s laws of motion – and provide direct measurements to apply those principles to human movement. Two of Newton’s laws are especially relevant:

• Newton’s Third Law (Action-Reaction): For every action, there is an equal and opposite reaction. When a person pushes on the ground, the ground pushes back with an equal force. The force plate directly measures this ground reaction force. At rest, a person standing still on the plate exerts a downward force equal to their weight, and the plate reports an upward reaction force of the same magnitude. During movement, any acceleration of the body’s center of mass will be reflected in changes in the ground reaction force. For example, if a person jumps, they first push harder against the ground (the plate will show a force greater than body weight) to accelerate upward; once airborne, they no longer press on the plate (force drops to zero until landing); upon landing, the plate registers a force spike as the ground decelerates the person.


• Newton’s Second Law (Force and Acceleration): This law states $F = m cdot a$, meaning the net force on an object equals its mass times its acceleration. Force plate data, when divided by the person’s mass, can reveal the acceleration of their center of mass. By integrating the acceleration over time (or integrating force over time to get impulse and then velocity change), one can compute changes in velocity and displacement of the body. This is how, for instance, force plate data are used to calculate jump height (by integrating the force-time curve to find take-off velocity) or to estimate how the center of mass moves during gait. Newton’s second law underpins the conversion of force-time information into other kinematic quantities like velocity, power, and work.

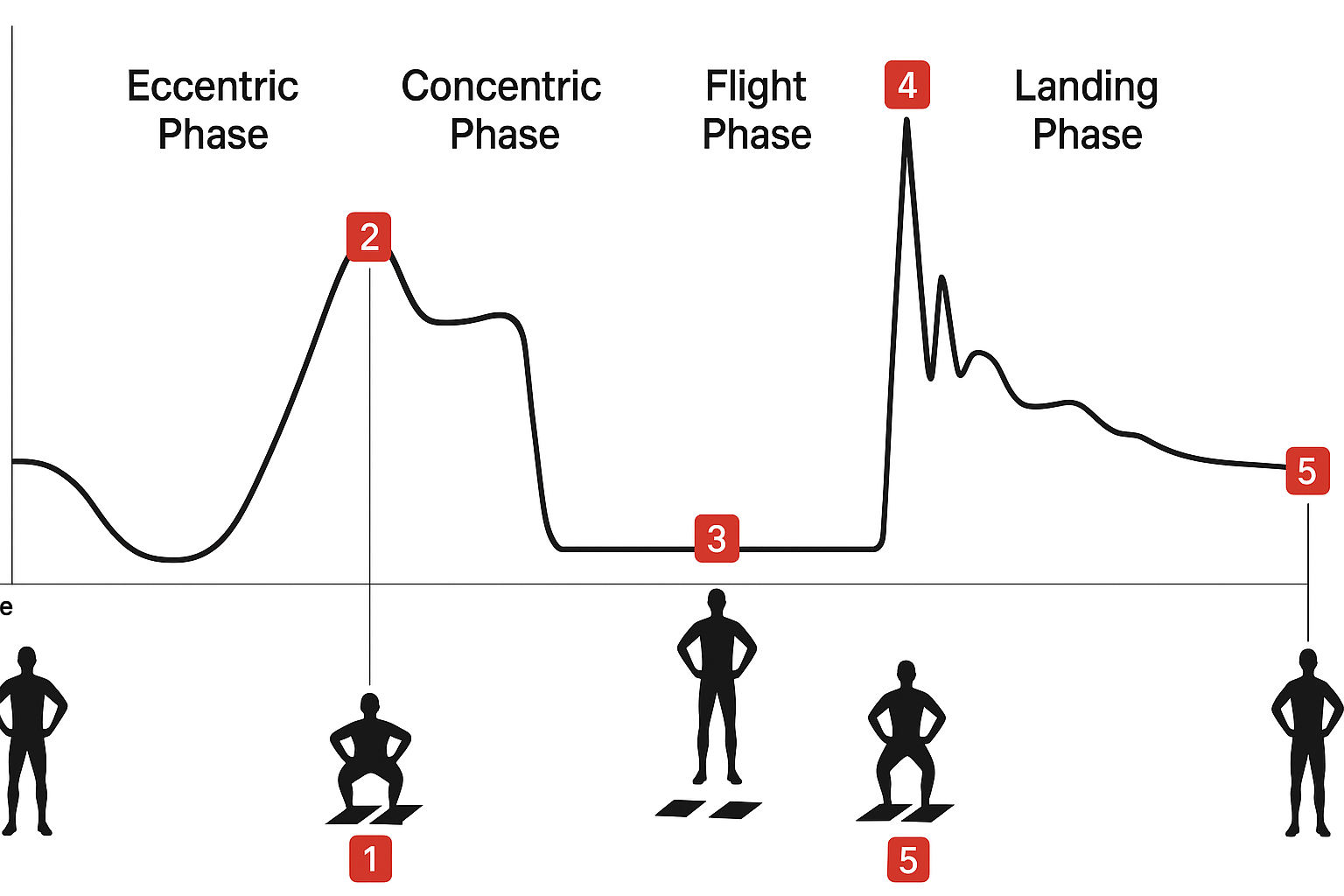

The force-time curve is the primary data representation from a force platform. It is a graph of force (vertical or each component) versus time during the period of contact. Analyzing the shape and key values of this curve is central to biomechanics:

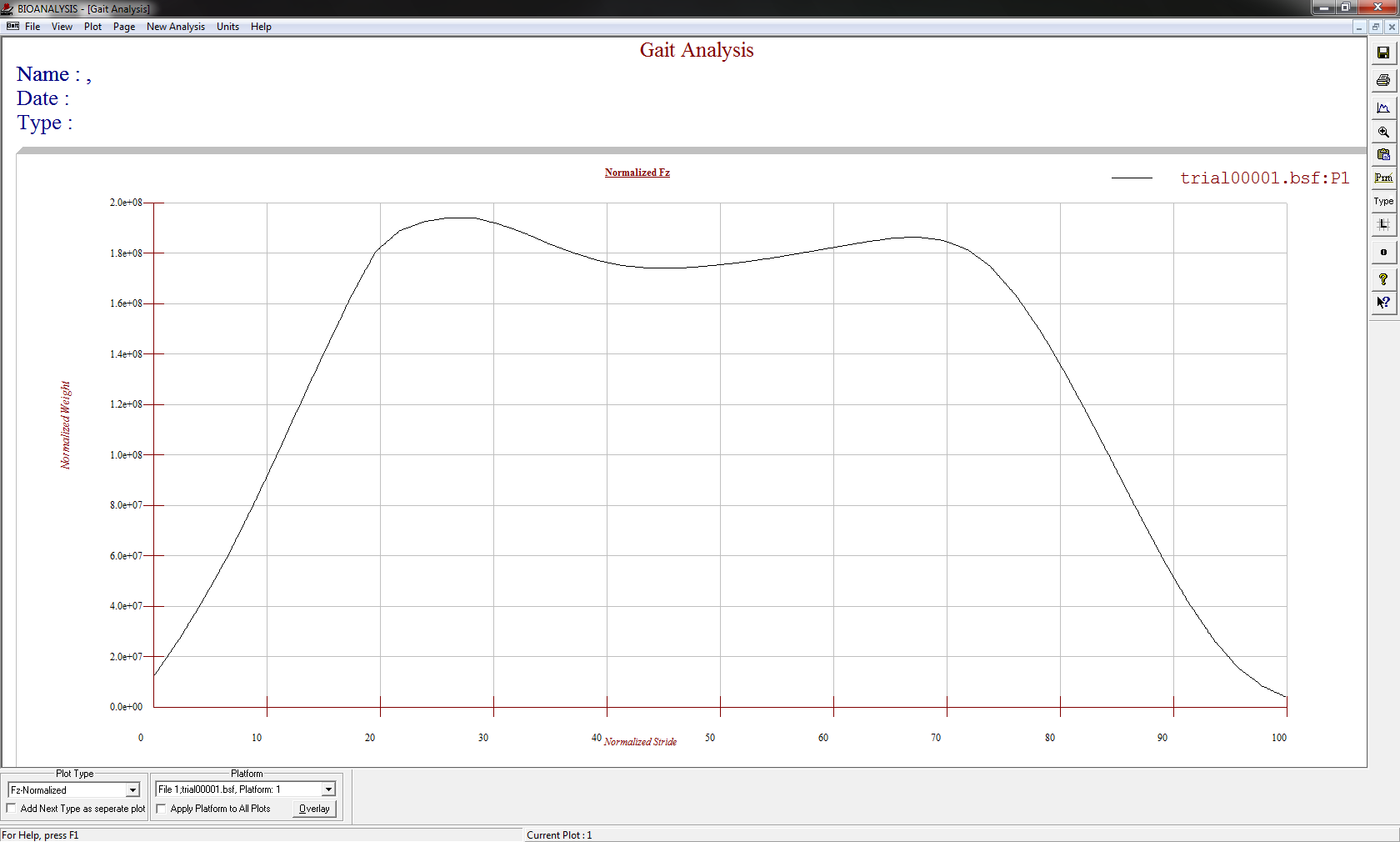

• In gait analysis, the vertical force-time curve for a full step (heel strike to toe-off) typically exhibits a characteristic "double bump" pattern for walking: an initial peak when weight is loaded onto the leg (impact and weight acceptance), a slight dip during mid-stance, and a second peak during push-off as the person propels forward. The magnitude and timing of these peaks, as well as the impulse (area under the force-time curve), provide information on how the person is walking – for example, whether they favor one leg or have an atypical loading pattern due to an injury. The anterior-posterior force (Fx) curve during gait shows a negative (braking) phase when the foot is slowing the body at heel contact and a positive (propulsive) phase as the foot pushes off. The medial-lateral force (Fy) is usually smaller, indicating side forces that help balance. All these can be studied to understand gait efficiency and balance.


• In sports performance, force-time curves help assess explosive power and neuromuscular performance. For a countermovement jump, the force-time graph will show an initial dip (as the athlete squats down, force may go slightly below body weight), followed by a sharp rise as they push off (often peaking well above body weight), then a drop to zero at lift-off, and finally a large spike upon landing. From this curve, metrics like peak force (maximum value), rate of force development (slope of the rising force), and ground contact time can be derived. These metrics are used to evaluate an athlete’s strength and explosive capabilities. Similarly, for exercises like squats or isometric pulls, a force plate can record how force builds and decays, indicating muscular performance and fatigue.

Another important concept is the Center of Pressure (CoP), which is derived from the moment data of a force plate. While Newton’s laws address the overall forces, the distribution of force on the plate matters too. The CoP is the point on the plate where the resultant force can be considered to act. It’s calculated from the moments (torques) about the plate’s axes: for example, if a person stands more toward the toes or one side of the plate, the sensors detect a moment indicating an off-center load, and from that the CoP coordinates are determined. Tracking how the CoP moves during an activity is crucial for balance and gait analysis. For instance, in walking, the CoP moves from the heel at contact, through the foot arch, to the toes at push-off. In quiet standing, the CoP will sway slightly, reflecting postural control – an important measure in balance tests.

3. Types of Force Platforms

Force plates come in different types, distinguished by how many dimensions of force they measure and what components of the force/torque they capture. The main categories are often described as 1D, 3D, or 6D force platforms:

Single-Axis (1D) Force Platforms

Single-axis force platforms measure force in only one dimension – almost always the vertical axis (up-down force). A one-dimensional force plate effectively acts like a high-precision scale that captures dynamic weight changes. They are commonly used for simple tests like vertical jump assessments or any situation where only the vertical ground reaction force is of interest. For example, a basic jump mat or a single-axis load cell under a plate can record the upward force when an athlete jumps or lands. 1D force plates are typically more portable, lightweight, and cost-effective because they use fewer sensors and simpler construction. However, they do not provide information about shear forces (forward/backward or sideways) and cannot determine the center of pressure on the surface. Their use is generally limited to tests where balance and directional forces are not being analyzed in detail.

Three-Axis (3D) Force Platforms

A three-dimensional force plate (often called a triaxial force plate) measures forces along the three orthogonal axes: vertical, medial-lateral, and anterior-posterior. In other words, it provides the complete ground reaction force vector at each instant. This means one can observe, for instance, both the downward force and the forward/backward (braking or propulsive) forces during gait, as well as any sideways force. 3D plates allow for much more comprehensive analysis than 1D plates, as they capture how the force is applied in space. Most force plates used in gait labs or sports biomechanics labs are at least 3D. Typically, a 3D force platform will have multiple sensors or specially designed multi-axis sensors so that it can resolve force components in X, Y, and Z directions. Using the 3D force data, one can analyze things like whether an athlete generates more propulsive force in a sprint start, or how much sideways force is produced during cutting maneuvers. However, a basic 3D force plate might not directly give the point of force application (CoP) or the torque about the vertical axis unless it also measures moments – that’s where 6D comes in.

Six-Axis (6D) Force Platforms

A six-dimensional force platform measures the three force components (Fx, Fy, Fz) and the three moment components (Mx, My, Mz) about each axis. These are also referred to as 6-component or 6 degree-of-freedom (6-DoF) force plates. In essence, a 6D plate captures not only the force vector but also the torque vector, providing a full description of the load applied to the plate. The additional three channels (moments) are crucial for determining the center of pressure on the plate and any torsional forces. With a 6D system, one can understand if the person is applying a twisting force (e.g., turning on the foot) or an off-center load.

High-end force plates from major manufacturers are typically 6D; although they are often called “3D force plates” in casual terms, they provide six outputs (Fx, Fy, Fz, Mx, My, Mz). Six-component data is the gold standard in gait and balance research, as it enables precise calculation of CoP trajectories and is essential in inverse dynamics calculations (combining force data with motion capture to compute joint loads). For example, in clinical gait analysis, 6D plates allow clinicians to see how far towards the toes or heels a patient is loading (via CoP), or if there is any abnormal twisting force as the foot interacts with the ground. In sports, a 6D plate could capture whether an athlete tends to push more with the front or rear of the foot during a jump or detect an uneven torque on takeoff that might affect technique.

4. Technical Specifications and Considerations

When evaluating or setting up a force platform for biomechanics applications, several technical specifications are critical to ensure the data quality and that the device meets the needs of the analysis. Key specifications include:

4.1. Load Capacity and Range:

This defines the maximum force the plate can accurately measure in each direction. Force plates must handle forces well above body weight, especially in high-impact activities. For instance, the vertical load capacity might be on the order of several thousand newtons (e.g., 5,000 N or more) to accommodate activities like jumping or running where multiple times body weight can be experienced on landing. Horizontal (shear) force capacity is usually lower than vertical but still significant (often 500–1000+ N) given the friction limits. It’s important to choose a force plate with sufficient range so that peak forces do not saturate the sensors. Some plates also specify an overload tolerance (how much beyond the rated capacity they can go without damage). In addition to peak capacity, the measurement range should have good resolution at the low end (so that light forces, even just a few newtons, can be detected for sensitive measurements like balance sway).

4.2. Sampling Rate and Frequency Response:

The sampling rate is how many data points per second the system can record from each channel. A high sampling rate is essential for capturing the rapid changes in force during events like heel strikes or jump take-offs. Typically, force plates are used with sampling frequencies of 1000 Hz (1 kHz) or higher. Many systems support 2000 Hz, 5000 Hz, or even more, especially for impact testing or when very fine temporal resolution is needed. Along with sampling rate, the force plate and its amplifier have a certain frequency response or natural frequency. The mechanical structure has a natural frequency of vibration – high-quality force plates are designed to have a very high natural frequency (often several hundred Hz or more, ideally above the highest frequency content of human movement forces) so that the plate itself does not resonate or filter the forces significantly. A stiff, well-designed plate will accurately transmit even rapid force transients to the sensors. To avoid aliasing, the signal conditioning typically includes analog low-pass filters just below the Nyquist frequency (half the sampling rate). Users should ensure the sampling rate is appropriate for their activity (for walking, 1000 Hz is usually sufficient; for very sharp impacts, higher might be better) and that any filtering does not remove relevant force signal components.

4.3. Resolution and Accuracy:

Resolution refers to the smallest change in force that the system can detect, often tied to the bit-depth of the ADC and the noise floor of the system. For a typical system, this might be in the order of a fraction of a newton. Accuracy describes how close the measured values are to the true forces. High-end force plates boast very high accuracy across their entire surface and range – sometimes with error margins well under 1% of reading. In practice, achieving consistent accuracy requires good calibration (described below) and quality engineering to minimize any biases. Center of Pressure accuracy is a related spec specific to multi-axis plates: it indicates how precisely the plate can determine the location of the force application. This might be given in millimeters of error. A top-tier force plate will have a very small CoP error (for example, on the order of 1-2 mm or even less) when forces are applied anywhere on the surface. Lower quality or uncalibrated systems might show larger errors, especially near the edges of the plate, which can lead to misinterpretation of how weight is distributed. For applications like balance or gait, CoP accuracy is crucial, as an error of even a few millimeters could alter the analysis of sway or foot placement.

4.4. Crosstalk (Cross-Axis Sensitivity):

Crosstalk is the tendency for a force applied in one direction to cause a false signal in another channel. For example, a pure vertical force might inadvertently produce a small reading in the horizontal force output due to slight mechanical deflection or sensor coupling, or a moment about one axis could induce an error in a force channel. Manufacturers quantify crosstalk as a percentage of the applied load. A good force platform design keeps crosstalk to a minimum (often below 1% or even 0.1% in very high-end models). Minimizing crosstalk is achieved through sensor configuration (e.g., using separate gauge bridges for different axes, or decoupling mechanics) and calibration. Low crosstalk ensures that each force and moment channel predominantly represents the intended measurement axis only, which is important for accurate vector calculations and CoP determination. When comparing force plates, a lower crosstalk spec means more reliable separation of directional forces.

4.5. Drift and Stability:

Especially relevant for piezoelectric systems, drift refers to the gradual change in the baseline output under a constant load. Strain gauge plates have minimal drift (once any thermal effects stabilize), whereas piezoelectric plates will have some drift due to the nature of the charge output. High-quality electronics and insulation aim to give piezoelectric plates a long time constant so that drift is negligible during the typical duration of a trial (several seconds). Nonetheless, users might notice a slow return to zero if a weight remains on a piezo plate or right after removing a load. The system’s stability over time and temperature is another spec to consider. Good force plates are temperature compensated and maintain zero output when no force is present (after taring) over the course of an experiment. If a plate has noticeable zero drift, the software often allows periodic zeroing or requires a baseline measure before/after trials. For long-term measurements, strain gauge systems have an advantage in stability.

4.5. Calibration:

Force plate calibration is the process of adjusting the system output to match known reference forces and moments. Manufacturers typically calibrate force plates at the factory using precision weights and fixtures that apply known forces at known locations. The calibration yields sensitivity factors for each channel and corrects for any cross-coupling. A calibration certificate will specify the error margins after adjustment. Over time and use, the calibration can shift (due to wear, minor structural changes, or sensor aging). Therefore, it is recommended to recalibrate force plates periodically (for example, annually or biennially, depending on usage intensity) or at least verify calibration using known loads. Some labs perform in-situ calibration checks by placing calibrated weights or a loaded test rig on the plate to ensure readings match expected values. Calibration also involves aligning the coordinate system of the plate – making sure that what the plate considers the X, Y, Z directions correspond to the lab’s coordinate frame. Proper calibration is absolutely critical for accurate kinetic measurements; without it, measurements of, say, a 500 N force could be off by a few percent or the calculated center of pressure could be shifted. Advanced calibration procedures (like those following ASTM standards for multi-axis platforms) even map the entire surface of the plate to ensure uniform accuracy at any foot placement.

4.6. Physical Dimensions and Setup:

Force plates come in various sizes and thicknesses. A larger surface (e.g., 60 cm x 40 cm) is easier to step on during gait and can accommodate a full foot comfortably, whereas smaller plates (like 30 x 30 cm or handheld ones) might be used for specific jump tests or under each foot separately. When installing a force plate, setup considerations include mounting it securely and flush with the surrounding floor. In a gait lab, plates are often recessed into the floor and surrounded by material of the same height so that the walking surface is uniform – this prevents subjects from altering their gait to step up or down onto the plate. If a plate isn’t flush, ramps or inserts are used to minimize any step height. The plate should be bolted or fixed firmly to avoid any wobble. Leveling is important – the plate’s top should be level to ensure the vertical axis is truly vertical and there’s no bias in shear readings. Additionally, multiple force plates can be aligned in series or side by side (with accurate measure of the distance between them) to capture consecutive steps or both feet simultaneously; alignment jigs or frames help ensure they are positioned correctly. The system’s wiring and data interface are also part of setup: long analog cable runs should be avoided or carefully shielded to prevent noise; some modern plates use built-in analog-to-digital conversion with a digital output to mitigate signal degradation. Lastly, the environment (floor stiffness and vibration) matters: installing a plate on a solid concrete base yields better results than on a flexing wooden floor. Any floor vibration (from nearby equipment or footfalls) should be isolated if possible, so only the forces from the intended subject are measured.

By considering these technical specifications – load capacity, sampling rate, accuracy, crosstalk, drift, calibration, and setup – practitioners ensure that the force platform system will capture high-quality data suitable for rigorous analysis in biomechanics and sports science. A well-chosen and well-maintained force plate provides reliable ground reaction force measurements that can be trusted for both clinical decisions and performance evaluations.

5. Best Practices for Accurate Force Plate Usage

Using a force platform effectively requires not only good hardware but also proper handling and protocols. Here are some best practices to ensure accurate and consistent results:

• Calibration and Zeroing: Always start by zeroing the force plate output before a measurement session. Taring the plate (recording a zero baseline with no load) removes any small offsets or biases in the system. Ensure the force plate is calibrated according to the manufacturer’s schedule – typically a professional recalibration every year or two keeps the measurements within specified accuracy. It’s good practice to verify the calibration in-house by placing a known weight on the plate (for vertical force) and checking the reading, or using a simple lever setup to apply a known horizontal force if possible. If any channel shows unexpected values (like non-zero when unloaded, or incorrect weight readings), troubleshoot and recalibrate as needed before collecting important data.


• Proper Mounting and Leveling: Install the force plate on a solid, stable surface. If it’s a permanent lab installation, the plate should be bolted down or firmly embedded in the floor, flush with the surface. A wobbly or uneven plate will introduce measurement artifacts and potentially large errors (for example, tilting can cause gravity components to appear as shear forces). Use a spirit level to confirm the plate’s top surface is perfectly horizontal. If using a portable plate on the ground, make sure it’s on a flat, hard surface – avoid thick carpets or mats underneath unless specified by the manufacturer, as these can dampen or skew the force transmission.


• Minimize External Vibrations and Crosstalk: Be mindful of the environment during data collection. Heavy machinery, slamming doors, or even loud impacts on the same floor can cause vibrations that the force plate sensors pick up. Conduct tests in a quiet area if possible, and avoid bumping the plate or its supports. If multiple plates are installed adjacent to each other (for instance, in a gait walkway with two or more plates), ensure they are mechanically isolated so that a force on one plate doesn’t physically jolt the other (some setups use a small gap or rubber isolation between plates). This prevents inter-plate crosstalk. Also, align the plate axes with the laboratory coordinate system and direction of motion (e.g., the X-axis of the plate aligned to the forward walking direction) to simplify analysis and reduce confusion or component mixing in interpretation.


• Warm-Up and Drift Checks: Electronics and sensors can have slight drift as they warm up. It’s often recommended to turn on the force plate system a short while before collecting data (say, 15-30 minutes) to let the amplifiers stabilize thermally. For piezoelectric plates, if doing any static or slow trials, periodically check the zero and re-zero if needed to combat drift. Between trials, you might notice a slow return to baseline after a large jump or impact – give the plate a moment to settle or manually zero it again before the next trial to ensure you start from a clean baseline each time.


• Subject Instructions and Foot Placement: When collecting gait or jump data, instruct participants to step naturally on the force plate without targeting it. In gait labs, an issue can be subjects altering their step length to hit the plate, which can change their natural force patterns. Using multiple embedded plates or having the subject practice walking through without altering stride can help. For jumping or athletic tests, ensure the participant knows to fully contact the plate with the intended foot or feet. A common error is a partial foot contact where, for example, the heel lands off the plate – this will result in incomplete force data (and possibly a sudden drop in recorded force as part of the foot isn’t measured). Encourage a complete foot landing on the plate for valid data. If using two plates (one under each foot), instruct the athlete to distribute their stance so each foot stays on its plate throughout the movement.


• Data Acquisition and Filtering: Use an appropriate sampling rate for the activity and ensure your data acquisition software is configured correctly. Always enable any required anti-alias filtering (usually the hardware does this, but be mindful if you change sampling rate significantly). After collecting data, apply filters judiciously – for instance, a low-pass filter can remove high-frequency noise, but if set too low it might also smooth out real impact peaks or rapid force changes. Many gait analysis protocols use around 50-100 Hz low-pass on force data to remove noise, but this depends on the nature of the movement. For jump and impact analyses, one might keep a higher cutoff to preserve the sharp changes. It’s best to follow established guidelines or the manufacturer’s recommendations for filtering.


• Avoiding Measurement Artifacts: Ensure the force plate is not touching any other surfaces except its mounting points. Sometimes, debris or a cable caught under the plate’s edge can create a secondary path for force, altering readings. Keep the area around and under the plate clear. If the plate has an internal crosstalk correction or specific calibration matrix provided, make sure to use it in the software that processes the data – neglecting manufacturer-provided calibration factors can lead to significant errors in calculated forces or CoP. Also, if using multiple force plates, confirm that their coordinate frames are defined consistently (especially if they’re rotated relative to each other) so that combining data from two plates (for example, summing forces from left and right foot contacts) is physically meaningful.


• Regular Maintenance: Treat the force plate like a laboratory instrument. Periodically inspect it for any mechanical damage, loose bolts, or worn sensor connections. If the top surface has a covering or coating, keep it clean and free of substances that might alter friction (e.g., dust, water, or athletic chalk should be cleaned off). Check the cables for any kinks or breaks which might introduce noise. If the system starts to show signs of noise or spikes unrelated to actual forces (e.g., jittery baseline), it could indicate a grounding issue or electronic problem – address these promptly by consulting the manufacturer or a technician. Keeping a log of calibration and any incidents (like someone dropping a heavy object on the plate outside of normal use) can be helpful for knowing when to service the device.



By following these best practices, users can ensure they gather high-quality, reliable force data. In research and high-performance sports settings, small errors can lead to big misinterpretations, so careful usage of force platforms is essential. When properly set up and used, a force plate will yield precise insights into human biomechanics, making it a powerful tool for engineers and practitioners analyzing gait and athletic movements.

6. Applications in Biomechanics

Gait Analysis

Force platforms are integral to gait analysis, providing quantitative data on how forces are applied during walking and running. In clinical and research gait labs, force plates are typically embedded in a walkway. As a subject walks across, each foot contacts a plate for at least one step, and the plate captures the full ground reaction force for that step. By synchronizing force plate data with motion capture of the limbs, biomechanists can perform inverse dynamics: calculating joint moments and forces for the ankle, knee, and hip throughout the gait cycle. This is invaluable for diagnosing gait abnormalities, planning treatments (such as in orthopedic or neurological rehabilitation), and evaluating outcomes (e.g., how surgery or therapy changed a patient’s walking mechanics).

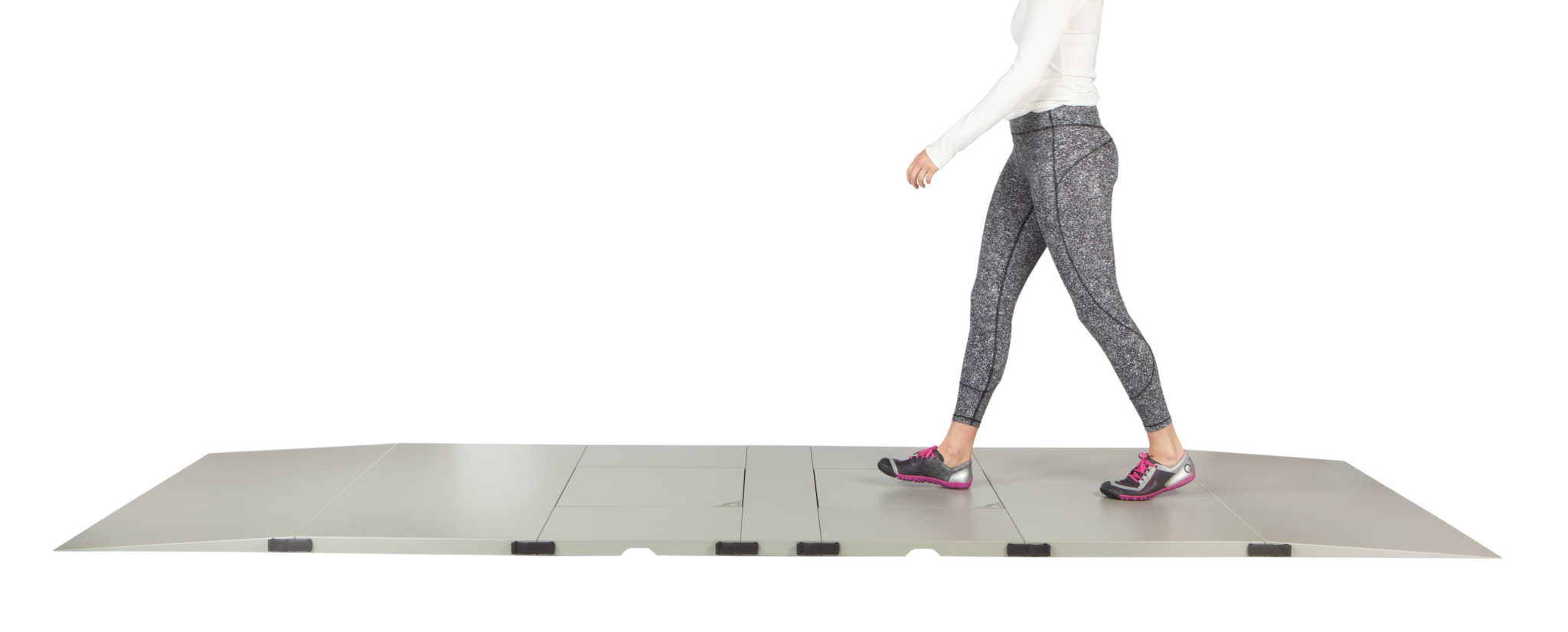

ACG-O, AccuGait Optimized Gait and Balance Platform

Some key gait analysis uses of force plate data include:

• Ground Reaction Force Patterns: The characteristic force vs. time patterns in walking (or running) are used as benchmarks. Deviations from the normal patterns can indicate issues. For instance, a very prolonged or elevated first peak in vertical GRF might suggest a hard heel strike or lack of knee flexion (potentially pointing to a stiff gait or discomfort). A missing second peak could indicate limited push-off power (maybe due to calf muscle weakness or pain in the forefoot). Therapists and researchers examine these nuances to understand a patient’s strategy.


• Loading Symmetry: With force plates, it’s straightforward to compare forces between left and right steps. In healthy gait, people typically have consistent force profiles on both sides. After an injury (like a knee or ankle injury), individuals often unconsciously offload the affected limb. Force plate data can quantify this, for example, showing that the peak force on the injured side is only 80% of the uninvolved side. This helps in assessing the severity of the limp and tracking progress in rehabilitation (one goal might be restoring symmetry in weight-bearing and push-off force).


• Center of Pressure Trajectory: During stance, the force plate can track how the center of pressure moves under the foot. In normal gait, the CoP enters near the heel, travels forward and slightly lateral (as weight transfers along the foot arch), and exits at the big toe during push-off. An abnormal CoP path could indicate issues like a person avoiding putting weight on a certain part of the foot (maybe due to pain or deformity). For example, a diabetic patient with a sore on the forefoot might shift the CoP quickly to the medial side to avoid pressure on that area. CoP data is also used in gait research to understand foot rollover mechanics and balance – a very erratic CoP path might imply instability during stance.


• Joint Force and Moment Analysis: The ultimate application in gait labs is computing joint loads. Combining the ground reaction force from the plate with limb kinematics (positions/angles) allows calculation of internal forces like the Achilles tendon force or knee joint compressive force using models. The accuracy of those calculations depends on accurate force input from the plate. Thus, force plates enable insights into things that cannot be measured directly, like how much force the quadriceps must generate during walking, or how the joint loading changes with different gait strategies (e.g., using a cane, wearing different shoes, etc.).

• Running and Other Locomotion: While many gait labs focus on walking, force plates are used for running analysis as well. In running, the GRF curve differs (often a very high impact peak in a short time). Multiple plates in series allow capturing several steps at running speed. Researchers study how changing running form or footwear affects the impact forces and loading rates, which are linked to injury risk (e.g., high impact forces and quick loading rates have been associated with stress fractures or knee pain). Force plates thus contribute to sports science in terms of understanding running biomechanics.



In clinical settings, all this information guides interventions. For example, if a gait analysis shows abnormal force distribution due to a leg length discrepancy, an insert or shoe lift might be prescribed. If it shows a patient isn’t pushing off properly with a prosthetic foot (low second peak force), adjustments can be made in prosthetic tuning or physiotherapy to improve that.

Sports Performance

In sports science and athletic training, force plates have become increasingly popular for assessing and enhancing performance. They provide direct measures of an athlete’s force production capabilities, balance, and explosive power. Some key applications in sports performance include:

• Jump Testing and Power Assessment: One of the most common uses of force plates is measuring vertical jump performance. By capturing the force-time curve of a jump, coaches and sports scientists can compute jump height (via impulse or flight time methods), peak force, peak power, rate of force development (how quickly force is generated), and explosive strength deficits. For example, in a countermovement jump (CMJ) test, the force plate reveals how an athlete dips down (eccentric phase) and then explodes upward (concentric phase). A higher peak force and a steeper force rise usually correlate with a better jump. Force plates also allow calculation of power by multiplying force and velocity (with velocity derived from integrating acceleration). This is more accurate than simply using jump height because it captures the athlete’s performance through the entire push-off. Coaches use these metrics to track training progress, compare athletes, and identify weaknesses (e.g., an athlete might have good maximal force but a slow rate of force development, suggesting a need for plyometric training).


• Balance and Stability Training: Force plates can perform balance assessments, where an athlete stands (on one leg or two) as still as possible, and the plate measures the sway (the CoP moving around). From this, metrics like sway area, path length, and variability are obtained, which indicate postural control ability. This is useful for evaluating athletes after concussions (balance is often affected) or monitoring improvement in balance for sports that require agility and single-leg stability (like gymnastics or skiing). In rehabilitation, an athlete recovering from a lower limb injury might do balance exercises on a force plate to quantify improvements in stability over time. Additionally, balance tests like the BESS (Balance Error Scoring System) can be instrumented with a force plate to get objective data rather than just subjective scoring of balance errors.


• Left-Right Asymmetry and Bilateral Force Distribution: Many athletic movements involve both legs, and force plates (especially used in pairs) can detect imbalances between the limbs. For instance, in a bilateral squat jump test using two separate force plates (one under each foot), the system can show if the athlete is unconsciously favoring one leg – perhaps pushing 55% with the right and 45% with the left. Similarly, in landing, one leg might take more load. Identifying these imbalances is key in injury prevention and rehab; coaches want athletes to be as symmetric as possible unless the sport has a specific asymmetry (like a fencing stance). During strength training, athletes and trainers can use this feedback to correct technique (ensure equal drive through both legs). In the case of injury, seeing the asymmetry reduce over rehab is a sign of regained confidence and strength in the injured limb.


• Dynamic Movement Analysis: Beyond jumps, force plates are used for analyzing movements like sprint starts, cutting maneuvers, or even upper-body pushes (some setups have force plates mounted on walls or attached to measure hand forces for tasks like push-ups or punching). For sprinters, a force plate embedded in starting blocks can measure the force and impulse generated at the start, which correlates with acceleration. In change-of-direction drills, stepping on a force plate can reveal how much lateral force an athlete generates to redirect their motion. These insights help in technical coaching – e.g., teaching an athlete to apply force more horizontally for acceleration, or to increase their impulse in a cut for quicker direction change.


• Monitoring Fatigue and Readiness: Because force plate metrics are sensitive to neuromuscular performance, coaches use them to monitor athletes over a season or training cycle. A decline in jump performance or a change in force-time characteristics (like a slower rate of force development or a prolonged time to peak force) can indicate fatigue or insufficient recovery. By periodically testing athletes (say, doing a morning jump test), performance staff can adjust training loads if they detect signs of fatigue or decreased explosiveness, thereby preventing overtraining. Some advanced programs use daily force plate jumps as part of their athlete monitoring systems.


• Technique Improvement and Injury Mechanism Studies: In sports like weightlifting, force plates underfoot can show how an athlete shifts weight during a lift (e.g., moving from heels to toes in a snatch). Coaches analyze these force patterns to tweak technique for better efficiency and balance. In sports science research, force plates are used to study the forces involved in cutting, jumping, or landing techniques that may lead to injury (like ACL tears). By understanding the forces and how athletes can reduce harmful loading (e.g., training to land softer with more knee flexion to reduce peak impact force), preventive training programs can be developed.


• Equipment and Footwear Testing: Sports equipment companies and researchers also use force platforms to test how different shoe designs or surfaces affect performance. For instance, comparing running spikes vs. trainers on a force plate might show differences in impact force or push-off mechanics. Likewise, testing various landing mats or turf surfaces with athletes performing movements on a force plate can quantify how forces differ, informing safer or more effective designs.



Overall, force plates in sports performance provide a window into the athlete’s interaction with the ground, which is where the action originates for almost all movements. By leveraging the detailed force and pressure data, practitioners in sports can fine-tune training programs, correct imbalances, reduce injury risk, and ultimately improve performance. The use of force platforms has expanded from labs into everyday training facilities with the advent of portable plates and user-friendly software, reflecting their value in the sports domain. Whether it’s a team sport athlete doing a jump test or a biomechanist conducting a complex movement analysis, force plates have become a staple tool for measuring and enhancing athletic performance in a quantifiable, scientific manner.
