Leak and Flow Testing Systems from ForTest
The established range of ForTest products include the “Basic Absolute“ Pressure Decay Leak Testing, an “Advanced Absolute” Pressure Decay Leak Testing, and an “Advanced Differential” Pressure Decay Leak Testing, (using a reference volume), as well as a “Flow Testing” System.
The latest development by ForTest is their “Advanced Dual Absolute” Pressure Decay Leak Test System. This utilizes a reference volume, however the cycle time is not extended, as the testing is performed with 2 pneumatic circuits. This provides the stable readings over the course of the cyclic operation.
The experienced team at A-Tech Instruments Ltd. can help to identify the correct solution for your leak test requirements.
These systems use high quality, zero leak valves to create a robust and durable system. Different configurations are suitable for different types of applications.

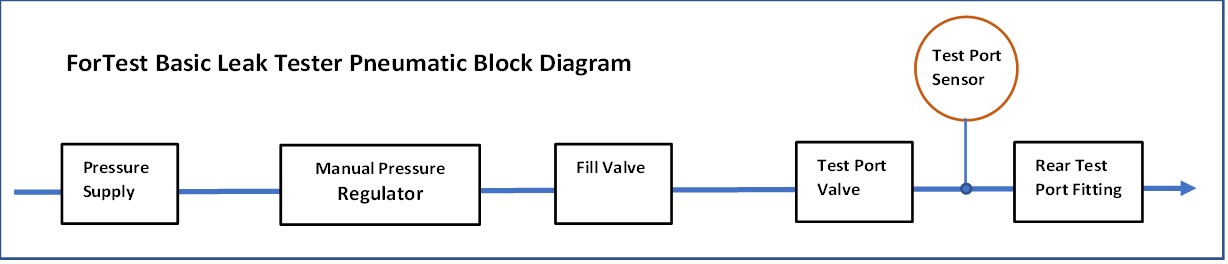

“ Basic “ Absolute Pressure Decay Leak Testing
- Manual Pressure Regulation
- Multiple Programs for different parts
- Sequence – Fill to Test Pressure, Stabilize, Measure Absolute Pressure Decay, calibrated leak rate
- Data Collection by Serial Number, using a PC or PLC ( optional Field buses )
https://www.a-tech.ca/Product/Series/2568/T6990_Basic_Absolute_Pressure_Decay_Leak_Testing/?tab=1

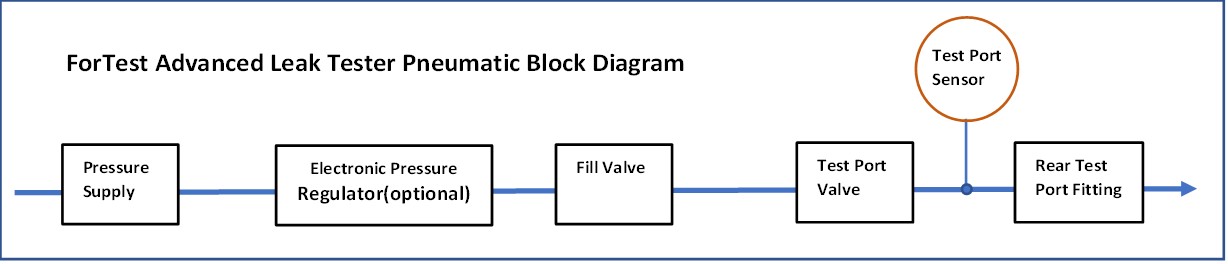

“Advanced” Absolute Pressure Decay Leak Testing
- Electronically Controlled Pressure Regulation
- Multiple Programs for different parts, with the possibility of different pressures
- Sequence – Pre-Fill Pressure, Reduced to Test Pressure, Stabilize, Measure Absolute Pressure Decay
- Data Collection by Serial Number, using a PC or PLC ( optional Field buses - Ethernet IP, etc.)
https://www.a-tech.ca/Product/Series/2569/T8990_Advanced_Absolute_Pressure_Decay_Leak_Testing/?tab=1

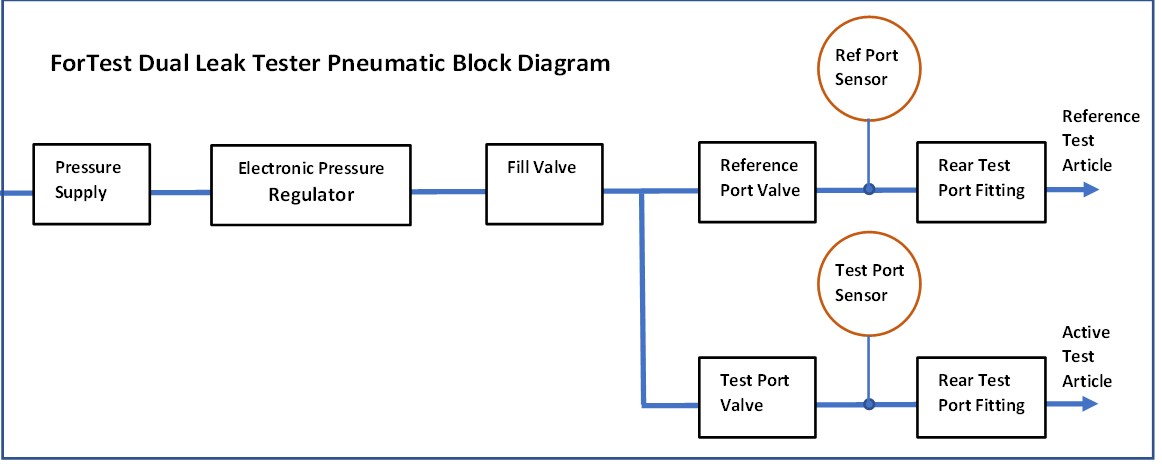

“Dual” Absolute Pressure Decay Leak Testing
The new Dual Absolute technology makes it possible to eliminate the disadvantages of a classic differential system. Thanks to the new Dual Absolute technology, ForTest has combined the simplicity of a classic absolute decay system with the precision and sensitivity of a differential system, bringing leak testing instruments to a level never seen before.
The new algorithms and measurement hardware eliminate typical defects in a differential system, such as differences in stabilization between the test part and the reference sample.
The new range of instruments is able to work in 3 different ways: Pure Differential, Dual Absolute and Central Zero. The “Zero Center” technology allows for testing of two components simultaneously, doubling productivity
https://www.youtube.com/watch?v=Ha7-Bx1MJbE
- Electronically Controlled Pressure Regulation
- Multiple Programs for different parts, with the possibility of different pressures
- Sequence – Pre-Fill Pressure, Reduced to Test Pressure, Stabilize, Measure Absolute Pressure Decay
- Dual Port for Test Article and Reference Volume (Master Part)
- Data Collection by Serial Number, using a PC or PLC ( optional Field buses, Ethernet IP, etc. )
https://www.a-tech.ca/Product/Series/2570/T8090_Dual_Absolute_Pressure_Decay_Leak_Testing/?tab=1

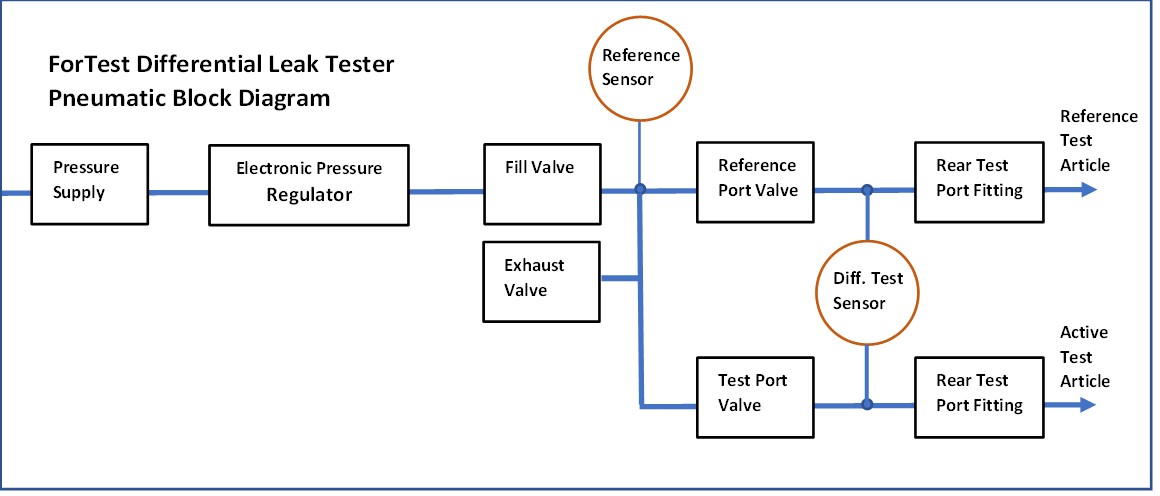

“Advanced” Differential Pressure Decay Leak Testing, using a reference volume
- Electronically Controlled Pressure Regulation
- Multiple Programs for different parts, with the possibility of different pressures
- Sequence – Pre-Fill to Balance Pressure, Reduced to Balanced Test Pressure, Stabilize, Measure Differential Pressure Decay
- Dual Ports for Test Article and Reference Volume (Master Part)
- Data Collection by Serial Number, using a PC or PLC ( optional Field buses, Ethernet IP, etc. )
Application Examples
With applications in the Automotive, Medical, Consumer Products & Aerospace Industries, Fortest Leak testers have a comprehensive line of leak test solutions from economical absolute pressure decay to high level Flow testing. Advances in Leak Test technologies have allowed for more accurate, faster, more affordable solutions. In addition, the Graphical User Interface has advanced significantly providing a touch screen display, that is informative, easy to navigate and provides ease of setup.
From miniature Filters & Regulator Valve testing to large Engine Blocks / Heads and Fuel Cell / Tank systems, Fortest can supply the expertise and hardware for a robust solution.
ForTest’s General Leak Tester Features:
- Measurement resolution 0.1 Pa
- Test pressures up to 8 Bar
- Electronic pressure regulation, optional
- Rugged colour touchscreen interface
- Intuitive menu system
- Intuitive PC software
- Multiple Test programs
- Sequential test operations
- On board USB port for data storage
- RS232 and RS485 communications to bar code scanners and printers
- Optional Ethernet IP communications
T6990 series Pressure Decay Tester T8990 series Pressure Decay Tester T8700 series Flow Tester
Custom Leak Test Fixtures by A-Tech Instruments
As a value-added distributor, A-Tech Instruments Ltd. offers the capability to build custom manual or automatic leak test fixtures to ensure the sealing and integrity of various parts. Our tailored solutions meet the unique requirements of each application, providing robust and reliable leak testing systems that enhance quality control and safety.
Case Study: Innovating Leak Testing System for Battery Covers
Leak testing for battery covers is crucial in ensuring the longevity and safety of batteries, especially in applications such as electric vehicles (EVs) where performance and reliability are paramount. Proper sealing of battery covers prevents potential leaks that could lead to performance issues or safety hazards. Building a reliable and effective sealed fixture is essential for accurate and efficient leak testing.
Understanding the importance of this, A-Tech Instruments developed an automated system to test the seal integrity of battery covers used in electric vehicles (EVs). This system was designed to streamline the testing process and deliver precise, reliable results.
Using a sophisticated setup involving a PLC-controlled environment, the system featured advanced T8990 leak testers capable of handling multiple tests simultaneously. The inclusion of a bank of valves allowed for precise airflow control, crucial for accurate leak detection.
The process begins with the operator placing the battery cover onto a custom-designed fixture that ensures it is securely held in place. With a simple push of a button, the automated system engages, clamping the cover and initiating the testing sequence.
This system not only performs initial group tests to quickly identify any potential leaks but also has the capability to focus on specific areas if a leak is detected. By streamlining both the overall and targeted testing processes, the system efficiently pinpoints issues without the need for extensive manual intervention.
Key features of this system include its automated clamping mechanism and the ability to simultaneously test multiple vents, enhancing both the speed and accuracy of the testing process. The data collected is integrated seamlessly, providing a comprehensive overview of each test, and ensuring high-quality standards are met.
At A-Tech Instruments, we are dedicated to providing innovative solutions for complex applications. Whether you need custom leak test fixtures or advanced testing systems, we are here to help you achieve the highest levels of quality and reliability. Contact us about your application.
