Integrated Assembly Servo Press

Coretec's Assembly Servo Press is a cost effective solution with superior force & displacement control, built-in monitoring & data collection. Next-gen Assembly Servo Technology is now in reach, so improve production efficiency and make less scrap

The Best Value Servo Press on the Market just got Better

Now with even more force ranges, speeds & special features!

Minute to Minute – Fast, Efficient & Precise

Hour to Hour – Ease of Data Storage, Analysis & Reporting

Day to Day – Reduced Energy & Maintenance

Year to Year – Durability and Longevity


What Makes Coretec Servo Presses Different?

1. Control Capability that Competes with The Industry Leaders

Load Repeatability of 0.5% and Positional Repeatability of 10 microns under Identical Load is right in line with the Industries best.

2. Programming that's the Perfect Balance of Simple and Versatile

Coretec's Auto-Generation Software Provides a Visual way to Program the Servo Press that's simple and easy to use.  The simple to understand program code is created, with comments to explain each step, yet the user still has the ability to edit the code as needed for the application.  See below for more details!

3. Competitive Pricing that's Hard to Beat

Lower cost than equivalent competitive systems.  Efficient Design = Cost Savings!

Our Efficient Design and Grassroots Marketing Approach means we don't have huge marketing budgets to support.  In the end, this means savings for you and your.  Rest assured that our network of local representatives across North America and Mexico are dedicated to supporting your applications as needed.

4. The Family has Grown to Meet Customers Demands

Now with even more Force Ranges, Stroke Options and Special Features like Holding Time & Clean Room Qualifications.


Proudly Manufacturing Parts for the Following Companies

Coretec Servo Press Tools and Controllers in Force ranges from 2kN up to 200kN & Displacement ranges of 100mm to 500mm

The Compact, Rugged Tool Design and Integrated Control

Compact Design - The design combines mechanical strength with the compactness of a hydraulic cylinder.

Space-saving design and minimum mounting footprint that allows for multiple press operations, in close proximity to each other. Force ranges start at 2000 N ( 450 lbs) and go up to 200,000 N ( 45,000 lbs) and tool strokes from 100 mm up to 400 mm.

Intelligent Functionality - The press tool is equipped with memory enabling it to store items such as model numbers and load values in a self-memory, and thereby simplifying controller pairing and setup. The diverse control capability can be optimized to reduce cycle time, improving productivity, improve your product quality, reduce the scrap assemblies, reduce the operating costs and reduce the impact on the environment.

Self Maintenance - This Press Tool / Controller performs monitoring of operation counts, thermal loading and travel distances to maintain the Tool’s endurance. Alarm conditions insure operation within the designed performance criteria. This eliminates excessive force conditions, thermal stress, etc., providing the process with a high reliability, minimum down time and optimized cycle time.

Durability and Long Life – Coretec uses the highest quality Ball Screws, Planetary Gears, integrated Strain Gauge Force Sensors and Guided Anti-rotational Rams, in their tools, providing the high standard of durability necessary for long life at a high performance level. They utilize Roller and Ball Thrust Bearings that are rated for High Speed applications with High Forces.

Versatility - The range of Servo Press Tools with Force Ranges starting at 2kN and intermediate ranges up to 200kN, provides application flexibility. Most of the Ranges are offered with 100mm, 200mm, and 350mm strokes. There are specially build Tools for up to 400 mm travel for some Servo Presses. In addition, there are Clean Room options on some Tools.

Clean / Green Press Operation - The reduced operating costs is a result of a higher efficiency as the use of electrical energy Pressing or Joining Operations only occurs when the Tool is activated, compared to a large pneumatic or hydraulic system, that have operating pumps or compressors running continuously. In addition the reduction in mechanical support equipment provides a cleaner operating environment for your staff, as well as reducing the diversity of their activities of the maintenance staff, by eliminating the hydraulic equipment and reducing the demand on the air supply.

High Speed and Flexible Data Networking

Traceability – Each Servo Press Tool has a memory that includes the Force Sensor Calibration and characteristics for ease of interchangeability. The operating characteristics of each Servo Press Tool, is established with the selection of the Tool model and visible for the operations & maintenance staff.

Multi-Program/Parameters - Major parameters within programs can be changed through a PLC interaction. Creation of a single program allows for handling variations between multiple product models.

PLC Communication – Optional Fieldbus modules provide compatibility with Ethernet IP, CC-Link, DeviceNet, ProfiNet, Profibus and other applications. Supporting PLC data storage of numerical results in addition to basic input/output operations. Communication between the Servo Press Controller and the PLC can provide Sequential Program Selection, Cycle Variables / Parameters, Dynamic or Static Data Collection, Process Trending and Complete Control.

Database & LAN Integration – The Ethernet communication port with the standard software provides Data Base and File Server connectivity, as well as, Data Review and Reporting. Customized applications using SQL and MS-SQL data formats can be provided, as well as, integration assistance on a case by case basis.

Simple Programming, Extensive Control & Analysis Functions

Simple Program Development – An Automatic program creation tool is included as standard on PC software application, allowing for complete creation of general-purpose programs with all the basic program settings. Easy to use, setup and run. Manual Operation is also available with a HMI Panel.

Wide Range of Control Functions - A specialized language for the servo press has been developed that permits description of complicated motions equivalent to robotic control systems. Ramp Up / Ramp Down Acceleration, Double Insertion Part Present Detection, Press and Hold, Repeat Press, Tension Retraction Detection, … are just a few of the special features that are available within the Controller’s Functions.

Numerous Evaluation Methods - Load, Stroke and Load Rate values are evaluated according to final and peak points, as well as, numerous points at specific to your Press Operation. A zone evaluation function and graphical display is also standard.

View Programming Videos on the CPS & WPS Servo Press Controllers.


Ask about our complete Manual Press Stands!


Press Station Control Package               C Frame Press Stand example                      4 Post Press Stand (MS100-200) Servo Press


Control Capability at a Fraction of the Cost

In manufacturing automation there are three keys to better processes: Speed, Control and Cost. The process of press fit assembly and monitoring has evolved considerably in the last few years. Today it is not good enough to press to interference parts together and hope or assume that the are assembled correctly.

Traditionally a pneumatic or Hydraulic cylinder has been used to provide the force required to assemble parts. These systems are economical and can be found in almost any assembly plant. They are easy to implement and although they require ongoing maintenance, most facilities have the in house resources to handle it.

The addition of a load cell and a displacement sensor to the ram connected to a signature analysis system such as the Burster Digiforce 9310 or 9307 allow for measurement of the process. The cost of a cylinder, hydraulic power pack, tooling, sensors and instruments have been the most economical solution for this type of assembly.

There is however, a severe limitation to these presses.  They do not have the ability to control force, position and speed in real time.  When a pressure is set, the press will act until it reaches a hard stop, at which point it will bottom out to the force that is set by the pressure.

In order to improve the process, we need better tools.

Coretec is revolutionizing the industry, providing the control and monitoring capabilities needed to increase efficiencies, at a cost that rivals traditional servo presses and monitoring solutions.

Superior Control Starts with a Smart Design

Ball screw servo presses use an electro servo motor coupled to a ball screw mechanism, to translate rotation to linear force.  Virtually all electric motors have built in encoders, allowing them to control based on displacement and speed.  However, controlling only on displacement and speed is missing half of the equation for controlling the assembly process, we need to know the forces associated with these processes, in order to accurately judge them as pass/fail.

The Coretec Integrated Servo Press is supplied with a factory integrated load cell and encoder, which allows us to provide real time feedback to the controller monitoring the process.

It's time to take control of your assembly process.  Simply monitoring is not enough.

The issue with most servo presses that have Force, Displacement and Speed control is the high capital cost of the press itself.   The difference is in the simple and efficient design which features Coretec's patented planetary gear pack and custom integrated load cell.

Not only do Coretec servo presses offer superior control, energy savings, space savings and less maintenance, we are now able to determine in-process when there is an anomaly and stop on a dime to avoid making unnecessary bad parts.

System Overview

  • Tool with Load Cell, Encoder
  • All Interconnecting Cables
  • Controller with Digital I/O, Profinet, EthernetIP, DeviceNET, etc.
  • Configuration and Data Collection Software
  • Optional PC for Data Collection of up to 32 Presses

CS & GS System Overview (5kN to 80kN Force Capacity)                           MS System Overview (100kN and 200kN Force Capacity)


Intelligent Tool Design

Our Press Tool is supplied as part of an integrated system.  It arrives already assembled, so there's no need to piece a whole bunch of parts together.  We've also integrated the amplifier and chip so the Controller knows what Tool is connected and there is no calibration needed.

Cut Down Your Integration Time.  Maintain Less Parts.

Compact Controller Design

  • PC independent Control and Evaluation
    • PC is for Data Collection
    • PLC provides Control and Data Collection of key parameters
  • “Knows” which Servo Press Tool is connected
  • Power Requirements
    • 220 VAC 3ph for motor
    • 24 VDC supply for controller
  • Comprehensive PLC Interface Options
    • Digital I/O, EthernetIP, Profibus, Profinet, CC-Link DeviceNet
    • Key Parameters can be read/set PLC via Fieldbus Comm Port
      (i.e. live load, peak force, final stroke, part serial number, program limits, pass/fail criteria, etc.)

Simple Programming

With all this advanced functionality, ease of programming is a legitimate concern.  The Auto Program Generation function in the included software provides a visual method of generating programs and covers most applications.

Simple pressing applications can be configured in under 5 minutes, but you still have the ability to do custom routines using timers, handshaking, I/O, math, relative positions, etc.

Auto Program Generation: Where Capability and Simplicity Meet

Define your approach speed, contact position, press fit, final force, positions, etc. using the graphical interface and SP Configurator creates the programs for you.


  • Stroke Target
  • Force Target
  • Dwell at end of stroke
  • Constant Load Pressing
  • Backlash Inspection
  • Double Taps
  • Relative Position
  • Covers most applications, yet allows custom programs.


Instruction Videos on the CPS & WPS Servo Press Controller Programming.

Signature Analysis

Having accurate control is a good starting point, but it isn't enough to meet today's rigorous quality control demands.  These days most assembly processes require have Force vs. Displacement Monitoring.

A Better Process need superior control and 100% process monitoring

Dial in, Drag and Drop Interface allows you to:


  • Limits (e.g. Peak Force, Final Stroke, User Definable, etc.)
  • Up to 32 Zones (Tolerance Envelopes)
  • Up to 4 Frames (Windows)

Plug and Play Data Collection

Gone are the days where quality is left to chance, modern manufacturing requires 100% data collection. Coretec's simple to use software allows you to autonomously collect numerical and graphical data from up to 32 presses via PC Software, using standard Ethernet TCP/IP and standard windows PC.

Model and serial numbers can be written over the PLC interface (Profinet, EthernetIP, DeviceNET, etc.) to a specific press and archived with the data by the software. It automatically receives the data from all of the connected controllers, regardless of the order and frequency.

Part Tracking is here to stay, it might as well be easy


Pressing Rotor into Pump Assembly

Here we are pressing a shaft into a rotor housing.  Notice how the gripper positions the shaft and the press pauses when it comes to touch it.  The press is checking the part in real time to see if it is too loose or too tight.  After the press communicates this to the PLC, the PLC retracts the gripper before the press finishes the part. This demonstrates some of the handshaking capabilities, as well as the value of live feedback.

Know a bad part ahead of time, and don't bother making it.

Suspension Bushing Press

One of the most common applications, a bushing press for suspension control arms.

Let us bring you tomorrows technology, at today's budget.

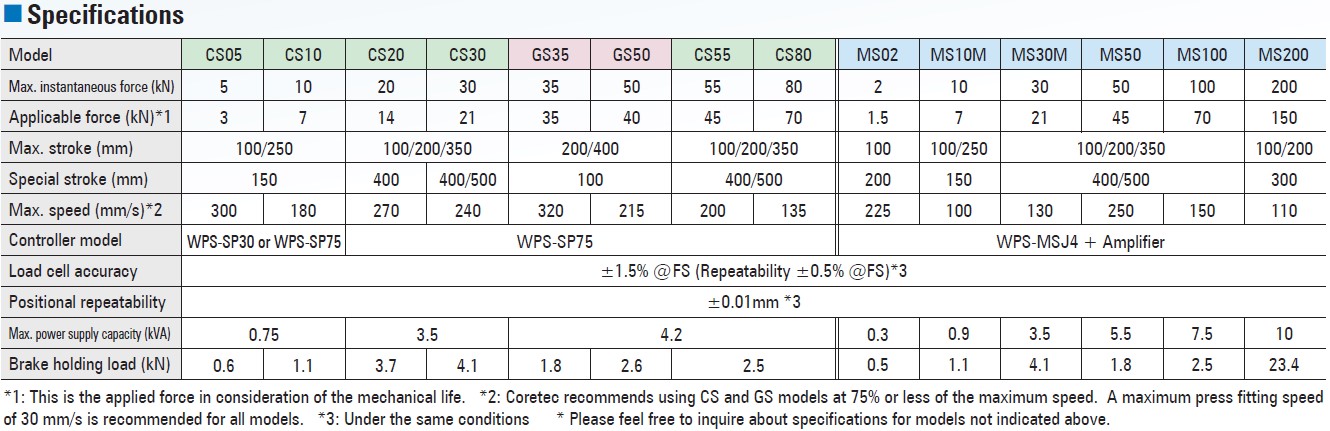

Press Tool / Model Specifications

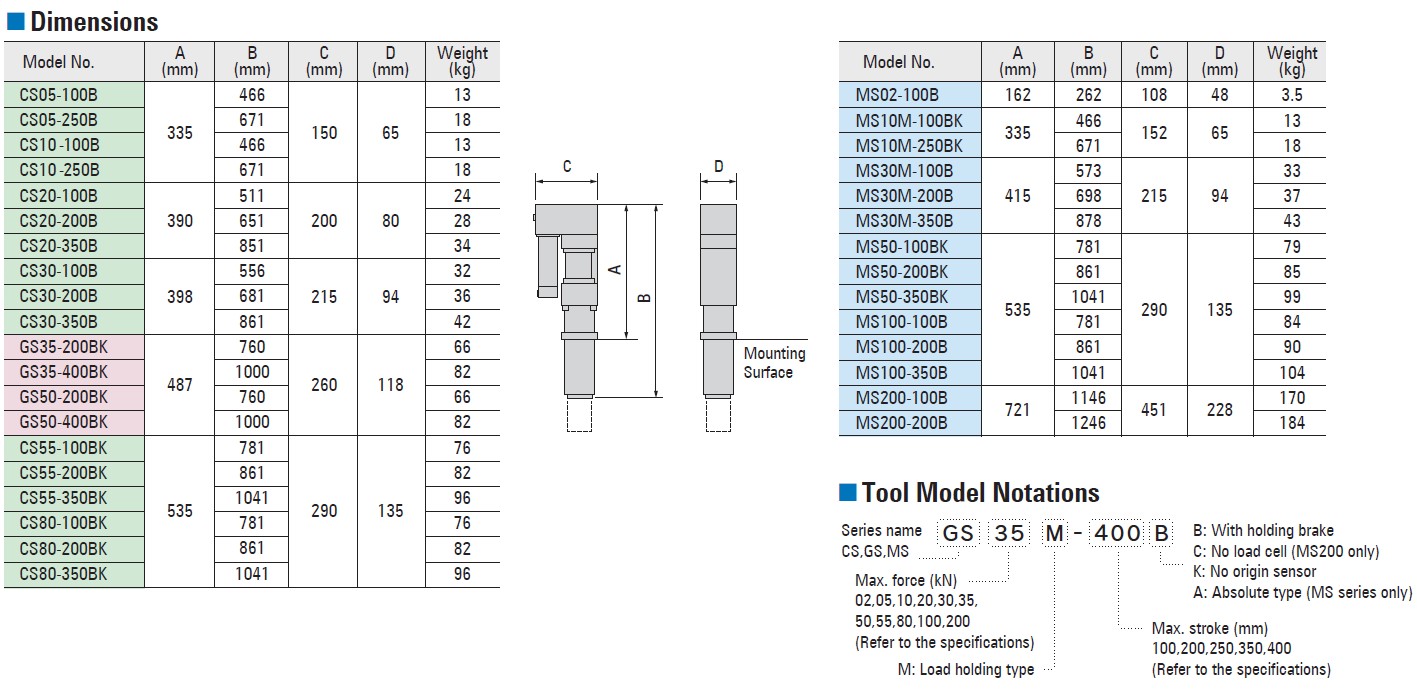

Press Tool / Model Dimensions
