EMG, Inertial, and Integrated Systems in Biomechanics

1. Introduction

Biomechanics applies mechanical principles to biological systems, focusing on understanding how muscles, joints, and bones generate and respond to forces during movement. Accurate measurement of muscle activity and motion is fundamental for advancing sports performance, improving clinical diagnostics, guiding rehabilitation strategies, and optimizing ergonomic environments.

Electromyography (EMG), Inertial Measurement Units (IMUs), and integrated biomechanical systems form the core technologies enabling modern biomechanical analysis. EMG measures the electrical signals produced by muscle fibers during contraction, providing insight into neuromuscular function and coordination. IMUs track movement dynamics by capturing linear acceleration, angular velocity, and spatial orientation across three axes. Integrated systems, combining EMG, IMUs, and often additional sensors, synchronize these data streams within dedicated software platforms to offer a comprehensive, multi-modal view of human movement.

EMG signals are inherently complex, reflecting not only muscle activation but also the intricacies of neuromuscular control. Because EMG captures the sum of overlapping motor unit action potentials and can be affected by tissue conductivity and ambient noise, high-fidelity acquisition and processing are essential. Integrated systems address these challenges through advanced hardware design and software-based signal conditioning, ensuring accurate, reliable data for biomechanical assessment.

Thanks to their portability, real-time capability, and non-invasive nature, EMG Inertial & Integrated Systems are used in both laboratory and real-world settings. They have become indispensable tools across biomechanics, clinical rehabilitation, sports science, human-machine interface development, and ergonomics, offering detailed insights that drive performance optimization, injury prevention, and recovery strategies.





2. Electromyography (EMG) in Biomechanics

2.1 Definition and Principle of Operation

Electromyography (EMG) is the technique used to measure and analyze the electrical signals produced by skeletal muscles during contraction. These signals originate from motor unit action potentials, which are the result of nerve impulses stimulating muscle fibers. EMG provides crucial insights into neuromuscular function, coordination, and muscle fatigue, making it a core tool in the study of human biomechanics.

The fundamental principle of EMG operation involves detecting voltage differences on the skin surface or within the muscle tissue caused by muscle fiber depolarization and repolarization. In practice, electrodes—either placed on the skin or inserted into the muscle—capture these electrical potentials. Once detected, the signals undergo amplification to enhance their strength, filtering to remove unwanted noise, and analog-to-digital conversion to allow detailed computer-based analysis.

A typical EMG system operates through several key stages:

• Signal Detection: Electrodes capture tiny voltage changes produced during muscle contractions.
• Amplification: Since the raw EMG signals are very small, amplification ensures they are strong enough for processing without distortion.
• Filtering: Bandpass filters remove low-frequency motion artifacts and high-frequency noise, typically preserving signals in the 10 Hz to 500 Hz range for surface EMG.
• Digital Conversion and Processing: High-resolution analog-to-digital converters digitize the signals, enabling sophisticated analyses like rectification, smoothing, and frequency domain evaluation.

Signal quality in EMG is influenced by multiple factors, including electrode placement, skin preparation, inter-electrode distance, and the physiological state of the muscle. In integrated biomechanical systems, EMG data is often synchronized with inertial and kinetic measurements, allowing researchers to correlate muscle activation patterns directly with joint motion, force production, and overall movement dynamics.



2.2 Types of EMG and Sensors

EMG recordings are generally classified into two main types based on the method of signal acquisition: Surface EMG (sEMG) and Intramuscular (Needle/Fine-Wire) EMG.

Surface EMG (sEMG)

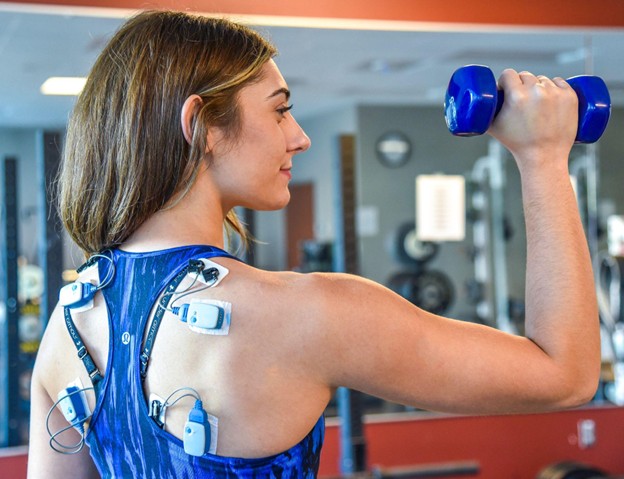

Surface EMG is a non-invasive method where electrodes are placed on the skin directly above the muscle of interest. These electrodes detect the summed electrical activity of numerous motor units within the muscle. Surface EMG is particularly suited for studying superficial muscles and is widely applied in areas such as sports performance analysis, clinical rehabilitation, ergonomic assessments, and real-world motion studies.

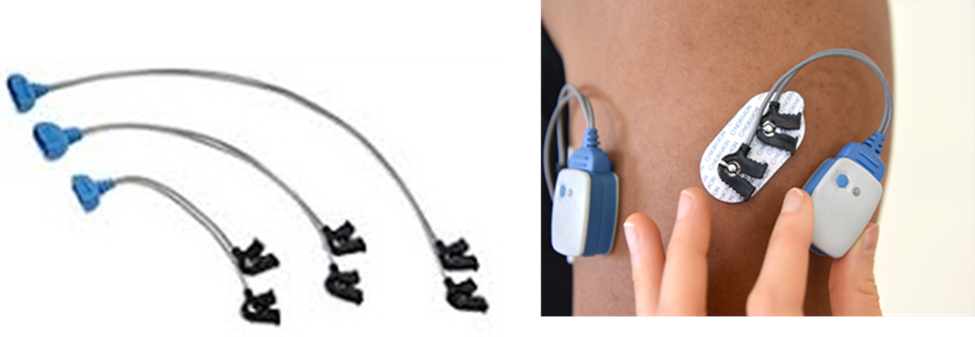

Typical surface electrodes are disposable adhesive pads made of silver/silver-chloride (Ag/AgCl), often coupled with conductive gel to enhance electrical conductivity. Proper skin preparation, including cleaning and mild abrasion, is essential to reduce impedance and ensure signal clarity.



Advantages of Surface EMG:

• Non-invasive and painless, ideal for frequent use, extended monitoring, and studies requiring natural movement.
• Quick setup and capable of monitoring multiple muscles simultaneously, supporting dynamic and large-scale assessments.
• Reliable capture of activation timing, muscle coordination patterns, and fatigue states without the complications associated with invasive procedures.
• Particularly well-suited for both laboratory-controlled studies and field-based applications, enhancing flexibility and comfort for subjects.

Given its broad utility, reliability, and user-friendly application, surface EMG has become the preferred solution for many biomechanical investigations and practical implementations.

[Explore our Surface EMG Systems here.]



Intramuscular (Needle/Fine-Wire) EMG

Intramuscular EMG involves inserting electrodes directly into the muscle tissue. This technique records electrical activity from a very localized population of muscle fibers, providing high specificity and detailed information about motor unit behavior.

Intramuscular EMG is primarily used in clinical diagnostics and specific research settings where access to deep muscles or very localized measurements is necessary.

Advantages of Intramuscular EMG:

• Provides high spatial resolution and access to deep muscles that are otherwise inaccessible by surface methods.
• Enables recording of individual motor unit activity, critical for detailed neuromuscular investigations.

Limitations of Intramuscular EMG:

• Invasive nature requires medical expertise and carries risk of discomfort, infection, or muscle damage.
• Less practical for dynamic or repeated measures due to invasiveness and limited subject tolerance.
• Narrow field of measurement requiring multiple insertions for comprehensive muscle assessment.

Advances in Sensor Technology

Recent technological developments have led to wireless EMG sensors that integrate inertial measurement units (IMUs) within the same device. These systems simultaneously capture muscle activation and motion data, facilitating comprehensive biomechanical analyses outside traditional laboratory settings. Integrated EMG-IMU systems enhance real-time monitoring, data synchronization, and the study of complex movements in athletic, clinical, and ergonomic environments.

By understanding the strengths of surface EMG and the specific use cases for intramuscular EMG, researchers, clinicians, and practitioners can select the right solution for their needs. Surface EMG, in particular, stands out as the preferred approach for most modern biomechanics, sports, rehabilitation, and ergonomics applications, offering high-quality data with minimal disruption to natural movement.





2.2 Applications in Biomechanics

Electromyography has a wide range of applications within the field of biomechanics, offering valuable insights into muscular function during both static and dynamic activities. The ability to monitor muscle activation patterns, timing, and fatigue makes EMG an indispensable tool in several areas:

Gait and Movement Analysis

EMG is extensively used to analyze gait cycles, running mechanics, and functional mobility. By assessing the activation patterns of key muscle groups during walking or running, researchers and clinicians can identify abnormalities, asymmetries, or compensatory movements. This information is critical for designing rehabilitation programs, optimizing athletic performance, and evaluating surgical outcomes.

Sports Performance and Training

In sports science, EMG is used to study muscle recruitment strategies, coordination, and fatigue during athletic activities. Understanding which muscles are active, when they fire, and how intensely they contribute to movement allows coaches and athletes to optimize training techniques, prevent injuries, and enhance overall performance. Surface EMG is particularly valuable in this area, as it allows for non-invasive monitoring during dynamic, high-intensity movements.

Rehabilitation and Physical Therapy

EMG provides real-time feedback that supports neuromuscular re-education during rehabilitation. Patients recovering from injuries, strokes, or orthopedic surgeries benefit from EMG-guided therapy programs that help retrain proper muscle activation patterns. Surface EMG biofeedback is frequently used to improve voluntary control over weakened or inhibited muscles, accelerating recovery timelines.

Ergonomics and Workplace Safety

In ergonomic assessments, EMG is used to evaluate muscle strain and workload during occupational tasks. By identifying muscles under chronic load or improper activation patterns, interventions can be designed to reduce the risk of repetitive strain injuries (RSI) and enhance workplace safety. Portable surface EMG systems allow measurements to be performed in real-world job environments.

Clinical Diagnostics

While intramuscular EMG remains a gold standard for diagnosing neuromuscular diseases, surface EMG also plays a growing role in clinical screening. It assists in evaluating muscle performance in conditions such as cerebral palsy, Parkinson’s disease, and muscular dystrophies. EMG can reveal patterns of muscle activation or inhibition that help clinicians tailor treatment plans.

Human-Machine Interfaces

EMG signals are increasingly used to develop advanced human-machine interfaces, including prosthetic control, exoskeletons, and wearable robotic systems. By translating muscle activation patterns into control commands, EMG bridges the gap between human intent and machine action, offering enhanced mobility and independence for users.

Through its versatility and non-invasive nature, surface EMG, in particular, has become the preferred method for a wide range of biomechanical applications, providing critical insights while preserving natural movement and comfort.

3. Inertial Measurement Units (IMUs) in Biomechanics

3.1 Definition and Principle of Operation

Inertial Measurement Units (IMUs) are self‑contained, wearable sensor modules that quantify human movement by continuously recording linear acceleration, angular velocity, and absolute orientation in three orthogonal axes. Unlike optical camera systems that require fixed infrastructure, IMUs capture high‑resolution kinematic data directly on the body, making them indispensable for field‑based biomechanics, sports performance analysis, and clinical gait assessment.

The operating principle of IMUs is based on the following components:

• Accelerometers measure linear acceleration along the X, Y, and Z axes, capturing translational movements.
• Gyroscopes measure angular velocity, providing information about rotational motion around each axis.
• Magnetometers detect the Earth's magnetic field to aid in determining absolute orientation, correcting for gyroscope drift.

In biomechanics, systems like the Ultium Motion Portable 3D Motion Capture System utilize high-output-rate IMUs (up to 400 Hz) capable of detecting both high-velocity and high-impact motion. These sensors deliver accurate rotational data (up to 7000 deg/s) and are embedded with onboard memory to prevent data loss during demanding movements.





One of the key advantages of wearable IMU systems is the elimination of dependency on external visual tracking equipment. Unlike traditional camera-based systems, IMUs allow for:

• Portable and field-ready analysis
• Full freedom of movement without spatial constraints
• Data capture in both controlled and real-world environments

Additionally, IMUs are embedded in various form factors to serve specific applications:

• Ultium EMG with Internal IMU: Combines muscle activation and motion data in one sensor.
• MANUS Metagloves Pro: Tracks 15 joints per hand, offering detailed finger kinematics.
• Ultium Insole SmartLead: Captures pressure and gait parameters with real-time foot motion data.



These IMUs are designed for ease of use, requiring no manual sensor calibration. They integrate directly into Noraxon’s synchronized platforms such as MR4 and myoRESEARCH 3, allowing seamless data acquisition and visualization without technical complexity. Users benefit from clean, calibrated motion output that is ready for biomechanical interpretation—no deep knowledge of filtering algorithms or raw signal correction is needed.

Overall, IMUs provide an accurate, portable, and efficient solution for motion tracking across clinical rehabilitation, sports performance, ergonomic research, and academic studies, especially when integrated into modular systems offered through Noraxon’s platform.



3.2 Applications in Biomechanics

IMUs have become indispensable tools in biomechanics due to their portability, ease of use, and ability to capture movement in natural environments. Key applications include:

Gait Analysis

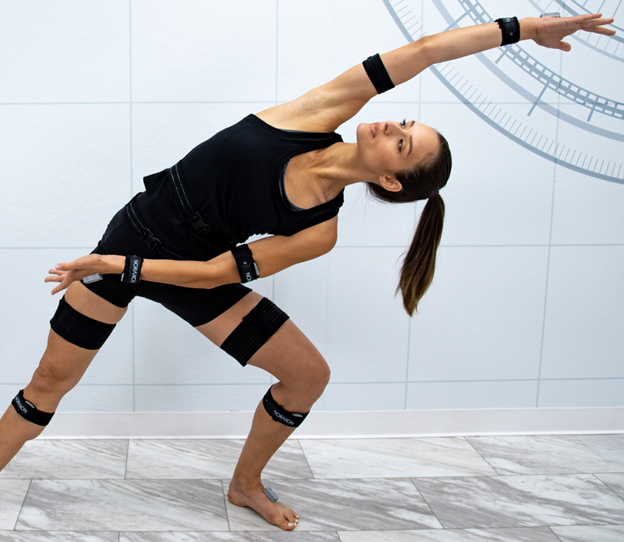

IMUs are widely used to assess walking and running mechanics. By attaching IMUs to body segments, researchers and clinicians can measure gait parameters such as stride length, cadence, joint angles, and symmetry without the constraints of laboratory-based motion capture systems.

Sports Performance and Technique Optimization

In sports science, IMUs help analyze athletic techniques, track limb velocities, and detect asymmetries or inefficiencies in movement patterns. This data supports the development of training programs aimed at enhancing performance and preventing injuries.

Balance and Posture Assessment

IMUs are employed to monitor postural stability and balance control. They can detect subtle sway patterns, compensatory movements, or deviations from optimal alignment, providing valuable information for rehabilitation, fall risk assessment, and ergonomic interventions.

Rehabilitation and Functional Movement Analysis

During rehabilitation, IMUs enable the objective measurement of range of motion, joint stability, and functional task performance. Clinicians use IMU data to track patient progress, evaluate treatment outcomes, and adjust therapy protocols accordingly.

Wearable Human-Machine Interfaces

IMUs are integrated into wearable devices such as exoskeletons and prosthetics, where they facilitate intuitive control by tracking user intent through body motion. IMUs also play a role in gesture recognition systems used for virtual reality (VR) and augmented reality (AR) applications.

Through their versatility and capability to collect high-quality kinematic data outside of controlled laboratory settings, IMUs have expanded the reach of biomechanics into real-world environments, enabling more comprehensive and ecologically valid assessments of human movement.



4. Inertial Measurement Units (IMUs) in Biomechanics

4.1 Definition and Components

Inertial Measurement Units (IMUs) are compact devices that quantify motion using microelectromechanical systems (MEMS). They integrate three primary sensors:

• Accelerometers: Measure linear acceleration (m/s²) in three axes.
• Gyroscopes: Track angular velocity (rad/s) to determine rotational motion.
• Magnetometers: Provide directional orientation relative to Earth’s magnetic field.

4.2 Principles of Operation

IMUs employ sensor fusion techniques—such as Kalman filters or complementary filters—to merge data from accelerometers, gyroscopes, and magnetometers. This process yields accurate estimates of position, velocity, and orientation, even during complex, multi-plane movements.

4.3 Technical Considerations

• Calibration: Adjusts for sensor biases, scale errors, and environmental influences like magnetic interference.
• Drift Management: Gyroscope drift is corrected using magnetometer data or periodic resets.
• Sampling Rate: Ranges from 100–1000 Hz to capture rapid biomechanical events.
• Placement: Secure attachment to body segments minimizes errors from relative motion.



4.4 Applications in Biomechanics

• Gait Analysis: Measures joint angles and segment trajectories, supporting clinical and athletic assessments.
• Sports Biomechanics: Tracks motion in activities like skiing or gymnastics, enhancing technique analysis.
• Clinical Monitoring: Assesses movement impairments in conditions like Parkinson’s disease or post-stroke recovery.
• Ergonomics: Monitors posture and repetitive movements to reduce occupational injury risks.

5. Integrated Systems in Biomechanics

5.1 Definition and Purpose

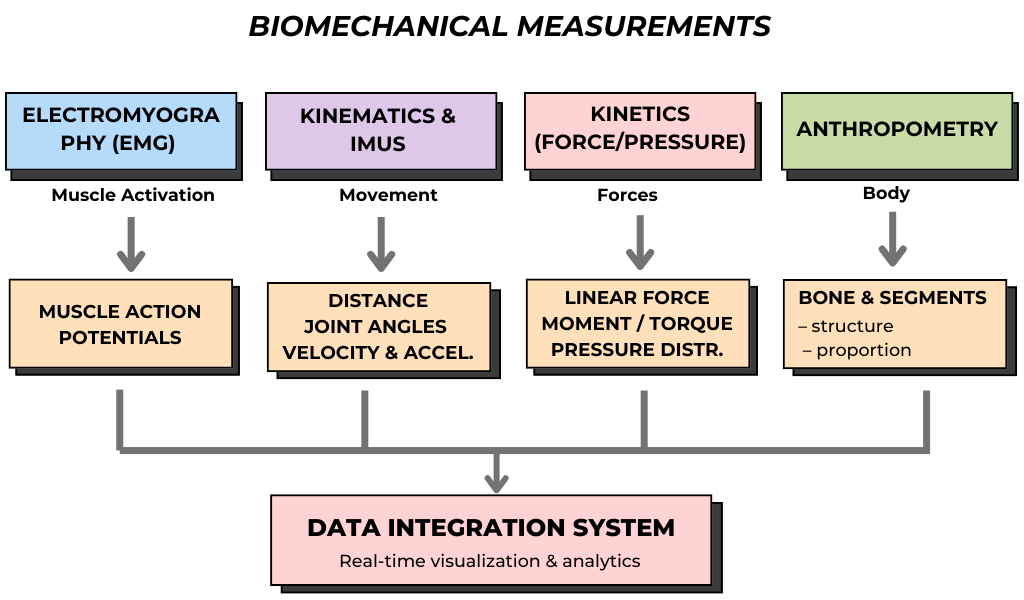

Integrated biomechanical systems are complete platforms designed to collect synchronized data from multiple measurement sources—such as motion, force, and pressure sensors—in a single unified environment. These systems are not simply a combination of hardware; they represent a structured approach to biomechanical analysis where time-aligned data from different modalities can be visualized, analyzed, and interpreted together. The goal of integration is to gain deeper insights into movement quality, control, and asymmetry by aligning kinetic, kinematic, and neuromuscular data points in time.

In practice, this means systems like Portable Lab, Ultium Motion, Ultium Insole SmartLead, and Core EMG work in tandem through a shared software interface such as myoRESEARCH MR4, which handles synchronized acquisition, visualization, and post-analysis workflows. Each device captures a different layer of the movement process—from muscle activation to joint motion to ground force distribution—and sends that data into a centralized acquisition platform, where it is time-stamped, filtered, and processed for immediate use.

5.2 How Integration Works

Integrated systems operate through a modular sensor network, such as inertial measurement units (IMUs), pressure insoles, and motion tracking devices, which are configured to transmit data into a centralized acquisition platform. This process relies on real-time communication protocols and internal clock synchronization to ensure that all data streams share a common timeline.

The technical workflow generally includes:

• Sensor Initialization: Devices are initialized and recognized by the acquisition platform, with auto-configuration features minimizing setup time.
• Time Synchronization: Each data stream is assigned precise timestamps through internal clocks or master-slave synchronization protocols, ensuring alignment across sensor modalities.
• Wireless Transmission and Logging: Data is either streamed in real time or stored locally on embedded memory modules and later merged through software.
• Unified Data Management: Acquisition software platforms (e.g., myoRESEARCH MR4) consolidate all incoming signals into a single dataset, allowing for synchronized analysis and visualization.

This integration enables continuous monitoring of complex motor tasks, such as walking, lifting, or sport-specific maneuvers, without reliance on post-hoc alignment or manual data correction.





Syncd-Integrated-Tech-Ecosystem



5.3 Advantages of Integrated Systems

• Multi-Layered Analysis: Capture muscle activity, movement, pressure, and force in one dataset.
• Real-World Readiness: Hardware like Portable Lab is compact and field-deployable, allowing for accurate data collection in clinics, gyms, labs, or real-world scenarios.
• Time Efficiency: Integrated systems reduce setup time and eliminate post-processing tasks like data alignment.
• Consistency Across Tests: Synchronization ensures repeatability, critical in research, rehab progress tracking, and return-to-play decision-making.
• Scalable Configurations: Systems can be customized for different protocols—from upper body assessments to full gait labs.

5.4 Use Cases

• Athlete Performance Testing: Integrate limb motion, ground reaction force, and neuromuscular timing in sport-specific drills.
• Clinical Assessment: Simultaneously evaluate joint stability, foot pressure, and muscle activation during rehab protocols.
• Workplace Ergonomics: Quantify joint loading and postural strain under real work conditions using integrated motion and force sensing.
• Academic Research: Run large-cohort studies with synchronized, multi-modal data to explore movement impairments, compensations, or adaptations.

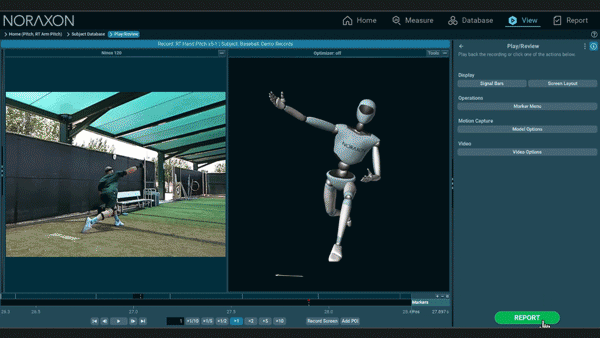

Automated-Customizable-Reporting

5.5 System Alignment with Our Offerings

At A-Tech Instruments, our integrated systems are built around highly compatible hardware including:

• Ultium Motion: Wearable 3D motion capture sensors for upper and lower body movement analysis.
• Ultium Insole SmartLead: Pressure-sensing insoles with embedded inertial tracking for gait and load distribution studies.
• Manus Metagloves Pro: Motion capture gloves that track 15 joints per hand, ideal for dexterity analysis.
• Portable Lab: A customizable hub that unifies all sensor data into a field-ready setup for real-time, multi-modal biomechanics.

These systems all operate within a shared platform—such as myoRESEARCH MR4—allowing synchronized data collection and robust comparative analysis across modalities. Together, they form a powerful toolkit for high-quality biomechanical research, performance optimization, and clinical evaluation.
