About 3-D & 6 DOF Motion Tracking

Introduction

Accurate analysis of human movement is fundamental in biomechanics research, enabling detailed insights into gait dynamics, athletic performance, injury prevention, and rehabilitation. 3-D and 6 Degrees of Freedom (DOF) motion tracking technologies precisely capture the spatial positions and rotational orientations of body segments over time, providing a robust quantitative foundation for biomechanical investigations.

These advanced motion tracking methods are pivotal in assessing movement patterns, identifying subtle biomechanical deviations, and quantifying performance outcomes in clinical and sports settings. By offering precise, objective data, 3-D and 6-DOF systems help researchers and clinicians to better understand complex human motions and develop targeted interventions to enhance performance or rehabilitation outcomes.

Critical elements in motion tracking systems include spatial accuracy, rotational precision, synchronization, and the speed of data acquisition. These components collectively ensure detailed, reliable, and actionable biomechanical data.

Principles of Motion Tracking

Motion tracking involves systematically recording the position and orientation of specific anatomical landmarks or markers on the body throughout movement. Two prevalent methods in biomechanics research include:

• Marker-Based Tracking: This technique employs high-resolution, synchronized cameras to detect reflective or active markers placed strategically on the subject's body. Through triangulation, these systems generate accurate 3-D spatial and orientation data. For example, the Kestrel 2200 Plus camera offers global shutter imaging and captures up to 332 frames per second at full resolution, making it ideal for tracking high-speed or subtle movements without motion blur. Key performance parameters such as frame rate, resolution, and synchronization directly influence the quality and reliability of biomechanical analyses.

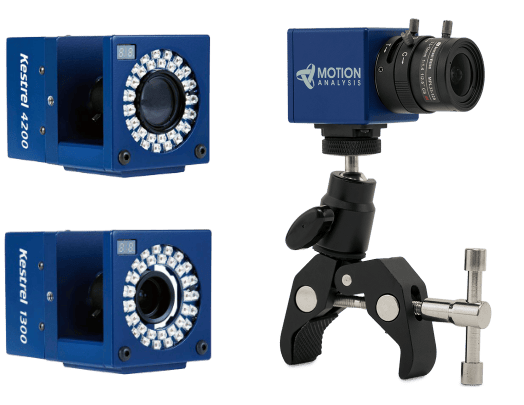

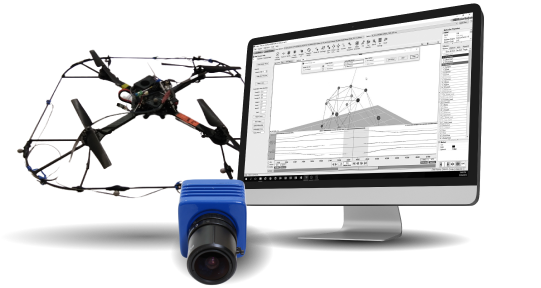

Kestrel 4200, Motion Tracking Camera                                                           Kestrel 2200 Plus, Motion Tracking Camera

• Markerless and Video-Based Tracking: This approach relies on high-speed video footage and computational algorithms to analyze movement without requiring physical markers. When used with appropriate analysis software such as Noraxon’s myoVideo, cameras like the NiNOX 120 can provide synchronized, high-resolution footage suitable for 2D markerless tracking or, depending on the workflow, integration with pose estimation tools. Although the NiNOX 120 itself does not apply AI-based tracking, it can be a component in systems where AI-driven software is used to extract kinematic data.

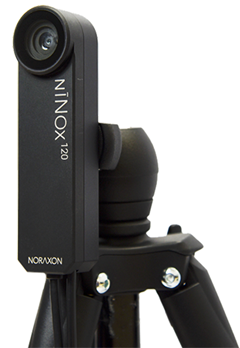

NiNOX 120 Camera, Plug-and-Play Video Capture and Analysis Solution

Across both approaches, critical technical factors include tracking accuracy, sufficient frame rates, reliable synchronization across devices, and the ability to stream data in real time. Real-time streaming capabilities, supported by platforms like Cortex 10, allow for immediate visualization and analysis of kinematic data—an essential feature for clinical rehabilitation, interactive feedback, and high-performance athletic assessment.

By combining precision, flexibility, and integration potential, these motion tracking technologies form the basis for advanced biomechanical research and practice.

Types of Motion Tracking Systems

Modern motion tracking technologies can be broadly categorized into optical, inertial, and video-based systems. Each approach has distinct principles and is suited to different scenarios:

Optical Marker-Based Motion Capture

Optical motion capture (marker-based tracking) uses specialized high-resolution cameras paired with reflective or active markers to accurately measure movement. In typical setups, multiple synchronized infrared cameras surround the measurement volume. Small reflective markers are attached to key points on the subject’s body or on an object of interest. As infrared light emitted from the cameras interacts with these markers, they reflect brightly back to the cameras, enabling precise detection.

The 3-D position of each marker is determined through triangulation, a photogrammetry process that reconstructs precise spatial coordinates from multiple camera views. High-quality optical systems achieve sub-millimeter accuracy, making them the gold standard in biomechanical analysis, sports performance research, and clinical applications.

Marker-based systems may employ either passive or active markers. Passive markers reflect infrared illumination from the cameras, relying on advanced algorithms to accurately locate marker centroids. In contrast, active markers contain LEDs that emit their own distinct signals, facilitating marker identification and reducing tracking errors, especially in complex or visually challenging scenarios. An example of an active marker system is the BaSIX Go, which simplifies the setup by eliminating the need for extensive marker placement or suits.

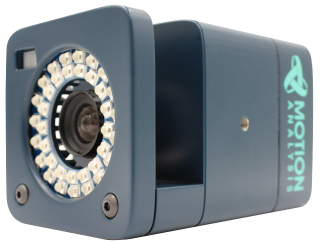

The effectiveness of optical marker-based tracking depends significantly on camera capabilities. For instance, cameras like the Kestrel 2200 Plus offer a resolution of 2.2 megapixel (2048×1088) and capture speeds of up to 332 frames per second at full resolution, extending to 10,000 fps at reduced resolutions. Such high-speed, global shutter cameras minimize motion artifacts and ensure precision even during rapid or subtle movements. Multiple cameras are synchronized to capture simultaneous frames, essential for accurately reconstructing detailed, three-dimensional movements.

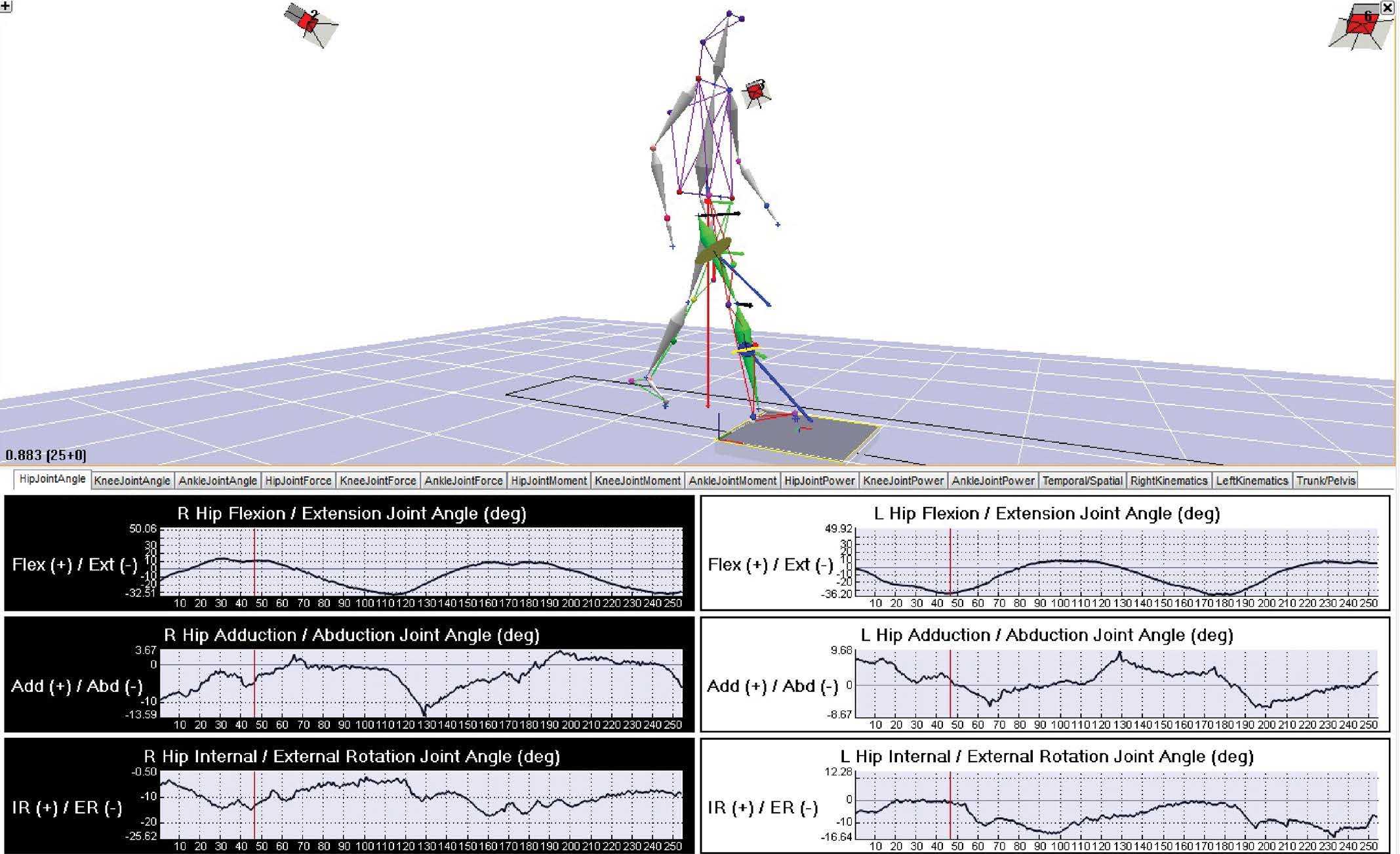

Software platforms like Cortex 10 further enhance these systems by providing real-time processing, automatic marker identification, and robust data integration capabilities. Cortex software efficiently manages marker tracking, labeling, and real-time computation of biomechanical parameters, ensuring a streamlined workflow for comprehensive biomechanical analyses.

Optical Markerless and Video-Based Tracking

Marker-based optical systems, while highly accurate, require markers and a controlled setup. In contrast, markerless motion tracking aims to capture movement using only video cameras and computer vision algorithms – with no physical markers on the subject. These systems fall under the broader category of video-based tracking. Markerless methods have rapidly advanced thanks to improved image processing and machine learning: they often involve detecting human pose (key body landmarks like joints) from images or silhouettes. Some markerless setups use multiple camera views (e.g. multi-angle high-speed video or depth cameras) to reconstruct 3D positions of body landmarks, while others attempt 3D pose from a single camera via learned models. The appeal is clear – no suits or markers means faster setup and the ability to capture motion in more natural or field environments (even outdoors) with ordinary cameras. For example, in sports or rehabilitation settings, markerless video tracking could allow motion analysis in real training environments without hindering the athlete or patient.

However, markerless approaches generally do not yet match the spatial accuracy and consistency of marker-based systems. Challenges such as occlusions (body parts hiding each other), varied lighting conditions, and clothing variability can affect landmark detection. The accuracy of joint position estimation is also dependent on the quality of the video feed and the robustness of the underlying algorithms. For example, while some research-grade systems can achieve angular accuracy within 2–3° for simple movements such as walking, more complex motions may still result in notable discrepancies.

A systematic review in 2024 found that for basic gait measures (spatiotemporal parameters and large joint angles in the sagittal plane), some camera-based markerless systems approached the accuracy and reliability of marker-based systems, whereas more complex kinematic measurements (like certain ankle or transverse-plane motions) still showed discrepancies. In short, markerless motion capture is an exciting and active area of development – it offers a non-intrusive, “in-the-wild” tracking solution – but one must be mindful of its current limitations. Many biomechanics labs are beginning to explore markerless video analysis for quick screenings or when markers are impractical, while continuing to rely on marker-based setups for high-precision measurements

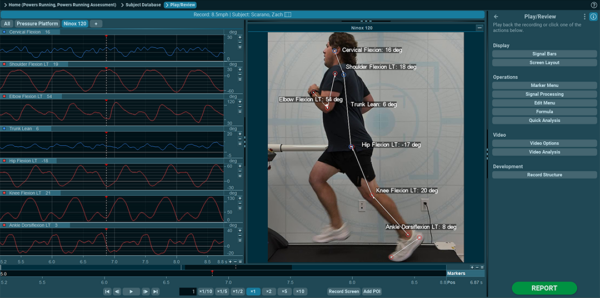

Systems like the NiNOX 120 camera provide high-resolution, high-speed video capture that can be used for post-hoc 2D marker tracking and synchronized video analysis. While the NiNOX itself does not perform pose estimation, it integrates well into motion analysis workflows that employ external tracking software for video-based biomechanical assessments.

Additionally, simpler 2D video analysis techniques continue to play a role in basic kinematic studies, especially for planar movements. These systems are widely used in coaching, education, and preliminary assessments, often as part of a broader hybrid motion capture setup. As markerless and video-based tracking methods continue to advance, they offer a promising complement to traditional systems—particularly when flexibility and ease of use are prioritized over maximum precision.

Key Performance Factors in Motion Tracking

When designing or selecting a motion tracking system for biomechanics or engineering, several performance considerations are paramount. The importance of factors like accuracy, speed, and synchronization cannot be overstated, as they directly affect the quality of data and insights one can gain from movement analysis. Below are the key factors:

• Accuracy is a foundational parameter. It refers to how closely the captured data reflects the subject’s actual movement. High-end optical systems can achieve sub-millimeter accuracy in 3D position tracking under optimal conditions, making them suitable for detecting fine joint translations or gait deviations. Inertial systems often deliver angular accuracy within 1–2 degrees for major joints, though they tend to be less precise in determining absolute position due to cumulative drift. Markerless systems are continuously improving in this area, but depending on lighting, clothing, and algorithm performance, errors may range from a few millimeters to several centimeters. Regardless of system type, maintaining calibration and accounting for known sources of error—such as soft tissue artifact or magnetic interference—is essential to ensure reliable measurements.


• Resolution: In optical and video tracking, camera resolution (in pixels) affects the level of detail that can be captured. Higher resolution cameras can track smaller markers or finer motions at a given distance, and they allow covering larger capture volumes without sacrificing precision. For example, a 2.2 MP camera like the Kestrel 2200 Plus provides a dense image such that even in a wide area, each marker’s image is well-resolved for accurate centroid calculation. Resolution also matters in markerless tracking – high-res video frames enable algorithms to detect features more reliably (think of detecting a subtle knee bend; it’s easier with more pixels on the person). However, higher resolution can mean more data to process, so there’s a balance with frame rate. Many systems let users adjust resolution and frame size to optimize performance. In any case, having sufficient resolution is important to avoid digitization error (the error from picking a point in an image) and to ensure small movements are not lost in the noise floor of the system.


• Frame Rate: Motion can happen quickly – an elite pitcher’s arm can move at 7000°/s during a baseball throw, and a sprinter’s foot may be on the ground for only 0.1 seconds. High frame rate capture is vital to faithfully record such fast events. If the frame rate is too low (say 30 Hz), rapid motions will blur or the data will “strobe” (miss critical moments). Most 3D motion tracking in labs is done at 100–250 Hz, which is sufficient for human gait and many sports movements. For very fast actions (impact biomechanics, golf swings, baseball bat swings), optical systems can be run at 500–1000 Hz or more to capture the motion arc in detail. Specialized cameras like the Kestrel series can reach hundreds of Hz at full resolution, and even into the thousands of frames per second at reduced resolutions for research on explosive movements. In inertial sensors, the sampling rate is also high (often 100–400 Hz) to not miss quick changes. High frame rates combined with short exposure times (possible with strong lighting and global shutter cameras) minimize motion blur, yielding crisp tracking of fast-moving markers or limbs. The choice of frame rate should match the movement’s speed: as a rule, you want several data points during the quickest phase of motion to accurately reconstruct velocities and accelerations.


• Camera Synchronization: When multiple cameras or sensors are used, they must be synchronized in time. For optical motion capture, all cameras should capture frames simultaneously; even a few milliseconds of offset can introduce error in 3D triangulation for fast motions. When combining different devices (e.g. motion cameras with force plates or EMG), synchronization ensures that events recorded by each device line up in time. A synchronized system allows, for instance, matching the moment of foot touchdown in kinematic data with the force spike on a force plate.
• Real-Time Data Streaming: Many applications of 3D and 6-DOF tracking require real-time feedback. In rehabilitation, clinicians may want to give patients immediate feedback on their movement patterns; in sports, coaches might use live motion data for training cues. Real-time streaming means the system processes the sensor/camera data on-the-fly and outputs kinematic information with minimal delay. Modern motion capture software is designed with this in mind. For example, the Cortex software can stream 3D marker positions, joint angles, or other metrics live to third-party programs (such as visualization tools or biomechanical analysis programs). Inertial systems like myoMOTION are built for real-time use – they continuously transmit joint angles and acceleration data, which can be viewed as an animated avatar or fed into analysis in an all-in-one synchronized platform.

Together, these factors contribute to the effectiveness of a motion tracking system in biomechanics. They influence not only the quality of collected data, but also the usability, flexibility, and scientific validity of the motion analysis process across diverse applications.

Applications of 3D and 6-DOF Tracking

Motion tracking systems are employed in a wide range of domains. Below are some of the key application areas, with examples of how 3D motion tracking and 6-DOF tracking are used to advance biomechanics research, improve human performance, and solve engineering problems.

Gait Analysis and Rehabilitation

One of the classic applications of 3D motion tracking is gait analysis in clinical biomechanics. In a gait lab, optical motion capture is often used to record the 3D positions of markers attached to a patient’s lower body (and sometimes upper body) as they walk or run. From this, clinicians compute joint angles, stride characteristics, and even joint forces (when combined with force plate data). 6-DOF tracking is particularly important in gait analysis for capturing not only the flexion/extension of joints but also small out-of-plane movements; for example, a comprehensive foot model might track the foot’s 6-DOF motion relative to the tibia to analyze pronation/supination and arch deformation. Gait labs rely on the high accuracy of optical systems to detect subtle gait deviations caused by orthopedic conditions, neurological disorders, or injury. For instance, in cerebral palsy patients, 3D motion capture can quantify abnormal hip rotations or knee angles, which then inform surgical decisions. Rehabilitation specialists also use motion tracking to monitor progress – say, measuring how a patient’s range of motion improves over time after a knee replacement or stroke.

In recent years, gait analysis is expanding outside the lab thanks to inertial and markerless systems. Wearable IMU sensors can be used for gait analysis in the clinic hallway or even at home, providing data on walking speed, symmetry, and joint kinematics in real-world environments. This is useful for remote monitoring of rehab patients or assessing fall risk in the elderly during their daily routines. Markerless video gait analysis, using depth cameras or machine learning pose estimation, has also emerged in some clinics as a quick screening tool (for example, capturing a patient’s walk with a tablet camera to get basic kinematic measurements without a full lab setup). The trade-off, as always, is that these convenient methods might sacrifice some accuracy. Nevertheless, they represent an important trend toward more accessible motion analysis. In rehabilitation, real-time motion tracking is sometimes used for biofeedback – e.g. showing a patient in real time how they are moving (perhaps an on-screen avatar mimicking their motions) so they can adjust their gait or posture. Motion tracking in rehab isn’t limited to gait; it’s also applied to upper extremity movements for stroke patients retraining arm function, or to monitor spine motion in patients with low back pain. The key benefit across these examples is that quantitative 3D movement data allows clinicians to objectively assess function and track improvements, as opposed to just subjective observation. By capturing how a person moves in 3D space, any compensations or asymmetries become measurable. This data-driven approach improves diagnosis and the evaluation of interventions in rehabilitation medicine.

Sports Performance and Biomechanics

Sports biomechanics is another field that heavily leverages 3D and 6-DOF motion tracking. Coaches and sports scientists use these technologies to analyze athletic techniques in great detail. For example, in a baseball pitching analysis, a motion capture system can track the pitcher’s arm, torso, and leg motions to calculate joint angles and velocities throughout the pitching motion. The shoulder and elbow joints can be examined in 6 DOF to understand the stresses leading to injuries like UCL tears. In golf, high-speed optical mocap or specialized systems like Gears (an optical 3D tracking system for golf) capture the full body kinematics along with the club motion; this reveals parameters such as swing plane, clubhead speed, and sequencing of body segment rotations, which are critical for performance.

Sports motion capture often deals with explosive, high-velocity movements – a golf swing, a tennis serve, a volleyball spike – thus benefiting from the high frame rates and accuracy of optical systems. Indeed, for elite athletes, capturing the “slightest of movements” can make a difference; a tiny change in joint angle or timing can affect performance or injury risk. As noted by sports technologists, optical systems can directly see each marker and achieve unmatched accuracy in measuring these subtle motion details, whereas inertial systems, while useful, may not capture absolute positions or very fine nuances as precisely.

In sports like tennis, 3D motion capture with optical systems allows precise tracking of an athlete’s movements and equipment in real time. Key markers (either physical or virtual) on the athlete’s body and racket can be tracked by high-speed cameras, providing detailed kinematic data to improve performance and reduce injury risk.

Many professional sports teams and research institutes have motion capture labs or bring athletes into biomechanics facilities for analysis. These sessions can identify inefficiencies in technique – for example, showing a sprinter their exact joint angles at toe-off, or measuring a basketball player’s jump biomechanics. The data might reveal asymmetries or highlight areas to adjust (like increasing hip extension for a more powerful jump). Real-time kinematic tracking is increasingly used in sports training; systems can provide instantaneous feedback. For instance, a coach might have a real-time readout of a baseball pitcher’s shoulder rotation angle or a gymnast’s hip alignment, allowing corrections on the spot. Some sports have embraced wearable inertial sensors for on-field analysis where optical systems can’t go – e.g. IMUs in a glove to analyze a boxer’s punch kinetics, or small sensors on soccer players to monitor kicking dynamics during practice. These give coaches data without restricting the athletes to a lab.

Another important application is injury prevention. Sports motions are analyzed with 6-DOF tracking to understand mechanisms of injury (such as knee valgus angles in cutting maneuvers related to ACL injuries). By tracking these movements in detail, interventions (training adjustments, technique changes) can be designed to reduce dangerous motions. For example, landing mechanics of athletes can be evaluated with motion capture to ensure they aren’t at high risk for knee injuries – something that has been done in female volleyball and basketball players using mocap data to drive feedback training. Equipment design in sports also benefits: manufacturers use motion tracking to see how athletes interact with equipment (e.g., the bending of a ski or the aerodynamics posture of a cyclist) and optimize designs. In summary, 3D motion tracking has become a cornerstone of sports science, enabling a level of quantitative feedback and insight that was impossible with the naked eye. From measuring a golfer’s swing in full 3D detail to capturing a swimmer’s underwater stroke kinematics, these technologies help push the boundaries of human performance in a scientific manner.

Ergonomics and Human Factors

In ergonomics and workplace human factors, motion tracking is used to evaluate how people move and pose during work-related tasks. The goal is often to assess posture, joint loads, and movement efficiency to design safer and more ergonomic workplaces. For example, consider a factory worker repeatedly bending and lifting objects. By using 3D motion capture or wearable sensors to track the worker’s spine and limb motions, ergonomists can quantify the amount of trunk flexion, twist, shoulder elevation, etc., throughout the task. These measurements (coupled with biomechanical models) help determine if the worker is exceeding safe limits or if there is a risk of cumulative injury (like low-back strain). With 6-DOF tracking, even small differences in how a tool is held or how the body pivots can be captured – all contributing to a comprehensive ergonomic risk assessment.

Markerless video tracking has particular appeal in real workplaces, since one could, for instance, set up a few depth cameras around an assembly station to record workers without interrupting their routine. The system might output data on how often and how deeply workers stop, or how awkward certain reaches are, etc. Inertial sensors are also popular for ergonomic studies outside the lab: an IMU placed on the lower back can log how frequently a worker bends beyond a certain angle, or sensors on the arms can track repetitive motion patterns. The accuracy of these systems is usually sufficient to flag large-scale issues (like excessive forward lean or arm elevation), though perhaps not as pinpoint as optical labs for detailed analysis of every joint. Still, they provide objective data in environments where you can’t set up 12 cameras easily.

Robotics and Engineering Applications

Beyond human movement, 3D and 6-DOF tracking are integral to many engineering and robotics applications. In robotics research, optical motion tracking systems are frequently used as an external tracking method to measure robot kinematics. For instance, in a robot arm calibration, one can attach a cluster of markers to the robot’s end-effector or joints and track their 6-DOF trajectories as the robot moves. The highly accurate external measurement (often much more precise than the robot’s internal encoders, especially in collaborative robots or soft robots) allows engineers to identify calibration errors or flexibilities in the robot – essentially providing ground truth data to refine the robot’s control algorithms. Similarly, when developing a new robotic device or exoskeleton, motion capture is used to track both the robot and the human user to study their interaction in 3D space.

Animal Studies

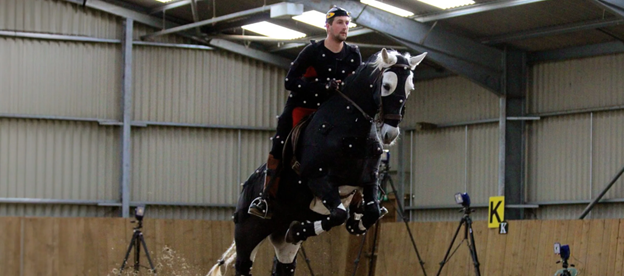

3D motion tracking technologies are increasingly used in animal research to study locomotion, behavior, neuromuscular control, and rehabilitation across a wide range of species. Optical systems offer the precision and flexibility required to capture subtle movements—from small limb motions in rodents to full-body tracking of larger animals such as horses or even elephants. Passive reflective markers are commonly used in life sciences for high-accuracy tracking of anatomical landmarks, while some applications may incorporate active markers or lightweight wireless sensors depending on the subject’s size and mobility.

The non-invasive nature of optical tracking allows researchers to capture natural movement patterns without significantly interfering with the animal's behavior. This is especially valuable in studies investigating gait abnormalities, movement disorders, or the effects of therapeutic interventions. Cameras used in these systems are often heat- and splash-resistant, supporting use in diverse environments including aquatic or outdoor enclosures.

Advanced motion capture software, such as Cortex, enables researchers to collect synchronized, high-resolution data across multiple animals or complex behaviors. Real-time tracking and post-hoc analysis tools streamline workflow and improve accuracy, while the system's flexibility allows for scalable configurations—from confined treadmill spaces to large open arenas. Whether studying insect locomotion or elephant gait cycles, motion capture provides objective and quantifiable data to support scientific discovery in comparative biomechanics and veterinary research.

Animation and Digital Human Modeling

In animation, video game development, and digital content creation, motion tracking systems are critical for capturing realistic human and creature movement. These applications rely on 6-DOF data to drive skeletal rigs in animation software, enabling characters to mimic natural motion with high fidelity. Optical marker-based systems are widely used in studio settings due to their accuracy and ability to handle complex, high-speed movements.

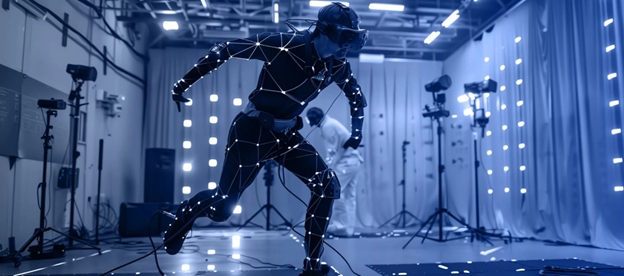

Actors or performers wear suits outfitted with reflective markers or active LEDs, and their movements are captured by synchronized camera arrays. The motion data is mapped onto digital avatars in real time or during post-production to animate characters for film, television, or gaming. High frame rates and sub-millimeter positional accuracy allow for the preservation of nuanced motion—facial expressions, finger articulation, and fluid body dynamics—which are essential for believable animation.

In biomechanics and ergonomic modeling, motion tracking is also used to develop digital human models (DHMs) for simulation and analysis. These models help designers evaluate posture, reach, comfort, and joint loading under different conditions, often integrating with CAD and product development tools. The precision and repeatability of motion tracking make it an indispensable tool for bridging physical performance and virtual modeling.
