What are In-Line Signal Conditioners?

In-Line Signal Conditioners (or in-line signal amplifiers) are compact, specialized devices designed to process and optimize electrical signals directly within measurement and control systems. Unlike rack-mounted or panel-mounted units, these conditioners are integrated directly into the signal path between sensors and data acquisition equipment, providing real-time signal conditioning in a streamlined, space-efficient design. In-line amplifiers handle diverse input signals from sensors such as LVDTs (Linear Variable Differential Transformers), strain gauges, potentiometers, and piezoelectric charge mode sensors. By converting these specialized signals into common formats such as ±10 V, 0–10 V, or 4–20 mA current loops, in-line conditioners ensure compatibility with modern measurement and control equipment while protecting the integrity of the data.

These devices are engineered for applications where space constraints, portability, and direct signal path integration are critical factors, making them ideal for field installations, mobile testing equipment, and compact measurement systems.

Why Are They Important in Measurement and Data Acquisition Systems?

Industrial sensors are frequently mounted in places where electrical noise, temperature extremes, and long cable runs can degrade measurements. An in‑line conditioner addresses these challenges by delivering clean, interference‑free data. Placed right at the sensor or along the cable, it isolates the input from the output and power supply to prevent ground loops and surges from damaging equipment. Converting millivolt signals into more robust voltage or current signals allows them to travel much farther without loss, making these devices ideal when the sensor is located some distance from the control cabinet. In‑line conditioners also provide the correct excitation voltage for bridge‑type sensors and often include zero and span adjustments or auto‑zero functions, making field calibration much more convenient.

The strategic placement of conditioning electronics directly in the signal path minimizes signal degradation that can occur over long cable runs and reduces susceptibility to electromagnetic interference. This is particularly crucial for sensitive measurements involving strain gauges, LVDTs, and charge mode accelerometers, where signal integrity directly impacts measurement precision and system performance.

Key applications include:

• Structural Health Monitoring: Where precise strain and displacement measurements are critical for safety assessments
• Vibration Analysis: Ensuring accurate charge mode sensor data for machinery condition monitoring
• Position Measurement Systems: Optimizing LVDT and potentiometer signals for precise positioning applications
• Portable Test Equipment: Providing conditioning capabilities in field-deployable measurement systems
• Laboratory Instrumentation: Supporting high-precision research and development applications

Key Benefits of In-Line Signal Conditioners

Signal Amplification and Scaling: Transform low-level sensor outputs into robust signals with optimal amplitude for data acquisition systems, improving measurement resolution and reducing noise sensitivity.

Impedance Matching: Provide proper electrical interfacing between high-impedance sensors and low-impedance data acquisition inputs, preventing signal loading and ensuring accurate measurements.

Electrical Isolation: Advanced isolation circuitry protects sensitive measurement equipment from ground loops, electrical surges, and interference while maintaining signal integrity across different system components.

Multi-Sensor Compatibility: Support diverse sensor types including strain gauges, LVDTs, potentiometers, and charge mode sensors with appropriate excitation and conditioning for each sensor technology.

Compact Integration: Space-efficient design allows for installation directly in measurement chains without requiring additional panel space or complex mounting systems.

Real-Time Processing: Immediate signal conditioning eliminates delays and ensures that processed signals accurately represent real-time sensor data.

Enhanced Signal Quality: Built-in filtering and noise reduction capabilities ensure clean, stable outputs even in electrically noisy industrial environments.

How Do In-Line Signal Conditioners Work?

In-Line Signal Conditioners employ sophisticated analog and digital processing techniques to transform raw sensor signals into optimized outputs suitable for data acquisition and control systems. Here's a detailed breakdown of their operation:

1. Direct Signal Interface and Sensor Excitation

In-line conditioners connect directly to sensors, providing necessary excitation voltages and establishing proper electrical interfaces:

Sensor Excitation: For sensors requiring external power, such as strain gauges and potentiometers, the conditioner provides stable, regulated excitation voltages (typically 5V, 10V, or custom levels) ensuring consistent sensor operation and measurement accuracy.

Signal Acquisition: The input stage is specifically designed to handle the unique characteristics of different sensor types:

• Strain Gauge Inputs: Accept millivolt-level differential signals from Wheatstone bridge configurations
• LVDT Inputs: Process AC carrier signals and perform demodulation to extract position information
• Charge Mode Sensors: Handle high-impedance charge signals from piezoelectric accelerometers and force sensors
• Potentiometer Inputs: Interface with resistive position sensors providing ratiometric measurements

2. Advanced Signal Processing and Conditioning

The core processing section transforms raw sensor data through multiple conditioning stages:

Amplification and Gain Control: Programmable gain amplifiers boost weak sensor signals to optimal levels for data acquisition systems. Gain settings are typically adjustable to accommodate various sensor sensitivities and measurement ranges.

Signal Filtering: Multi-stage filtering removes unwanted noise and interference:

• Low-pass filtering eliminates high-frequency noise and aliasing
• High-pass filtering removes DC drift and low-frequency interference
• Notch filtering targets specific interference frequencies (such as 50/60 Hz power line noise)

Linearization and Calibration: Advanced units include linearization algorithms to correct for sensor non-linearities and temperature effects, ensuring accurate measurements across the entire operating range.

3. Electrical Isolation and Protection

Critical isolation circuitry ensures system safety and signal integrity:

Galvanic Isolation: Transformer or optical isolation separates input, output, and power sections, preventing ground loops and protecting connected equipment from electrical faults.

Surge Protection: Built-in protection circuits guard against transient voltages and electrical surges that could damage sensitive sensors or data acquisition equipment.

EMI/RFI Shielding: Comprehensive shielding and filtering minimize electromagnetic interference, ensuring clean signal transmission even in electrically noisy environments.

4. Output Standardization and Interface

The final output stage converts processed signals into industry-standard formats:

Voltage Outputs: Standardized voltage ranges such as ±5V, ±10V, or 0-10V provide compatibility with most data acquisition systems and ensure optimal resolution utilization.

Current Loop Outputs: 4-20mA current loops offer excellent noise immunity for long-distance signal transmission and are widely supported by industrial control systems.

Digital Outputs: Advanced conditioners may include digital communication interfaces (RS-485, Ethernet, or USB) for direct computer connectivity and configuration access.

Load Driving Capability: Output stages are designed to drive multiple loads or long cable runs without signal degradation, ensuring reliable data transmission to acquisition systems.

Input Types for In-Line Signal Conditioners

In-Line Signal Conditioners are built to handle different sensor technologies, each with unique signal characteristics. By matching the conditioner type to the sensor input, engineers ensure accurate, reliable measurements across diverse applications.

Strain Gauge Inputs

Strain gauge in-line conditioners are designed to work with Wheatstone bridge configurations, commonly used in load cells, torque sensors, and pressure transducers. These sensors produce low-level millivolt signals that require precise amplification and filtering. In-line conditioners for strain gauges provide high accuracy, bridge excitation voltage, and temperature compensation, ensuring stable performance in demanding environments.


              9210, In-Line Amplifiers                                                                            LCV, Strain Gauge Sensor

LVDT Inputs

Linear Variable Differential Transformers (LVDTs) are displacement sensors that generate differential AC signals proportional to position. In-line conditioners for LVDTs supply the required excitation voltage and demodulate the signal into a stable DC output. This makes them ideal for applications requiring high-resolution displacement, position, or deflection measurements.

S7AC, DC Powered LVDT Amplifier

Charge Inputs

Piezoelectric sensors, such as accelerometers and dynamic pressure sensors, produce charge outputs that are extremely low-level and high-impedance. In-line charge amplifiers convert these charge signals into standardized voltage or current outputs. They are designed with high input impedance and low noise characteristics, making them critical for vibration monitoring, modal analysis, and shock testing.

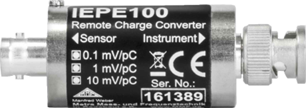

                4753B, In Line Charge Amplifiers                                                               IEPE100, In-Line Charge Signal Conditioner

Serial Inputs

Some in-line conditioners are built to handle serial digital inputs from smart sensors or transmit processed signals digitally to controllers and data systems. Serial in-line conditioners support protocols such as RS-232 or RS-485, enabling robust, noise-resistant communication over long distances. This is particularly valuable in distributed measurement networks or when multiple devices need to communicate efficiently with a central system.

LDM30

Applications of In-Line Signal Conditioners

In-Line Signal Conditioners are widely used across industries where compact design and reliable performance are essential. Typical applications include:

• Structural Testing: Conditioning signals from strain gauges, accelerometers, and displacement sensors in civil, mechanical, and aerospace testing.
• Industrial Monitoring: Integrating force, torque, and pressure sensors into PLC and SCADA systems for process control and quality assurance.
• Automotive and Transportation: Capturing precise vibration, load, and displacement data in vehicle dynamics, durability testing, and crash analysis.
• Aerospace and Defense: Supporting flight testing, structural monitoring, and shock/vibration measurement in harsh environments.
• Research Laboratories: Providing flexible conditioning for experimental setups requiring multiple sensor types with high accuracy.

Comparison to DIN Rail Signal Conditioners

While both DIN Rail and In-Line Signal Conditioners serve the same purpose of preparing raw sensor signals for reliable use, their design and use cases differ:

• Mounting Method: DIN rail conditioners are panel-mounted within control cabinets, while in-line conditioners are integrated directly into the signal cable path for field or portable use.
• Scalability: DIN rail conditioners are better suited for large-scale systems with multiple sensors due to their modular design. In-line conditioners are ideal for single-channel or portable setups.
• Space Requirements: In-line conditioners require no cabinet space, making them advantageous in compact or distributed systems.
• Maintenance: DIN rail versions allow centralized maintenance and quick swapping in panels. In-line versions are simpler to deploy in field applications but may require individual handling per sensor.

Choosing between them depends on the installation environment: DIN rail is preferred for fixed, centralized automation, while in-line is optimal for distributed, mobile, or space-limited applications. At A-Tech, our team of application specialists is ready to assist with evaluating system needs and recommending the right signal conditioning solution for each application.
