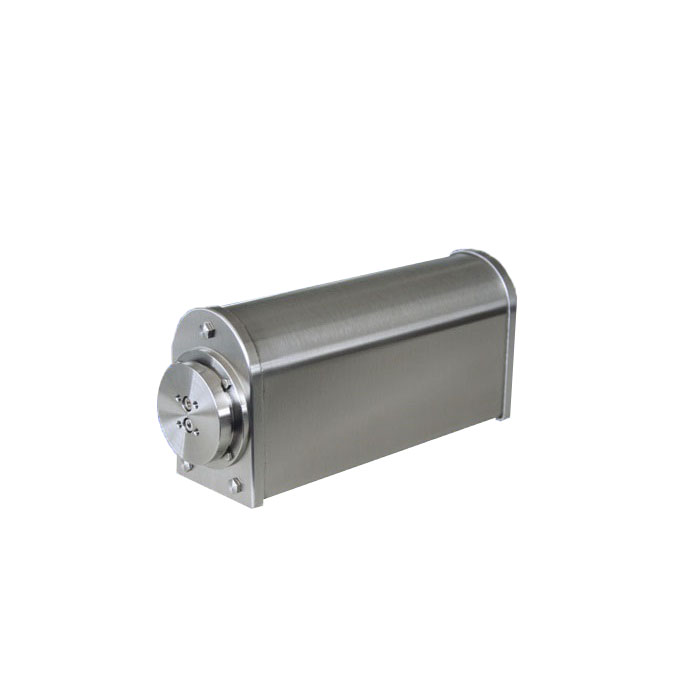

SW-WD-FS, EMFR Weigh Cell
The series SW-WD-FS Weigh Cells cover the weighing range up to 2,000 g. They have been specifically designed as compact sensor components, meaning they are especially suited for installation into multi-track applications and everywhere where...
Features:
- Weighing range up to 2,000 g
- Additive dead load range up to 1,000 g
- Wash Down Weigh Cell
- Stainless Steel Housing
- IP 69K Wash Down with separate electronic box
- Settling Time: < 120 ms
- Sampling Rate: 1 ms
- Integrated Active Vibration Compensation, AVC (optional)
- Interface 1: CAN, RS 422, Profibus DP, Profinet IO, Ethernet/IP, EtherCAT, Powerlink (optional)
- Interface 2: RS 232 for service and configuration
- Compact, Slim construction
Manufacturer: Wipotec Gmbh
Quote
Datasheet
Description
Specifications
Downloads
Similar Products
SW-WD-FS - Description
The series SW-WD-FS Weigh Cells cover the weighing range up to 2,000 g. They have been specifically designed as compact sensor components, meaning they are especially suited for installation into multi-track applications and everywhere where small frame sizes are demanded.
By using a special construction, all Weigh Cells are suitable for Wash Down applications IP 69K.
The Weigh Cell comes standard equipped - in connection with a separate electronic box - to supply final weighing values via a CAN, RS 422, Profibus DP, Profinet IO, Ethernet/IP, EtherCAT or Powerlink interface as ready to connect modular components.
By using a special construction, all Weigh Cells are suitable for Wash Down applications IP 69K.
The Weigh Cell comes standard equipped - in connection with a separate electronic box - to supply final weighing values via a CAN, RS 422, Profibus DP, Profinet IO, Ethernet/IP, EtherCAT or Powerlink interface as ready to connect modular components.
SW-WD-FS - Specifications
| Type | Weigh Cell |
| Full Scale | 2000 g |
| Dead Load | 1000 g |
| Interface | RS232 |
| RS422 | |
| CANbus | |
| Ethernet | |
| EtherCAT | |
| Profibus | |
| Profinet | |
| Powerlink | |
| Binary I/O | |
| Bus Operation | |
| Linearity | 0.1 g |
| Resolution | 0.05 g |
| 0.1 g | |
| IP Rating | IP69 |
SW-WD-FS - Downloads
SW-WD-FS, Wash Down Weigh Cell Overview Datasheet |
SW-WD-FS Datasheet |
SW-WD-FS - Similar Products
- Weighing range up to 2,000 g, covered by 7 types
- Additive dead load range up to 2,000 g
- Multi-track applications starting from 70 mm centerline distance
- Stainless Steel housing
- Protection class IP 44
- Settling Time: < 120 ms
- Compact, Slim construction
- Binary I/O channels with customer-specific functions
| Type | Weigh Cell |
| Full Scale | 20 g, 50 g, 100 g, 200 g, 500 g, 1000 g, 2000 g |
| Dead Load | 150 g, 300 g, 400 g, 600 g, 1000 g, 2000 g |
| Interface | RS232, RS422, Binary I/O, Bus Operation |
| Linearity | 0.001 g, 0.002 g, 0.005 g, 0.01 g, 0.02 g, 0.05 g, 0.1 g |
| Resolution | 0.001 g, 0.002 g, 0.005 g, 0.01 g, 0.02 g, 0.05 g, 0.1 g |
