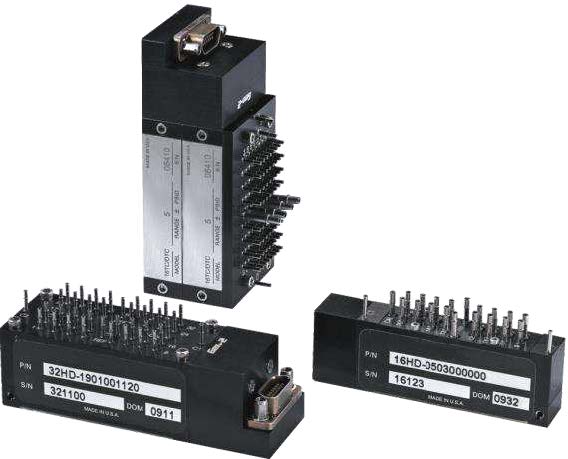

ESP-64HD, Miniature Pressure Scanner

ESP Pressure Scanners are miniature electronic differential pressure measurement units consisting of an array of silicon piezoresistive pressure sensors, one for each pressure port. The sensors are mounted on a common hybrid glass substrate...
ESP-64HD, Miniature Pressure Scanner
ESP-64HD, Miniature Pressure Scanner
Features:
  • Differential or Vented Gauge
  • Dry Noncorrosive Gases
  • Proof Pressure 4 Times Rated Pressure (≤ 30 psi)
  • Proof Pressure 1.5 Times Rated Pressure (> 30 psi)
  • 0.040" or 0.063" OD Stainless Steel Tubulation
  • Digital Temperature Compensation (Option)
Manufacturer:  Measurement Specialties Inc.
Quote
Datasheet
Description
Specifications
Downloads
Similar Products
ESP-64HD - Description

ESP Pressure Scanners are miniature electronic differential pressure measurement units consisting of an array of silicon piezoresistive pressure sensors, one for each pressure port. The sensors are mounted on a common hybrid glass substrate using a proprietary technique which maximizes long term stability. The outputs of the sensors are electronically multiplexed through a single onboard instrumentation amplifier at rates up to 70,000 Hz using binary addressing. The multiplexed amplified analog output is capable of driving long lengths of cable to a remote A/D converter.

The ESP scanners also incorporate a two position calibration manifold actuated by momentary pulses of control pressures. When placed in the calibrate position, all sensors are connected to a common calibration pressure port. A series of accurately measured pressures can be applied through this port to characterize the sensors, in place, at the condition to which they are being subjected. Proper and periodic on-line calibration maintains static errors within +/-0.03% or better of the full scale (FS) pressure range. The calibration manifold automatically switches between two common reference pressures to ensure a stable reference is applied during calibration. The calibration manifold incorporates a visual position indicator and utilizes a dynamic o-ring seal design for high reliability and easy servicing in the field.

Options include purge capability, isolated from the pressure sensors, to clear measurement lines of moisture and contamination as well as to prevent closure of model pressure taps during application of pressure sensitive paint. Other options include a nickel foil RTD output to monitor internal scanner temperature and Digital Temperature Compensation technology now incorporating PSI’s Gen-2 amplifier technology.

The Digital Temperature Compensation (DTC) option incorporates the latest PSI innovations in ESP technology including temperature signal outputs from each silicon pressure sensor, embedded EEPROM retaining factory calibration information including temperature characteristics, programmable dual gain amplifier with optional dual range calibration, calibration manifold position sensing, and internal sensor excitation regulation with sense output. DTC Series ESP scanners are supported by PSI’s DTC Initium System and the SDI configuration of the System 8400 to dramatically reduce calibration requirements. The ESP scanners are also supported by a variety of third party compatible systems.

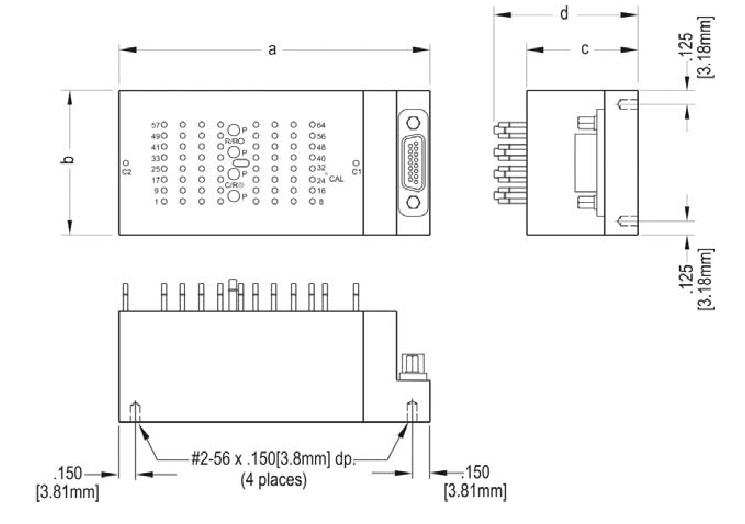

ESP-64HD - Specifications
TypeScanner
# of Channels64
Operational ModeDifferential
Full Scale1 psi
2.5 psi
5 psi
10 psi
15 psi
30 psi
45 psi
50 psi
100 psi
OutputESP
ESP-DTC
Precision±0.03 % FS
±0.06 % FS
±0.15 % FS
Excitation5 V DC
12 V DC
TechnologySilicon Piezoresistive
Min Temperature-25 °C
Max Temperature80 °C
ESP-64HD - Downloads
ESP-64HD - Similar Products
  • Differential or Vented Gauge
  • Dry Noncorrosive Gases
  • Proof Pressure 4 Times Rated Pressure (≤ 30 psi)
  • Proof Pressure 1.5 Times Rated Pressure (> 30 psi)
  • 0.040" or 0.063" OD Stainless Steel Tubulation
  • Digital Temperature Compensation (Option)
Type
Scanner
# of Channels
32
Operational Mode
Differential
Full Scale
1 psi,
2.5 psi,
5 psi,
10 psi,
15 psi,
30 psi,
45 psi,
50 psi,
100 psi
Output
ESP,
ESP-DTC
Precision
±0.03 % FS,
±0.06 % FS,
±0.15 % FS
  • This product has been discontinued & replaced with the 32HD-DTC
  • Differential or Vented Gauge
  • Dry Noncorrosive Gases
  • Proof Pressure 4 Times Rated Pressure (¡Ü 30 psi)
  • Proof Pressure 1.5 Times Rated Pressure (> 30 psi)
  • 0.040" or 0.063" OD Stainless Steel Tubulation
Type
Scanner
# of Channels
16
Operational Mode
Differential
Full Scale
1 psi,
2.5 psi,
5 psi,
10 psi,
15 psi,
30 psi,
45 psi,
50 psi,
100 psi
Output
ESP,
ESP-DTC
Precision
±0.03 % FS,
±0.06 % FS,
±0.15 % FS
