K-11, Material Tester
- Long-term Stability
- Tension & Compression
- Accuracy Class: 0.05% up to 1.0% F.S.
- Mechanical Overload Protection (≤ 20 kN, option)
- Outer Diameter: 90.0mm - 390.0mm
- Inner Diameter: 60.0mm - 270.0mm
- Height: 32.0mm - 117.0mm
- Connection: 2m Integral Cable
- Stainless Steel
The K-11 Pancake Load Cell is designed for tension and compression applications. The unit has a small outer diameter and is capable of measuring both tension and compression forces. The load cell’s shear web design yields high performance and offers high resistance to extraneous forces such as bending, side loads, and torsion. With such a wide capacity range this model is well suited for both low capacity as well as high capacity applications.

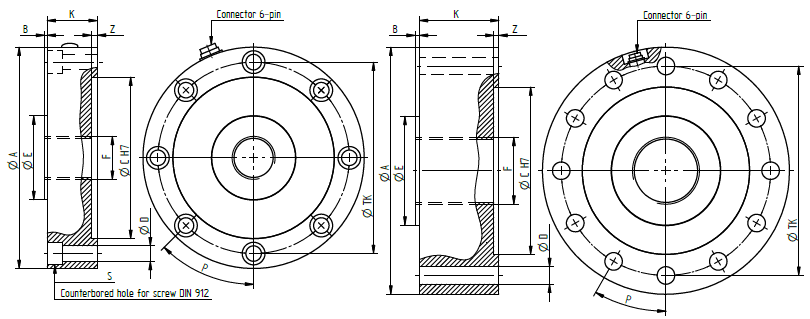

Dimensions of K-11 in mm
| Type | Pancake |
| Application | Tension & Compression |
| Full Scale | 112 lbs |
| 220 lbs | |
| 450 lbs | |
| 1120 lbs | |
| 2200 lbs | |
| 4500 lbs | |
| 11200 lbs | |
| 22000 lbs | |
| 45000 lbs | |
| 112000 lbs | |
| 224800 lbs | |
| 450000 lbs | |
| Output | 2 mV/V |
| Precision | ±0.05 % FS |
| ±0.1 % FS | |
| ±0.2 % FS | |
| ±0.4 % FS | |
| ±0.5 % FS | |
| ±1.0 % FS | |
| Excitation | 2 V - 12 V DC |
| IP Rating | IP52 |
| IP67 | |
| Min Temperature | 0 °C |
| Max Temperature | 60 °C |
Due to their compact design and construction, these tension and compression load cells can be operated without any problems in laboratories as well as in industrial environments. Made of stainless steel, these load cells can be integrated easily in existing structures, due to their standardized nominal characteristic value and simple assembly, model K-11 can be used to measure static, semi-static and dynamic tension and compression forces depending on the measurement task.
Areas of application include:
- Measurement of press-in and insertion forces
- Measurement of spring forces
- Measurement of shearing and cutting forces
- Force measurement and control during assembly
- Measurement of pressure on drilling machines
A load-centering plate mounted on the load cell can be used to measure joint lugs, tension forces in ropes, chains, etc.
Range of applications:
- Material Testing Machines
- Press-In Force Measurement
- Roll Force Applications
| K-11 to K-2529 | |
| K-11 |
K-11,Force Sensor Datasheet Datasheet |
- High Accuracy
- For Switch Cabinet Assembly, Width 23 mm, only
- Direct Connection to PLC
- Long Input Lead from GM 40 to Evaluation possible
- Easy to operate
- Voltage or Current Output
- DIN Rail Mount
- Rating: IP20
| Input Type | Strain Gauge |
| # of Inputs | 1 |
| Output Type | ±5 V DC, ±10 V DC, 4 - 20 mA |
| Max Bandwidth | 1 kHz, 5 kHz, 10 kHz |
| Excitation | 5 V DC, 10 V DC |
| Isolation | Yes |
- Portable Indicator
- Strain Gauge Input
- Range of Mathematical Functions
- Data Logger up to 3000 Meas. Values
- Protection Class: IP40
- RS-232 or USB Interface
- 10 Parameter Sets
- Mains, Battery or Accumulator Power Supply
| Input Type | DC Voltage, DC Current, Strain Gauge |
| No. of Inputs | 1 |
| Excitation | 5 V DC, 12 V DC |
| Interface | RS-232, USB |
| IP Rating | IP40 |
- High Accuracy
- Direct Connection to PLC
- Long Input Lead Possibility from LCV to Evaluation
- Voltage or Current Output
- Integrable in large Sensors as Board
- High Level of Protection IP67
- Tube housing; IP67
- Linearity; 0.02% F.S.
| Input Type | Strain Gauge |
| # of Inputs | 1 |
| Output Type | ±5 V DC, ±10 V DC, 0 - 20 mA, 4 - 20 mA |
| Max Bandwidth | 1 kHz |
| Excitation | 5 V DC |
| Isolation | No |
- Fast Measurement of up to 2500/s
- Up to 16 Bit Resolution
- Full Synchronism of both Measuring Channels
- Input Ranges for mV, V and mA
- Input Ranges combinable with each other
- Adjustment and Control Trigger via PC Software (USB)
| Input Type | Voltage, Current, Strain Gauge |
| Analog Inputs | 2 |
- Input Signals, 0.35 to 3.3 mV/V, 0…±1 V, 0…±5 V or 0/4…20 mA

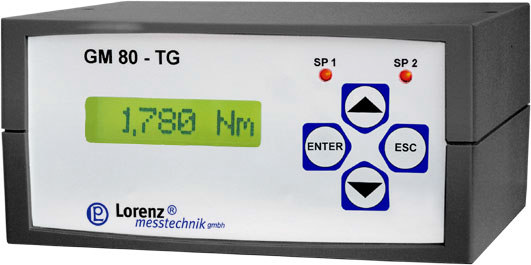

- Supply Power, 90…264 V AC or 16…30 V DC
- High Measuring Accuracy; 0.1% F.S. with 16 bit A/D
- Fast Data Logging of up to 1000/sec, for 3000 measurements
- Logging values can be exported by the RS232 or USB interface
- Functions such as tare & Min.-Max. are available
| Input Type | ±10 V DC, Strain Gage, mV/V, mA dc |
| # of Inputs | 1 |
| Excitation | 5 Vdc, 10 vdc, 0 - 12 V DC |
| Supply Power | 24 - 30 V DC, 115 V AC, 230 V AC |
- Dual-Range Sensor
- Tension & Compression
- Accuracy Class: ±0.2% or ±0.4%
- Outer Diameter: 130.0mm - 188.0mm
- Height: 52.0mm - 87.0mm
- Connection: 7-pin Series 712 Connector
- Stainless Steel
| Type | Pancake |
| Application | Tension & Compression |
| Full Scale | 220 lbs, 2200 lbs, 3400 lbs, 34000 lbs |
| Output | 1 mV/V |
| Precision | ±0.2 % FS, ±0.4 % FS |
| Excitation | 2 V - 12 V DC |
