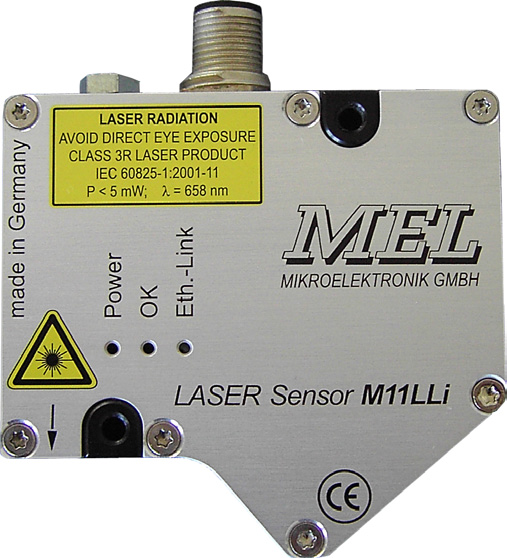

M11LLi, Laser Distance Sensor
The M11LLi has advantages on measuring edges and features absolute accuracy and linearity independent of the surface quality. his sensor is specialized for structured surfaces or for rough and at the same time mirror finished objects.
Features:
- Laser Sensor
- Rectangular Profile Housing
- Connection: 8-pin M12 Connector
- Sampling Rate: 30 kHz
- For Reflecting or Polished Surfaces
- For Non-Transparent Materials
- For Structured Surfaces
- Low-Noise
Quote
Datasheet
Specifications
Models & Accessories
Downloads
Similar Products
M11LLi - Specifications
| Type | Laser |
| Full Scale | 4 mm |
| 10 mm | |
| 20 mm | |
| 40 mm | |
| 50 mm | |
| 100 mm | |
| Near Gap | 20 mm |
| 25 mm | |
| 30 mm | |
| 40 mm | |
| 55 mm | |
| 90 mm | |
| Output | Ethernet |
| Non-Linearity | ±0.05 % FS |
| Resolution | 0.005 mm |
| 0.07 mm | |
| Excitation | 24 V DC |
| IP Rating | IP64 |
| Min Temperature | 0 °C |
| Max Temperature | 40 °C |
M11LLi - Models & Accessories
Models
| M11LLi/4 | 4mm Range, 20mm Near Gap, Resolution 2.8µm |
| M11LLi/10 | 10mm Range, 25mm Near Gap, Resolution 7µm |
| M11LLi/20 | 20mm Range, 40mm Near Gap, Resolution 14µm |
| M11LLi/40 | 40mm Range, 30mm Near Gap, Resolution 28µm |
| M11LLi/50 | 50mm Range, 55mm Near Gap, Resolution 35µm |
| M11LLi/100 | 100mm Range, 50mm Near Gap, Resolution 70µm |
M11LLi - Downloads
M11LLi Series Overview Datasheet |
M11LLi - Similar Products
- Laser Sensor
- 100 kHz Measuring Frequency
- Square Profile
- Connection: 25-pin D-SUB Connector
- Reliable Results also with White/Black Transition
- Replaceable Protection Glasses
| Type | Laser |
| Full Scale | 0.5 mm [0.02"], 2 mm, 4 mm, 10 mm, 20 mm, 50 mm, 100 mm, 200 mm |
| Near Gap | 22 mm, 23 mm, 23.8 mm, 40 mm, 55 mm, 115 mm, 170 mm, 240 mm |
| Output | 0 - 5 V DC, 0 - 10 V DC, ±5 V DC, ±10 V DC, 0 - 20 mA, 4 - 20 mA, Ethernet |
| Non-Linearity | ±0.30 % FS |
| Resolution | 0.33 mm |
- Laser Sensor
- 10 kHz Measuring Frequency
- Square Profile Housing
- Connection: 25-pin D-SUB Connector
- Reliable Results also with White/Black Transition
- Replaceable Protection Glasses
| Type | Laser |
| Full Scale | 0.5 mm [0.02"], 2 mm, 4 mm, 10 mm, 20 mm, 50 mm, 100 mm, 200 mm |
| Near Gap | 22 mm, 23 mm, 23.8 mm, 40 mm, 115 mm, 200 mm, 240 mm |
| Output | 0 - 5 V DC, 0 - 10 V DC, ±5 V DC, ±10 V DC, 0 - 20 mA, 4 - 20 mA, Ethernet |
| Non-Linearity | ±0.20 % FS |
| Resolution | 0.20 mm |
- Laser Scanner
- Integrated Controller
- Rectangular Profile Housing
- Connection: 12-pin 4 pole Female Connector
- Sampling Rate: 100 Hz/170 Hz
- Laser Protection Class: 2M, 3R or 3B
- Surface: White to Black, Matte to Glossy
- Protective Window (Option)
| Type | Laser |
| Full Scale | 6 mm, 10 mm, 20 mm, 40 mm, 60 mm, 80 mm, 120 mm, 260 mm, 400 mm, 600 mm, 1000 mm |
| Near Gap | 38 mm, 50 mm, 53 mm, 55 mm, 63 mm, 65 mm, 84 mm, 150 mm, 325 mm, 500 mm, 650 mm, 845 mm |
| Output | Ethernet |
| Non-Linearity | ±0.20 % FS |
| Resolution | 0.003 mm |
