IW-DP, EMFR Weigh Cell

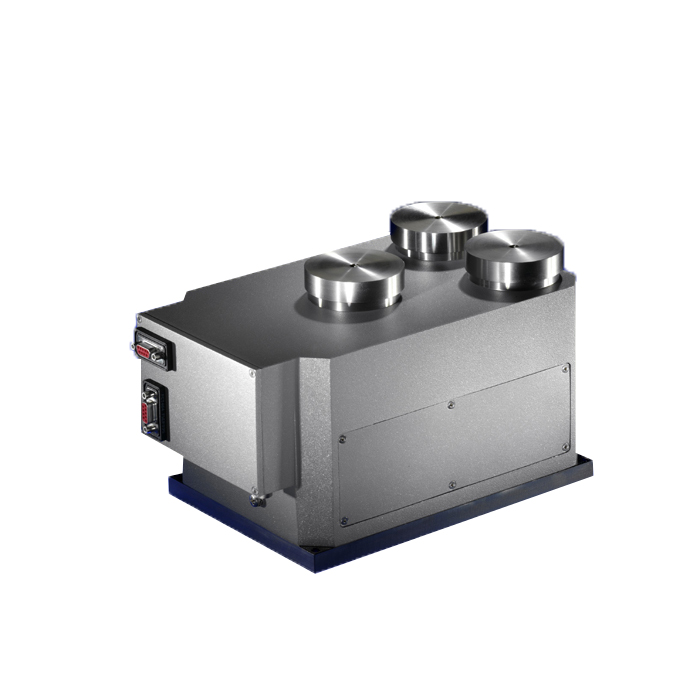

The series IW-DP Weigh Cells cover the weighing range up to 15,000 g. They have been specifically designed as compact sensor components, meaning they are especially suited for installation into checkweighers, price labelling systems, packaging...
Features:
- Weighing range up to 15 kg, covered by 6 models
- Additive dead load range up to 15 kg
- Protection class up to IP 65
- Interface 1: Profibus-DP
- Interface 2: SUB-D9 (RS 232)
- Painted Aluminum Housing
- Settling Time: < 100 ms, 120 ms or 200 ms
- Compact Design
Manufacturer: Wipotec Gmbh
Quote
Datasheet
Description
Specifications
Models & Accessories
Downloads
Similar Products
IW-DP - Description
The series IW-DP Weigh Cells cover the weighing range up to 15,000 g. They have been specifically designed as compact sensor components, meaning they are especially suited for installation into checkweighers, price labelling systems, packaging and filling machines, parcel and letter sorting systems. The large additive dead load range favours the mounting of conveyor belts or weighing platforms without limiting the weighing range.
The Weigh Cell comes standard equipped to supply final weighing values via a Profibus-DP interface as ready to connect modular components. The integrated software filters can be configured multifunctional, enabling optimal adaptation of the weighing system to the respective ambient conditions. The Weigh Cells extensive command set facilitates simplified control engineering integration.
The Weigh Cell comes standard equipped to supply final weighing values via a Profibus-DP interface as ready to connect modular components. The integrated software filters can be configured multifunctional, enabling optimal adaptation of the weighing system to the respective ambient conditions. The Weigh Cells extensive command set facilitates simplified control engineering integration.
IW-DP - Specifications
| Type | Weigh Cell |
| Full Scale | 750 g |
| 1500 g | |
| 3500 g | |
| 7500 g | |
| 15000 g | |
| Dead Load | 4500 g |
| 7500 g | |
| 15000 g | |
| Interface | RS232 |
| Profibus | |
| Linearity | 0.05 g |
| 0.2 g | |
| 0.5 g | |
| Resolution | 0.02 g |
| 0.05 g | |
| 0.1 g | |
| 0.2 g | |
| 0.5 g | |
| 1 g | |
| IP Rating | IP44 |
| IP65 |
IW-DP - Models & Accessories
Models
| IW-D-8K-750G | Weigh Range 750 g, Dead Load 4500 g |
| IW-D-8K-1500G | Weigh Range 1500 g, Dead Load 4500 g |
| IW-D-15K-3500G | Weigh Range 3500 g, Dead Load 7500 g |
| IW-D-15K-7500G | Weigh Range 7500 g, Dead Load 7500 g |
| IW-D-40K-7500G | Weigh Range 7500 g, Dead Load 15000 g |
| IW-D-40K-15K | Weigh Range 15000 g, Dead Load 15000 g |
IW-DP - Downloads
IW-DP Datasheet |
IW-DP - Similar Products
- Weighing range up to 15 kg, 5 Models
- Additive dead load range up to 15 kg
- Stainless Steel Housing
- Protection class up to IP 65
- Binary I/O channels with customer-specific functions
- Interface 1: CAN or RS 422
- Interface 2: RS 232 for service and configuration
- Settling Time: < 100 ms, < 120 ms or < 200 ms
| Type | Weigh Cell |
| Full Scale | 750 g, 1500 g, 3750 g, 7500 g, 15000 g |
| Dead Load | 4000 g, 8500 g, 15000 g |
| Interface | RS232, RS422, CANbus, Binary I/O, Bus Operation |
| Linearity | 0.02 g, 0.04 g, 0.1 g, 0.2 g, 0.4 g |
| Resolution | 0.01 g, 0.02 g, 0.05 g, 0.1 g, 0.2 g, 0.5 g, 1 g |
