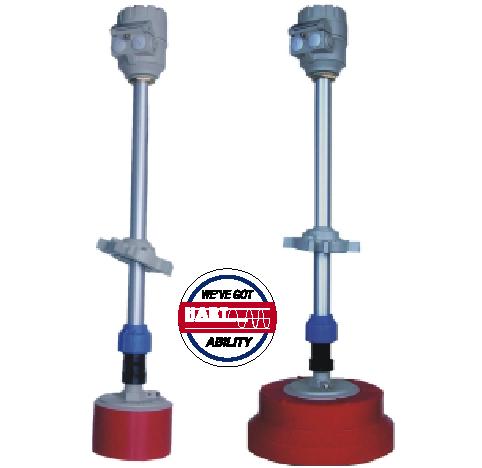

L4660SE/SG, for Liquid Levels
The SmartSonicTM L4660-SE/SG-300 series are TWO-WIRE Loop-Powered SMART ultrasonic level transmitters that incorporate Princo’s unique narrow beam technology. SmartSonicTM compact transmitters include field proven innovative advanced,...
Features:
- Range: 20ft, 26ft, 33ft, 49ft available; depending on transducer material
- 2 x 1/2" NPT Mounting
- Loop power test connectors: ammeter plug-in, 200 mV, 0.5%
- Display: 6 digits, icons and bargraph (SAP-200 display module only)
- Two-Wire Loop Powered Operation
- Narrow Beam Angle (±2.5 ° from center axis)
- Open channel flow characterization
- Vessel volume conversion
- 32-point linearization
- Full temperature compensation: 22 °F to +194 °F
- Fixed target suppression
- Simple push-button programming
Quote
Datasheet
Description
Specifications
Downloads
Similar Products
L4660SE/SG - Description
The SmartSonicTM L4660-SE/SG-300 series are TWO-WIRE Loop-Powered SMART ultrasonic level transmitters that incorporate Princo’s unique narrow beam technology.
SmartSonicTM compact transmitters include field proven innovative advanced, process
adaptive signal processing software to identify and validate the surface signal.
Princo’s SmartSonicTM utilizing innovative patented technology, is the best ultrasonic
level measurement system on the market today.
Operating modes:
Basic: Simple start up and 4/20 mA programming without Display Module option.
Sophisticated: Using the Display Module which includes a 6 digit custom LCD display, the operator can choose between a menu driven QUICKSET and full parameter programming.
SmartSonicTM compact transmitters include field proven innovative advanced, process
adaptive signal processing software to identify and validate the surface signal.
Princo’s SmartSonicTM utilizing innovative patented technology, is the best ultrasonic
level measurement system on the market today.
Operating modes:
Basic: Simple start up and 4/20 mA programming without Display Module option.
Sophisticated: Using the Display Module which includes a 6 digit custom LCD display, the operator can choose between a menu driven QUICKSET and full parameter programming.
L4660SE/SG - Specifications
| Type | Ultrasonic |
| Full Scale | 0 - 20 ft |
| 0 - 26 ft | |
| 0 - 33 ft | |
| 0 - 49 ft | |
| Output | 4 - 20 mA |
| Relay | |
| Digital HART | |
| Display Indicator | |
| Precision | ±0.05 % FS |
| ±0.20 % FS | |
| Excitation | 12 - 36 V DC |
| IP Rating | NEMA 4X |
| NEMA 6 | |
| Min Temperature | -30 °C |
| Max Temperature | 90 °C |
L4660SE/SG - Downloads
L4660 Series Datasheet |
