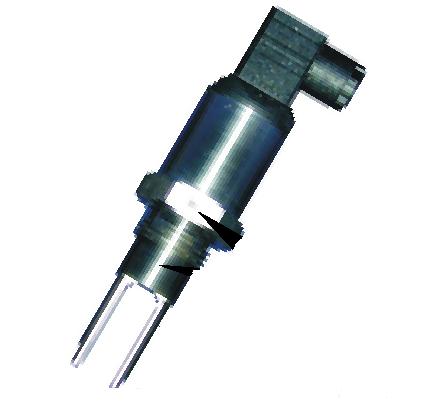

L3550, Frequency Plus Amplifier
The Princo Resonator™ level switch utilizes dual mode resonance sensing technology to establish and maintain tine resonance generated from its low energy compact electronic circuitry. When the material level reaches the resonating tines,...
Features:
- Dielectric Change Insensitive
- Small Rugged Construction
- Easy Installation
- Type: On/Off Level Control, RF Remote Control
- Mechanical Protection: NEMA 4X
- Outputs: 20 to 255 VAC, Serial Conn. w/ Load, Bi-Colour LED
- Temperature: Liquid: -40°C to +130°C
- Ambient: -40°C to +70°C
- 316 SS, 1" NPT Mounting
- Pressure: 580 psi max.
- Medium: Liquid or Dry Material
- No Calibration - Ever, Maintenance Free
Quote
Datasheet
Description
Specifications
Downloads
L3550 - Description
The Princo Resonator™ level switch utilizes dual mode resonance sensing technology to establish and maintain tine resonance generated from its low energy compact electronic circuitry.
When the material level reaches the resonating tines, it produces a change in the resonance pattern. This change is sensed by the sophisticated electronics which activates the output signal.
Unaffected by viscosity, foam, conductivity, dielectric, suspended solids, bubbles and/ or turbulence, the Resonator™ level switch is ideal for a variety of liquid or free flowing granules or powder level applications, including: run-dry protection, fill/dump control and vessel overfill.
When the material level reaches the resonating tines, it produces a change in the resonance pattern. This change is sensed by the sophisticated electronics which activates the output signal.
Unaffected by viscosity, foam, conductivity, dielectric, suspended solids, bubbles and/ or turbulence, the Resonator™ level switch is ideal for a variety of liquid or free flowing granules or powder level applications, including: run-dry protection, fill/dump control and vessel overfill.
L3550 - Specifications
| Type | Capacitive Probe |
| Full Scale | 0 - 0.5 ft |
| Output | V AC |
| Serial | |
| Display Indicator | |
| Excitation | 20 - 255 V AC |
| IP Rating | NEMA 4X |
| Min Temperature | -40 °C |
| Max Temperature | 70 °C |
