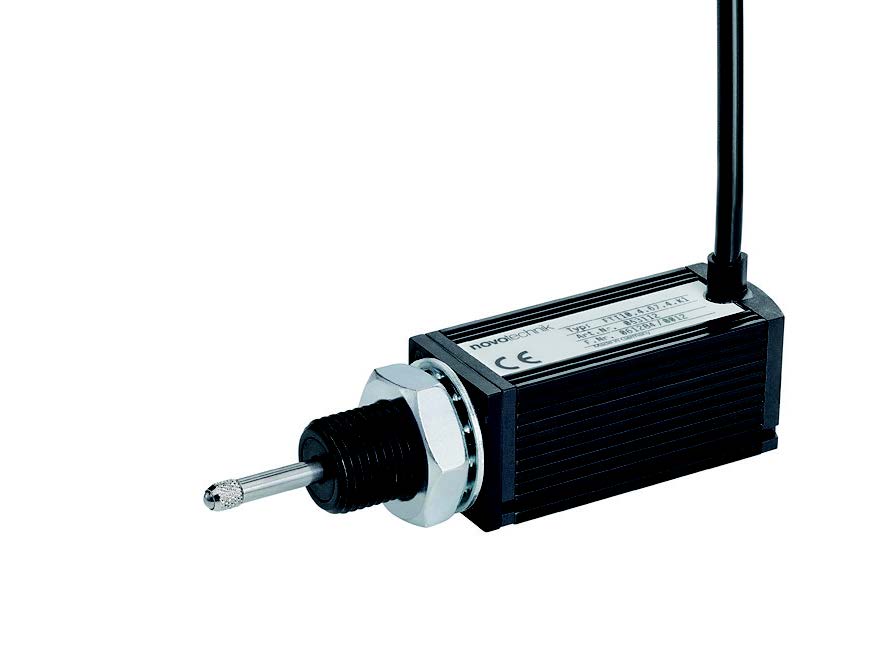

FTI-10, Return Spring Non-Contact Inductive Position Transducer
FTI inductive precision sensors transform linear displacement into an analog output signal. A differential transformer in the compact housing is equipped with a moveable core.
Features:
- Rectangular Profile Housing
- Anodized Aluminum Housing
- Connection: 2m Integral Cable
- Wear-Free, Unlimited Mechanical Life Span
- Complete Electrical Changeability
Manufacturer: Novotechnik
Quote
Datasheet
Specifications
Downloads
Similar Products
FTI-10 - Specifications
| Type | LVDT |
| Full Scale | 12 mm |
| Output | 0 - 20 mA |
| 4 - 20 mA | |
| Non-Linearity | ±0.10 % FS |
| Resolution | Infinitesimal |
| Excitation | 24 V DC |
| IP Rating | IP50 |
| IP67 | |
| Min Temperature | -25 °C |
| Max Temperature | 70 °C |
FTI-10 - Downloads
FTI-10 Non-Contacting Inductive Position Transducer Datasheet |
Novotechnik Displacement Accessories Datasheet |
