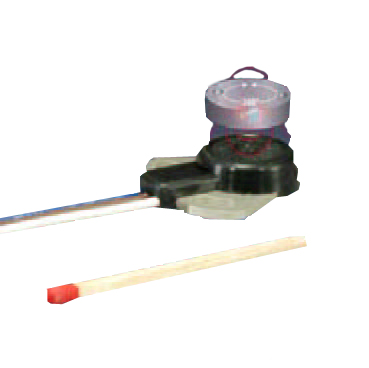

PRAS21, Magnetic Absolute Rotary Displacement Sensor
The PRAS21 rotary sensor has a very compact design that makes it very versatile for many applications. Its contactless measurement ensures that the unit remains wear-free through its lifetime.
Features:
- Very Compact, Contactless Angle Sensor
- Analog Output
- Epoxy Glass Fiber, Thermoplastic Housing
- Connection: 0.3m Single Wire ETFE
- Other Outputs Available on Request
Manufacturer: ASM Sensors, Gmbh
Quote
Datasheet
Specifications
Downloads
Similar Products
PRAS21 - Specifications
| Type | Analog |
| Non-Contact | |
| Full Scale | 15 - 360° |
| Max Speed | Unlimited |
| Output | 0.5 - 4.5 V DC |
| Non-Linearity | ±0.50 % FS |
| Resolution | 0.1° |
| 0.36° | |
| Excitation | 5 V DC |
| IP Rating | IP60 |
| Min Temperature | -40 °C |
| Max Temperature | 85 °C |
PRAS21 - Downloads
PRAS21 Datasheet |
