SW-D-FS-EX, EMFR Weigh Cell

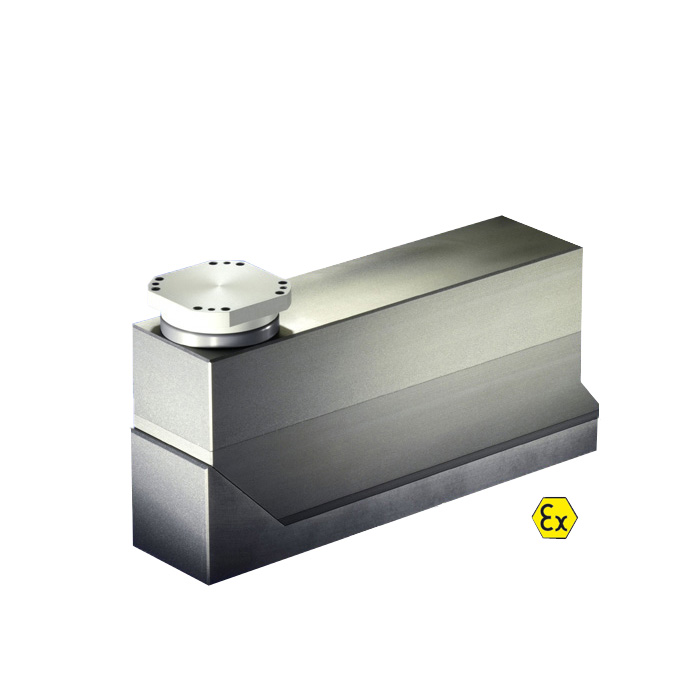

The series SW-D-FS-EX Weigh Cells cover the weighing range up to 2,000 g. They have been specifically designed as compact sensor components, meaning they are especially suited for installation into multi-track applications and everywhere where...
Features:
- Weighing range up to 2,000 g, covered by 5 models
- Additive dead load range up to 2,000 g
- Multi-track applications starting from 72 mm centerline distance
- Binary I/O channels with customer-specific functions
- Interface 1: CAN or RS 422
- Interface 2: RS 232 for service and configuration
- Anodized Aluminum Housing
- Protection class: IP 54
- Dust-proof, explosion-proof
- Settling Time: < 120 ms
- Sampling Rate: 1 ms
- Compact, Slim construction
- Docking station
Manufacturer: Wipotec Gmbh
Quote
Datasheet
Description
Specifications
Models & Accessories
Downloads
Similar Products
SW-D-FS-EX - Description
The series SW-D-FS-EX Weigh Cells cover the weighing range up to 2,000 g. They have been specifically designed as compact sensor components, meaning they are especially suited for installation into multi-track applications and everywhere where small frame sizes are demanded.
By using a special construction, all Weigh Cells are suitable for use in explosive areas. They correspond to protection type II 3 G Ex nA IIB T4 and II 3 D Ex tD IP54 100°C and can be used inside zone 2 (gas) and zone 22 with non-conductive dust. The docking station facilitates an easy exchange of the Weigh Cell during cleaning and service work.
By using a special construction, all Weigh Cells are suitable for use in explosive areas. They correspond to protection type II 3 G Ex nA IIB T4 and II 3 D Ex tD IP54 100°C and can be used inside zone 2 (gas) and zone 22 with non-conductive dust. The docking station facilitates an easy exchange of the Weigh Cell during cleaning and service work.
SW-D-FS-EX - Specifications
| Type | Weigh Cell |
| Full Scale | 100 g |
| 200 g | |
| 500 g | |
| 1000 g | |
| 2000 g | |
| Dead Load | 400 g |
| 600 g | |
| 1000 g | |
| 2000 g | |
| Interface | RS232 |
| RS422 | |
| CANbus | |
| Binary I/O | |
| Bus Operation | |
| Linearity | 0.002 g |
| 0.004 g | |
| 0.01 g | |
| Resolution | 0.001 g |
| 0.002 g | |
| 0.005 g | |
| 0.01 g | |
| 0.02 g | |
| IP Rating | IP54 |
SW-D-FS-EX - Models & Accessories
Models
| SW-100/400-D-FS-EX | Weigh Range 100 g, Dead Load 400 g |
| SW-200/600-D-FS-EX | Weigh Range 200 g, Dead Load 600 g |
| SW-500/1000-D-FS-EX | Weigh Range 500 g, Dead Load 1000 g |
| SW-1000/1000-D-FS-EX | Weigh Range 1000 g, Dead Load 1000 g |
| SW-2000/2000-D-FS-EX | Weigh Range 2000 g, Dead Load 2000 g |
SW-D-FS-EX - Downloads
SW-D-FS-EX Datasheet |
SW-D-FS-EX - Similar Products
- Weighing range up to 2,000 g, covered by 7 models
- Additive dead load range up to 2,000 g
- Multi-track applications starting from 72 mm centerline distance
- Binary I/O channels with customer-specific functions
- Interface 1: CAN or RS 422
- Interface 2: RS 232 for service and configuration
- Anodized Aluminum Housing
- IP 44 Protection class
| Type | Weigh Cell |
| Full Scale | 20 g, 50 g, 100 g, 200 g, 500 g, 1000 g, 2000 g |
| Dead Load | 150 g, 300 g, 400 g, 600 g, 1000 g, 2000 g |
| Interface | RS232, RS422, CANbus, Binary I/O, Bus Operation |
| Linearity | 0.0001 g, 0.0002 g, 0.0004 g, 0.001 g, 0.002 g, 0.004 g, 0.01 g |
| Resolution | 0.00005 g, 0.0001 g, 0.0002 g, 0.0005 g, 0.001 g, 0.002 g, 0.005 g, 0.01 g, 0.02 g |
- Weighing range up to 2,000 g, covered by 7 models
- Additive dead load range up to 2,000 g
- Multi-track applications starting from 60 mm centerline distance
