SCM9B-D161, Frequency Input Digital Signal Conditioner DIN Rail Module
- Frequency Input Module
- 500 V Transformer Isolation
- Accuracy: ± 0.01%
- DIN Rail Mount
- Module
- Input Protected to 250 V AC Continuous

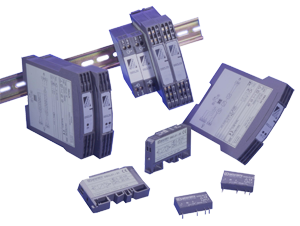

Dataforth offers high quality SCM9B products providing cost effective protection and conditioning for a wide range of valuable industrial control signals and systems. Our extensive line includes fixed and programmable sensor-to-computer and computer-to-analog output interface modules, RS-232/RS-485 converters, RS-485 repeaters, and associated bacNplanes, accessories, and applications software. All products are European EMC Directive Compliant.
SCM9B-1000/2000/5000/D100 Sensor-to-Computer Modules.
These isolated modules provide complete sensor/RS-232C or RS interfaces with bit measurement resolution. They accept a variety of voltage, current, thermocouple, RTD/thermistor, strain gage, timer/frequency, and multichannel digital inputs/outputs. “2000” Series modules include additional programmable features such as AS&II output scaling to desired engineering units and linearization using straight-line segment approximation. “5000” Series modules provide four analog input channels. D Series modules are DIN rail mountable.
| Interface | RS-232 |
| RS-485 | |
| Input Type | Frequency |
| # of Inputs | 1 |
| Output Type | RS-232 |
| RS-485 | |
| Isolation | Yes |
| Supply Power | 5 V DC |
SCM9B-1000/2000/5000/D100 Datasheet |
SCM9B Overview Datasheet |
SCM9B Accessories Datasheet |
AN101 RMS_Voltage_Current App Note |
AN121 RiseTime vs BW App Note |
AN126 Tuning_Surge_Tank_Level_Control_Loops App Note |
AN128 RMS Revisited App Note |
AN129 Harmonics and utility costs App Note |
Hysteresis Specifications Tech Note |
Faraday's Law of Induction Tech Note |
Data Acquisition Systems Accessories Tech Note |
Signal Conditioner Surge Withstand Capability Tech Note |
Signal-to-Noise Ratio, SNR Tech Note |
Signal Conditioning Measured vs Combinational Error Tech Note |
When Good Grounds Go Bad Tech Note |
Sample Test Report Tech Note |
Why Should Sensors Be Isolated Tech Note |
