DSCA32, Current Input Analog Signal Conditioner DIN Rail Modules
The DSCA32 input module provides a single channel of current input which is filtered, isolated, amplified and converted to a high-level analog output. The module has excellent stability over time and do not require recalibration.
Features:
- Current Input Module
- 1500 V Transformer Isolation
- True 3-Way Isolation
- Accuracy: ± 0.03%
- DIN Rail Mounted Module
- ANSI/IEEE C37.90.1 Transient Protection
- Input Protected to 240 V AC Continuous
Manufacturer: Dataforth
Quote
Datasheet
Specifications
Models & Accessories
Downloads
Similar Products
DSCA32 - Specifications
| Input Type | 0 - 20 mA |
| 4 - 20 mA | |
| ±20 mA | |
| # of Inputs | 1 |
| Output Type | 0 - 10 V DC |
| ±10 V DC | |
| 0 - 20 mA | |
| 4 - 20 mA | |
| Max Bandwidth | 100 Hz |
| Isolation | Yes |
| Supply Power | 15 - 30 V DC |
DSCA32 - Models & Accessories
Models
| DSCA32-01 | 4-20 mA Input, 0-10 V Output |
| DSCA32-02 | 0-20 mA Input, 0-10 V Output |
| DSCA32-03 | ± 20 mA Input, ± 10 V Output |
| DSCA32-01C | 4-20 mA Input, 4-20 mA Output |
| DSCA32-02C | 0-20 mA Input, 4-20 mA Output |
| DSCA32-01E | 4-20 mA Input, 0-20 mA Output |
| DSCA32-02E | 0-20 mA Input, 0-20 mA Output |
DSCA32 - Downloads
DSCA32 V3 Datasheet |
DSCA32 Datasheet |
DSCA Series Datasheet |
DSCA Dimensions Drawings |
DSCA Calibration Procedure App Note |
Sample Test Report Tech Note |
AN101 RMS_Voltage_Current App Note |
AN105 Resistance Temperature Detector V2 App Note |
AN121 RiseTime vs BW App Note |
AN126 Tuning_Surge_Tank_Level_Control_Loops App Note |
AN128 RMS Revisited App Note |
AN129 Harmonics and utility costs App Note |
AN801 DSCA Calibration Procedure App Note |
Hysteresis Specifications Tech Note |
Faraday's Law of Induction Tech Note |
Data Acquisition Systems Accessories Tech Note |
Signal Conditioner Surge Withstand Capability Tech Note |
Signal-to-Noise Ratio, SNR Tech Note |
Signal Conditioning Measured vs Combinational Error Tech Note |
When Good Grounds Go Bad Tech Note |
Why Isolation (White Paper) Tech Note |
DSCA32 - Similar Products
- 2-Wire Transmitter Interface Module with Loop Power
- 1500 V Transformer Isolation
- True 3-Way Isolation
- Accuracy: ± 0.03%
- DIN Rail Mounted Module
- ANSI/IEEE C37.90.1 Transient Protection
- Input Protected to 240 V AC Continuous
| Input Type | 4 - 20 mA |
| # of Inputs | 1 |
| Output Type | 0 - 10 V DC, 2 - 10 V DC |
| Max Bandwidth | 100 Hz |
| Excitation | 20 V DC |
| Isolation | Yes |

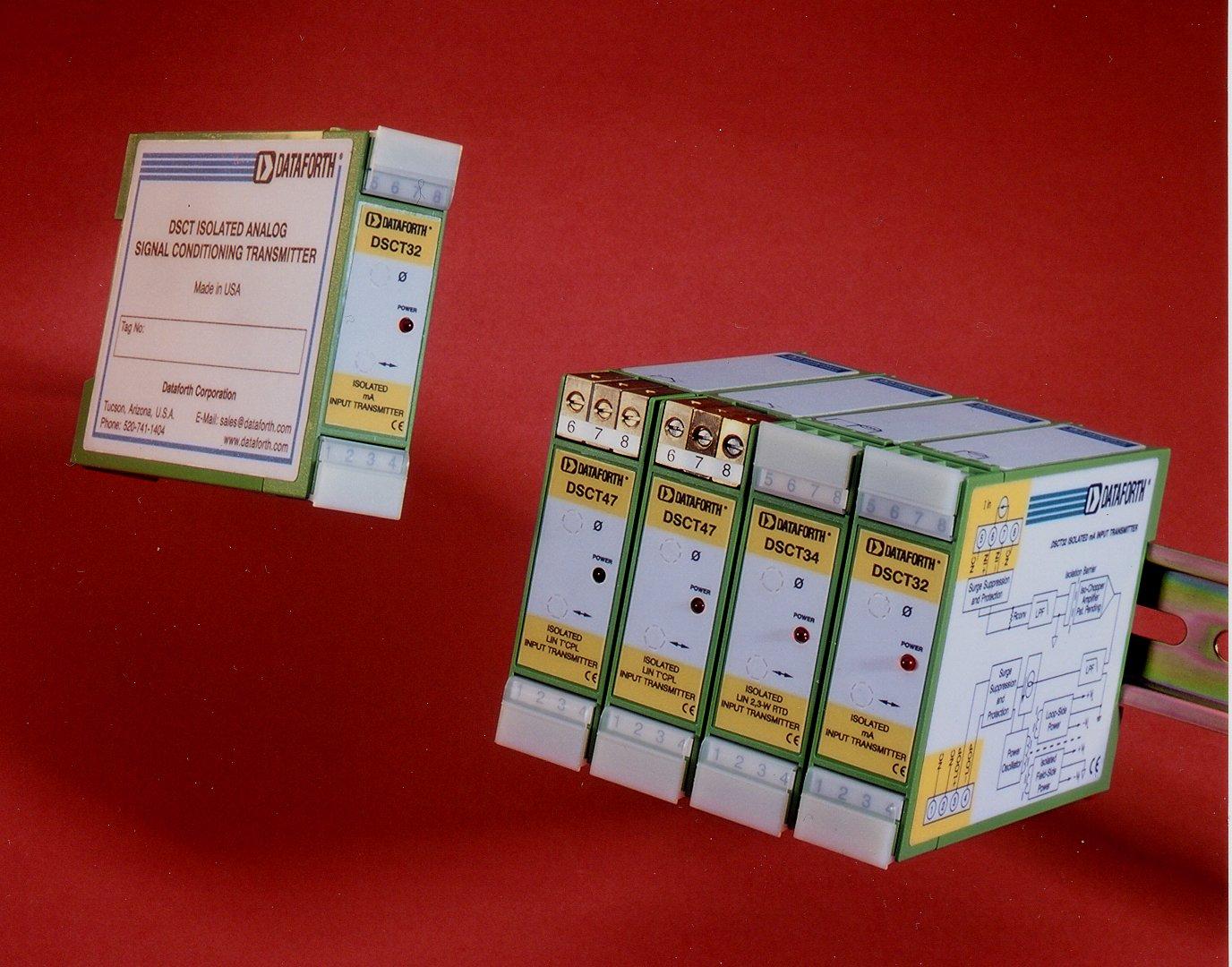

- Accepts Milliamp Level Signals
