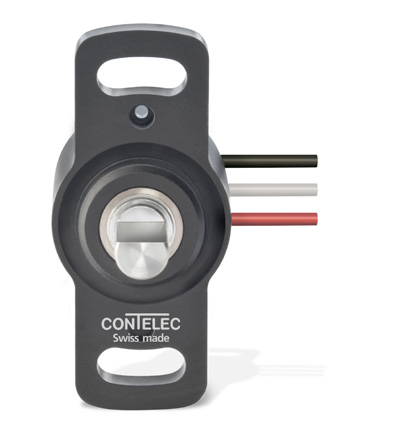

Vert-X 2400, Hall Effect Rotary Displacement Sensor
The Vert-X 2400 series of rotary sensors is robustly designed with a contactless measurement principle to ensure a very long lifetime of at least 20 million movements.
Features:
- Compact Contactless Rotary Sensor
- Ratiometric Output
- 6.35mm D-shaped Shaft
- Connection: 3 Wires
- Full Redundancy Possible
- Long Lifetime
Manufacturer: Novotechnik
Quote
Datasheet
Specifications
Downloads
Similar Products
Vert-X 2400 - Specifications
| Type | Analog |
| Non-Contact | |
| Full Scale | 360° |
| Max Speed | 120 RPM |
| Output | Ratiometric |
| Non-Linearity | ±1.00 % FS |
| Resolution | 0.1° |
| Excitation | 5 V DC |
| IP Rating | IP54 |
| IP67 | |
| Min Temperature | -40 °C |
| Max Temperature | 125 °C |
Vert-X 2400 - Downloads
Vert-X 2400 5V Ratiometric Rotary Sensor Datasheet |
Vert-X 2400 - Similar Products
- Compact Contactless Rotary Sensor
- Ratiometric, PWM, SPI or Analog Output
- 5V or 24V Excitation
- 6mm D-shaped Shaft
- Connection: 3-pole Cable
- Connection: SPI: 5 Wires
- Long Lifetime
| Type | Analog, Non-Contact |
| Full Scale | 360° |
| Max Speed | 120 RPM |
| Output | 0 - 5 V DC, 0 - 10 V DC, 4 - 20 mA, Ratiometric, PWM, SPI |
| Non-Linearity | ±0.10 % FS, ±0.30 % FS |
| Resolution | 0.02°, 0.1° |
- Compact Contactless Rotary Sensor
- Ratiometric, PWM, SPI, SSI or Incremental Output
- Connection: Ratio.: 3 Wires
- Connection: PWM: 3 Wires
- Connection: SPI: 6-pole Ribbon Cable
- Long Lifetime
| Type | Analog, Non-Contact |
| Full Scale | 360° |
| Max Speed | 120 RPM |
| Output | Ratiometric, PWM, SPI |
| Non-Linearity | ±0.30 % FS |
| Resolution | 0.02°, 0.1° |
- Compact Touchless Rotary Sensor
- Ratiometric or Incremental Output
- Single or Bi-Directional Incremental Output
- 5V or 24V Excitation
- Connection: Ratio: 3 Wires
- Connection: Incr.: Single: 4 Wires
- Connection: Incr.: Bi-Dir: 5 Wires
- Redundant Ratiometric Model Possible
| Type | Encoder, Analog, Non-Contact |
| Full Scale | 360°, Continuous |
| Max Speed | Unlimited |
| Output | Ratiometric, Quadrature TTL |
| Non-Linearity | ±0.30 % FS, ±0.50 % FS, ±1.00 % FS |
| Resolution | 0.1° |
- Contactless Rotary Sensor
- Ratiometric, PWM, SPI, or Analog Output
- 5V or 24V Excitation
- Stainless Steel Housing
- 6mm D-shaped Shaft
- Connection: 3-pole Shielded Cable
- Connection: SPI: 6-pole Shielded Cable
- Long Lifetime
| Type | Analog, Non-Contact |
| Full Scale | 360° |
| Max Speed | 6000 RPM |
| Output | 0 - 5 V DC, 0 - 10 V DC, 4 - 20 mA, Ratiometric, PWM, SPI |
| Non-Linearity | ±0.10 % FS, ±0.30 % FS |
| Resolution | 0.02°, 0.1° |
- Contactless Rotary Sensor
- Analog, SSI, SPI or Incremental Output
- Temperature-Resistant Plastic Housing
- Stainless Steel Shaft
- Multiple Shaft Designs Available
- Connection: Integral Cable or M12 Connector
- Long Lifetime
- Redundant Output (Option)
| Type | Encoder, Analog, Non-Contact |
| Full Scale | 30 - 360°, Continuous |
| Max Speed | 120 RPM, 800 RPM |
| Output | 0 - 5 V DC, 0 - 10 V DC, 4 - 20 mA, Ratiometric, Quadrature TTL, SSI, SPI |
| Non-Linearity | ±0.50 % FS |
| Resolution | 0.02°, 0.1° |
