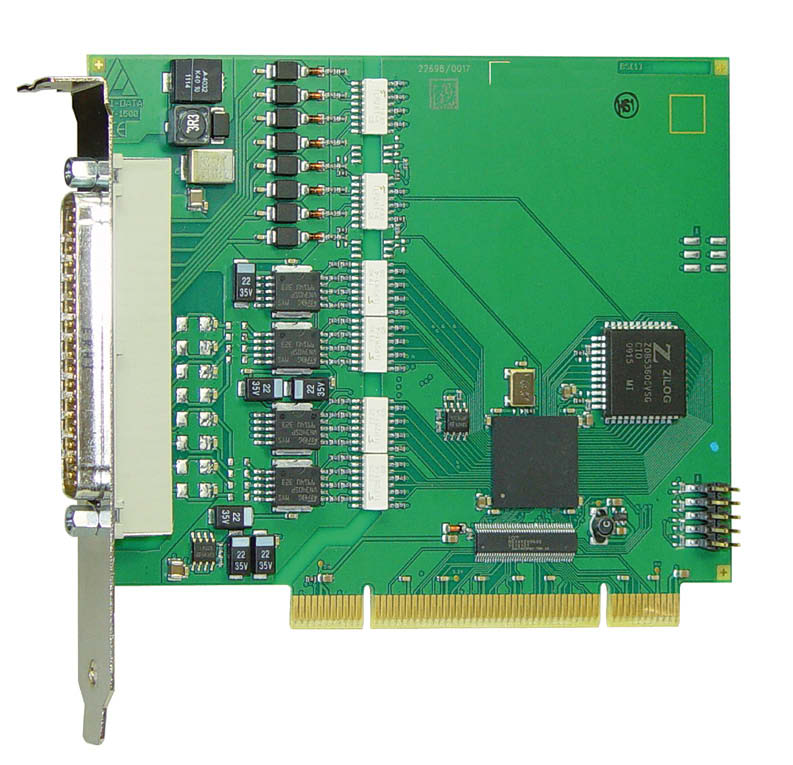

APCI-1016, Digital Input Board for PCI
The APCI-1016 digital input board features optical isolation, creeping distance, reverse voltage protection and protection against fast transients, overvoltage, electrostatic discharge and high-frequency EMI. All inputs are filtered.
Features:
- Digital Input Board for PCI
- 16 Digital Inputs
- Optical Isolation 1000 V
- Input Filters
- Reverse Voltage Protection
Manufacturer: ADDI-DATA GmbH
Quote
Datasheet
Specifications
Downloads
Similar Products
APCI-1016 - Specifications
| Borad Type | PCI |
| Input Type | Digital |
| Digital Inputs | 16 |
APCI-1016 - Downloads
APCI-1016 Digital Input Board Datasheet |
APCI-1016 - Similar Products
- Servo or Stepper Motor Motion Control Board for PCI
- 16 Digital Input Channels, Isolated
- 8 Digital Output Channels, Isolated
- For 3 Servo or Stepper Motors
- Onboard 64-bit RISC Processor
- Ethernet/EtherCAT Interfaces
- Incremental Encoder, SSI or EnDat 2.2
- 16-bit Setpoint Value Output
| Borad Type | PCI |
| Input Type | Digital |
| Digital Inputs | 16 |
| Digital Outputs | 8 |
| Interface | EtherCAT |

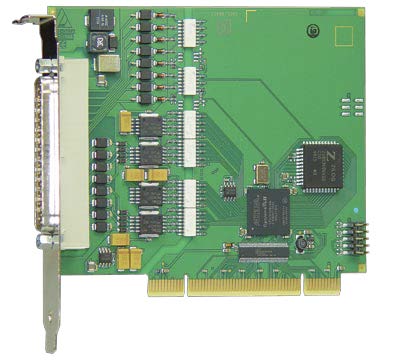

- Digital I/O Board for PCI
