CRFX/DI-16-HV, imc CRONOSflex Module

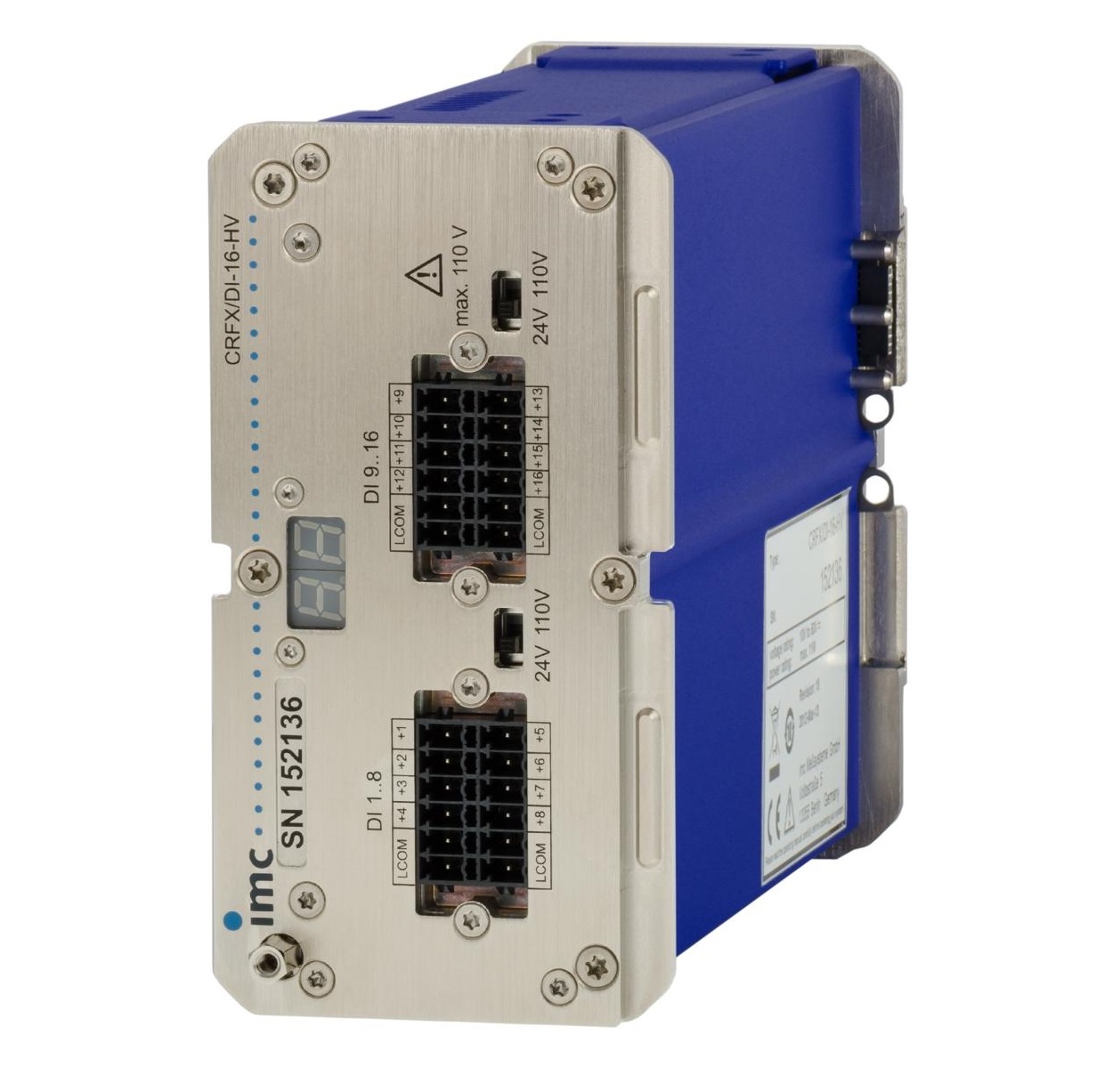

The CRFX/DI-16-HV is equipped with digital inputs that can sample signals conforming to either 24 V or 110 V logic standards. The connection is realized via 4 terminal blocks of 4 bits each.
Features:
- imc CRONOSflex Module High Voltage Digital Input Module
- 16 Digital Input Channels, 24 V or 110 V, Isolated
- Isolated 4-bit Groups
- Input Level is Configurable
Manufacturer: imc Test & Measurement
Quote
Datasheet
Specifications
Models & Accessories
Downloads
Related Products
Similar Products
CRFX/DI-16-HV - Specifications
| Family | imc CRFX |
| Unit Type | Module |
| Input Type | Digital |
| Digital Inputs | 16 |
| Max Sample Rate | 10 kHz |
| Min Temperature | -10 °C |
| -40 °C | |
| Max Temperature | 55 °C |
| 85 °C | |
| IP Rating | IP20 |
CRFX/DI-16-HV - Models & Accessories
Models
| CRFX/DI-16-HV | 16 Digital Inputs, Terminal Block Connectors, -10°C to 55°C |
| CRFX-DI-16-HV-ET | 16 Digital Inputs, Terminal Block Connectors, -40°C to 85°C |
CRFX/DI-16-HV - Downloads
imc CRONOS flex, DI-16-HV Datasheet Datasheet |
imc CRONOS, Getting Started Manual Manual |
imc_CRONOS-series_Manual Manual |
imc Company Brochure Brochure |
