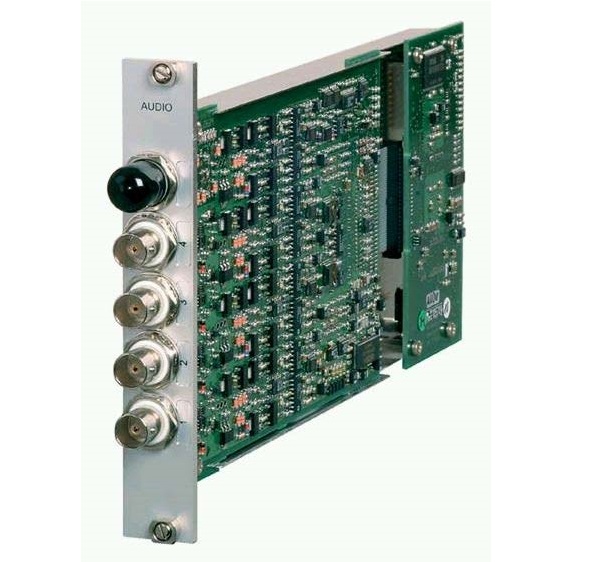

CRC/AUDIO-4, imc CRONOScompact Chassis Module
The CRC-AUDIO-4 amplifier is specially designed for acquisition of sound and vibration data. It comes as a modular plug-in for the imc CRONOScompact system. Also compatible with imc CRONOS-PL/-SL.
Features:
- imc CRONOScompact Audio Measurement Amplifier
- 4 Analog Input Channels
- 24-bit AC/DC
- Online Third Octave Processing on Amplifier Board
- Large Analog Bandwidth
- Supports TEDS
- Supports Condenser Microphones (option)
- Occupies 1 Slot (CRC/AUDIO-4)
- Occupies 2 Slots (CRC/AUDIO-4-MIC)
Manufacturer: imc Test & Measurement
Quote
Datasheet
Specifications
Models & Accessories
Downloads
Related Products
Similar Products
CRC/AUDIO-4 - Specifications
| Family | imc CRONOScompact |
| Unit Type | Module |
| Input Type | Voltage |
| ICP | |
| Analog Inputs | 4 |
| Max Bandwidth | 48 kHz |
| Max Sample Rate | 100 kHz |
| Resolution | 24-bit |
| Min Temperature | -10 °C |
| -40 °C | |
| Max Temperature | 55 °C |
| 85 °C |
CRC/AUDIO-4 - Models & Accessories
Models
| CRC/AUDIO-4 | For Portable CRONOScompact Chassis, 4 Analog Inputs, -10°C to 55°C |
| CRC/AUDIO-4-ET | For Portable CRONOScompact Chassis, 4 Analog Inputs, -40°C to 85°C |
| CRC/AUDIO-4-MIC | For Portable CRONOScompact Chassis, 4 Analog Inputs, With Microphone Supply, -10°C to 55°C |
| CRC/AUDIO-4-MIC-ET | For Portable CRONOScompact Chassis, 4 Analog Inputs, With Microphone Supply, -40°C to 85°C |
| CRC/AUDIO-4-R | For Rack CRONOScompact Chassis, 4 Analog Inputs, -10°C to 55°C |
| CRC/AUDIO-4-R-ET | For Rack CRONOScompact Chassis, 4 Analog Inputs, -40°C to 85°C |
| CRC/AUDIO-4-MIC-R | For Rack CRONOScompact Chassis, 4 Analog Inputs, With Microphone Supply, -10°C to 55°C |
| CRC/AUDIO-4-MIC-R-ET | For Rack CRONOScompact Chassis, 4 Analog Inputs, With Microphone Supply, -40°C to 85°C |
CRC/AUDIO-4 - Downloads
CRC/AUDIO-4 Datasheet Datasheet |
imc CRONOScompact Datasheet Datasheet |
imc Company Brochure Brochure |
imc CRONOS, Getting Started Manual Manual |
imc_CRONOS-series_Manual Manual |
