ARINC-8Rx, imc Fieldbus Interface - ARINC-bus
- imc ARINC-429, Fieldbus Interface Module
- Transfer Protocol: ARINC 429
- Current Hardware Necessary for Sending Messages
- Fully Supported by imc STUDIO Software
- Occupies 1 Fieldbus Slot
The ARINC-8Rx bus is a fieldbus system specially adapted to aerospace engineering, having transfer rate of up to 100 kBit/s.

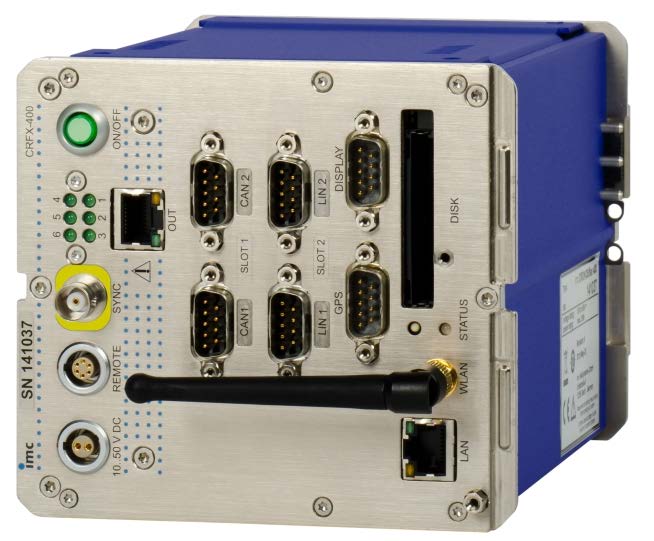

Each Module has 8 Receive (Rx) ports and 4 Transmit (Tx) ports. Multiple Feildbus modules can be provided within the CRFX and CRC chassis.
These can be combined with CANbus, Ethernet, RS232/485, Analog and digital modules.
For example these are used in the communication with ARINC 429 devices to communicate "Real-Time" messages ( data and conditions) within an aircraft.
| Family | imc CRFX |
| Unit Type | Module |
| Field Interface | ARINC |
| Min Temperature | -10 °C |
| -40 °C | |
| Max Temperature | 55 °C |
| 85 °C |
During the development and certification stages of an aircraft these modules can monitor as a receiver and broadcast as a transmitter, messages needed by the various aircraft intelligent devices. These modules can receive ARINC-429 messages, record them, modify them, rebroadcast them as ARINC-429 messages or rebroadcast them as CANbus, Ethernet, RS232/485 messages, Analog or digital parameters.
These modules are an integral part of A-Tech's Simulation Test Systems used in the Development and Certification of Landing Gear, Brake Systems, Steering Systems, Avionics, etc.
In addition these modules can be used in the Production Verification Process in either manual or automated ATP's ( Acceptance Test Procedures).
| CRFX/ARINC-8Rx | For CRFX Base Unit, ARINC-bus Interface, -10°C to 55°C |
| CRFX/ARINC-8Rx-ET | For CRFX Base Unit, ARINC-bus Interface, -40°C to 85°C |
