RoaDyn, imc Fieldbus Interface - RoaDyn

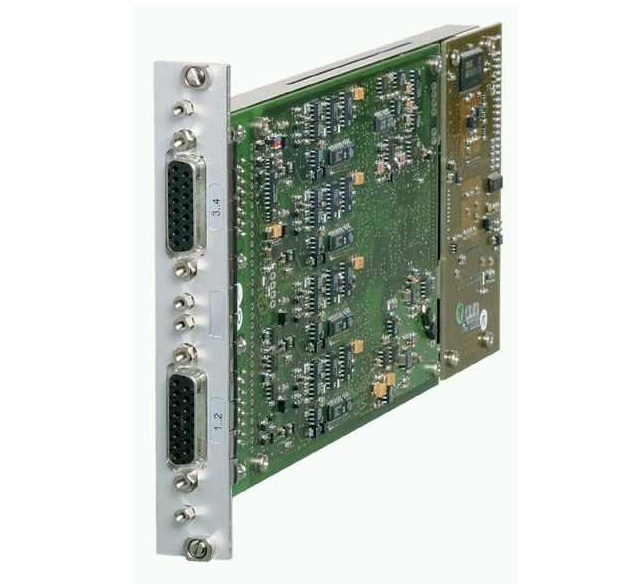

The RoaDyn interface module provides the interface between the wheel force transducer system RoaDyn System 2000 by Kistler and an imc CRONOS measurement device.
Features:
- imc RoaDyn, Fieldbus Interface
- Fully Supported by imc STUDIO Software
- Occupies 1 Fieldbus Slot
Manufacturer: imc Test & Measurement
Quote
Datasheet
Specifications
Models & Accessories
Downloads
Similar Products
RoaDyn - Specifications
| Family | imc CRONOScompact |
| Unit Type | Module |
| Field Interface | RoaDyn |
| Min Temperature | -10 °C |
| -40 °C | |
| Max Temperature | 55 °C |
| 85 °C |
RoaDyn - Models & Accessories
Models
| CRC/RoaDyn | For Portable CRONOScompact Housing, RoaDyn Interface, -10°C to 55°C |
| CRC/RoaDyn-ET | For Portable CRONOScompact Housing, RoaDyn Interface, -40°C to 85°C |
| CRC/RoaDyn-R | For Rack CRONOScompact Housing, RoaDyn Interface, -10°C to 55°C |
| CRC/RoaDyn-R-ET | For Rack CRONOScompact Housing, RoaDyn Interface, -40°C to 85°C |
RoaDyn - Downloads
Digital Fieldbus Datasheet Datasheet |
