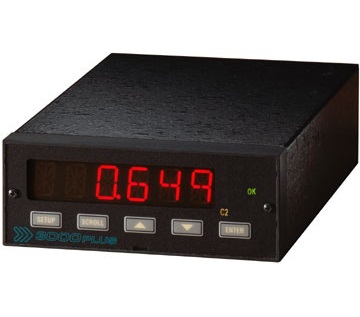

3KPLUS-40, Frequency Panel Mount Meter
The 3KPLUS-40 panel meter incorporates the 5D40 signal conditioner modules. It is a field-scalable indicator featuring operator-programmable signal processing and PC/PLC communications.
Features:
- Panel Mount Display, Control & Interface
- 5D40 Frequency Module Input
- 3 Analog Outputs
- Range of Mathematic Functions
- RS-232 Interface
- 16-bit Sampling Resolution
- Effective Signal Isolation
- Adjustable "Cycle-by-Cycle" Tracking
- Selectable Input Threshold Levels
- Analog Peak Capture (Option)
- 4 - 20 mA Current Output (Option)
- Nominal 230 V AC Operation (Option)
Manufacturer: Daytronic Corp.
Quote
Datasheet
Specifications
Downloads
Similar Products
3KPLUS-40 - Specifications
| Input Type | Frequency |
| No. of Inputs | 1 |
| Excitation | 10 V DC |
| Output Type | DC Voltage |
| DC Current | |
| Relay | |
| Interface | RS-232/485 |
| Supply Power | 24 V DC |
3KPLUS-40 - Downloads
3KPLUS-40 Frequency Panel Mount Meter Datasheet |
