BeanDevice AX-3DS, High Performance Wireless Accelerometer
- Wireless accelerometer dedicated to shock Scalable measurement range :
- ±6g/±12g/±24g or ±2g/±4g/±8g
- Embedded data logger : up to 1 million data points (with events dating)
- Fully autonomous system with an integrated Lithium-Ion battery charger
- Waterproof for IP66 casing (Nema 4)
- Excellent radio link relying on the radio antenna diversity developed by Beanair®
- A hysteresis on the shock event, fully configurable through the BeanScape®, allows to avoid false alarm.
The BeanDevice® AX-3DS integrates a smart shock detection technology which permits to detect & recognize a shock event during the sleeping or deep sleeping mode of the BeanDevice® AX-3DS. When the BeanDevice® AX-3DS is in sleeping mode, the accelerometer continues to track a shock event with a power consumption of 68 uA in sleeping mode and 28uA in deep sleeping mode.
A hysteresis on the shock event, fully configurable through the BeanScape®, allows to avoid false alarm.
While the vast majority of wireless sensors show their limits in harsh industrial environment, the BeanDevice® AX-3DS integrates an innovative antenna diversity design, boosting the radio link quality in environments subject to random and diverse disturbances. Antenna Diversity improves both the quality and reliability of a wireless link by 30%.

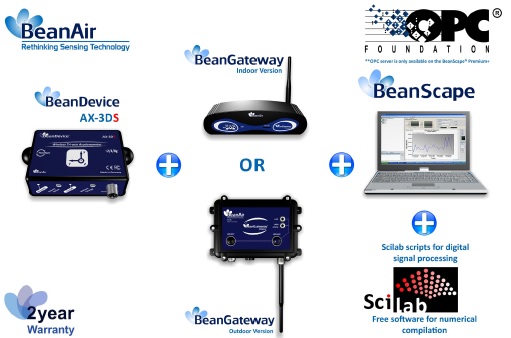

The BeanScape® application allows the user to view all the data transmitted by the BeanDevice® AX-3DS With the OTAC (Over-the-Air configuration) feature, the user can remotely configure the BeanDevice® AX-3DS.
The BeanDevice® AX-3DS integrates an embedded data logger, which can be used to log data when a Wireless Sensor network can not be easily deployed on your site. All the data acquisition are stored on the embedded flash and then transmitted to the BeanGateway® when a Wireless Sensor Network is established.
SEVERAL DATA ACQUISITION MODES ARE AVAILABLE ON THE BEANDEVICE® AX-3D: Low Duty Cycle Data Acquisition mode (LDCDA), Alarm Mode, Survey mode. Streaming Packet Mode, and Streaming Mode
The BeanScape® Premium+ integrates an OPC DA server (Data Access). OPC DA is particularly well suited for real time measurement and data sharing.
Each data/measurement can be associated to a tag or its attributes and shared with one or many OPC clients.
BeanScape 2.4GHz - How to use the Alarm - Data Acquisition Mode: https://youtu.be/XxWJT7A9ntY
BeanScape 2.4GHz - How to use Low Duty Cycle Data Acquisition Mode: https://youtu.be/TGDBPrFeO_8
Beanscape 2.4GHz - How to perform streaming in Data Acquisition Mode: https://youtu.be/OVVpj0V8svU
How to switch between Standard and Expert HMI View : https://youtu.be/HFtu7HapIeI
The BeanDevice® AX-3DS is suitable for the following applications:
- Structural Health Monitoring (SHM)
- Shock measurement on vehicles & trains
- Transportation Monitoring
- Drop testing
- Crash and Impact Testing
- Ride quality measurement
