BAC, Shibaura_Toshiba CARTESIAN Robot
The high speed BAC actuators utilize a compact servo motor system and compact controller. The BAC Series is easy to use and offers various configurations for a diverse range of applications.
Features:
- Cost Effective
- Easy Programming
- Digital single or multi-axis configuration
- Variety of power options
- Arm Lengths from 50 to 700mm
- Speeds up to 1000mm/sec
Manufacturer: Shibaura Machine Co. Ltd. - TM Robotics
Quote
Datasheet
Description
Applications
Models & Accessories
Downloads
BAC - Description
A controller and driver designed exclusively for a single axis. No programming required ,only parameter and table settings are required for execution of a desired operation. It has torque control function as a standard feature; perfect for workpiece pushing operation. The output signal can be turned on or off while the axis is in motion as it has special feature of area entry signal output function.

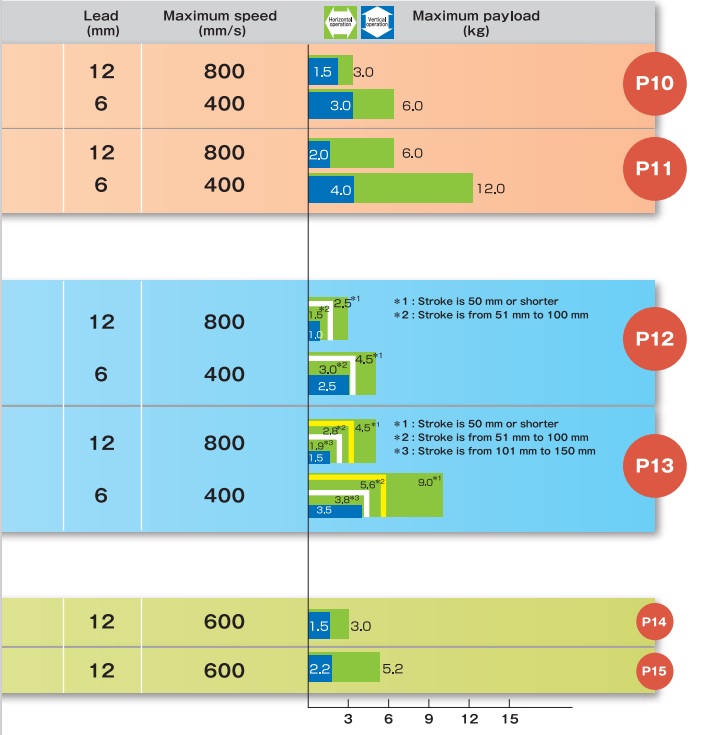

- Payload Table
-
BAC - Applications
Ideal for replacing pneumatic actuators.
BAC - Models & Accessories
Models

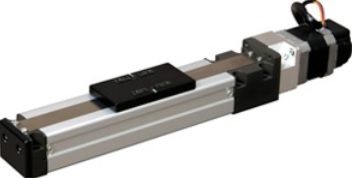

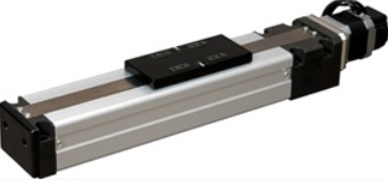

| BAC5D/7D Slider | Slider Type, Single Actuator Payload, with 50w AC Servo Motor (Resolver) |

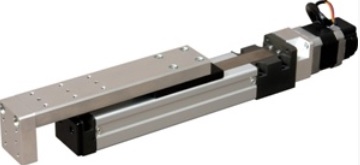

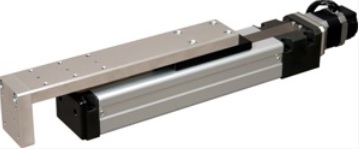

| BAC5D/7D Table | Table Type, Single Actuator Payload, with 50w AC Servo Motor (Resolver) |

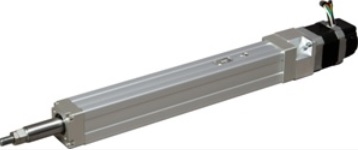

| BAC3D/4D Rod | Rod Type, Single Actuator Payload, with 50w AC Servo Motor (Resolver) |
BAC - Downloads
BAC Catalog Datasheet |
