PHE863, Sub Miniature Pressure Sensor for Harsh Environment
- Available with 0.5-4.5Vdc output
- Operating from -40 to +140°C
- Ultra light sensor: 3 grams
- Large Bandwidth
The PHE860 series pressure sensors are designed to operate in environments with thermal stress, mechanical shock and vibration. Their small size and light weight (3 grams) make them particularly suitable for use in vehicles, aircraft, satellites, robots, missiles, test stands and other equipment where space is limited.
Capable of measuring liquid or gas pressures from -1 to 250bar, their stainless steel construction, fully welded (no internal seals), makes them compatible with most fluids including the most aggressive. They are manufactured from the most proven and high-performance sensing elements and components.
Their rigorous manufacturing process, including specific burn-in, guarantees quality, precision and stability in the most demanding applications.
| Type | Ultra Miniature |
| Operational Mode | Absolute |
| Sealed Gauge | |
| Full Scale | 50 psi |
| 73 psi | |
| 145 psi | |
| 290 psi | |
| 1015 psi | |
| 580 psi | |
| 3626 psi | |
| Output | 1.5 mV/V |
| 4.5 V DC | |
| Precision | ±0.25 % FS |
| Excitation | 5 V DC |
| Material | Stainless Steel |

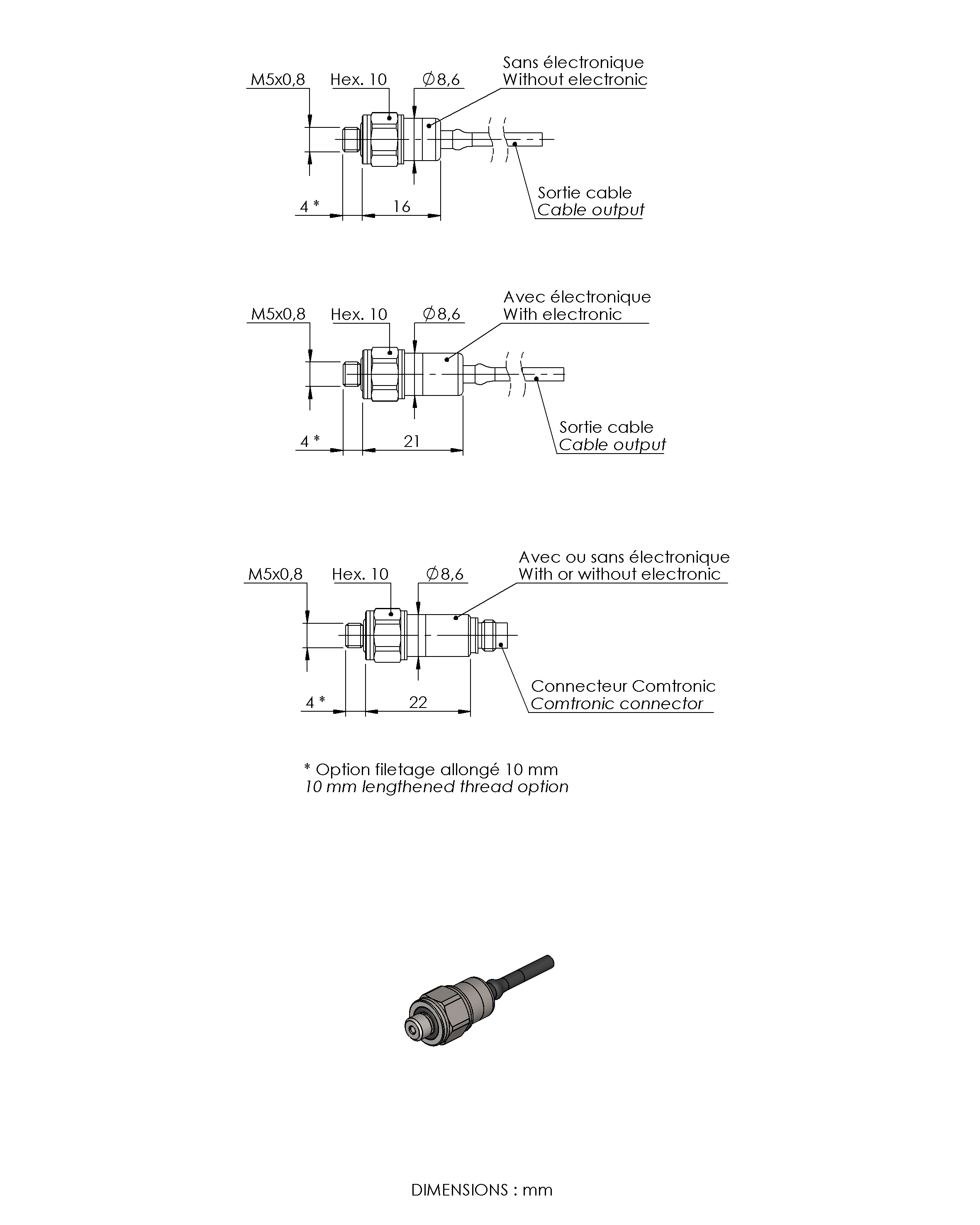

| Thread | M5 x 0.8 |
| Min Temperature | -40 °C |
| Max Temperature | 140 °C |
Areas of application include:
- Automotive - on vehicle
- Aerospace
- Motorsport
- Military
| PHE861 | |
| PHE863 | |
| PHE867 |
PHE863 Sub-Miniature Wide Temp Pressure Transducer Datasheet |
- Outputs available: mV/V, 0.5-4.5Vdc or 0-5Vdc
- Operating Temperature: from -40 to +140°C
- Ultra light weight: < 10 grams
- Wide Bandwidth
- M5x0.8-6g male Thread
| Type | Miniature, Ultra Miniature |
| Operational Mode | Absolute, Sealed Gauge, Vented Gauge |
| Full Scale | 11 - 16 psi, 15 psi, 30 psi, 75 psi, 150 psi, 300 psi, 500 psi, 750 psi, 1000 psi, 3000 psi |
| Output | 1.5 mV/V, 4.5 V DC, 5 V DC |
| Precision | ±0.25 % FS |
| Excitation | 5 V DC, 8 - 16 V DC, 10 - 30 V DC, 15 V DC |
- Pressure ranges from 15 psi up to 3000 psi, (-1 to 250bar)
- Available with 0.5-4.5Vdc output
- Operating from -40 to +125°C
- Ultra light sensor : 3 grams
| Type | Ultra Miniature |
| Operational Mode | Absolute, Sealed Gauge, Vented Gauge |
| Full Scale | 15 psi, 50 psi, 75 psi, 100 psi, 150 psi, 300 psi, 500 psi, 1000 psi, 3000 psi |
| Output | 1.5 mV/V, 4.5 V DC, 5 V DC |
| Precision | ±0.25 % FS |
| Excitation | 5 V DC, 8 - 16 V DC, 15 V DC |
- Available with 0.5-4.5Vdc output
- Operating from -40 to +140°C
- Designed for harsh environment
- Large Bandwidth
- M5x0.8, M8x1,M10x1 male Threads available
| Type | Miniature |
| Operational Mode | Absolute, Sealed Gauge, Vented Gauge |
| Full Scale | 11 - 16 psi, 15 psi, 30 psi, 75 psi, 150 psi, 300 psi, 500 psi, 1000 psi, 2000 psi, 3000 psi, 5000 psi |
| Output | 1.5 mV/V, 4.5 V DC |
| Precision | ±0.10 % FS, ±0.25 % FS |
| Excitation | 5 V DC, 8 - 16 V DC |
- Operating from -40 to +175°C
- Large Bandwidth
- Ultra light sensor : 3 grams
- Available with 0.5-4.5Vdc output
| Type | Ultra Miniature |
| Operational Mode | Absolute, Sealed Gauge, Vented Gauge |
| Full Scale | 15 psi, 30 psi, 75 psi, 150 psi, 300 psi, 500 psi, 1000 psi, 2000 psi, 3000 psi |
| Output | 1.5 mV/V, 4.5 V DC, 5 V DC |
| Precision | ±0.25 % FS |
| Excitation | 5 V DC, 8 - 16 V DC, 15 V DC |
- Available with 0.5 - 4.5 Vdc output
- Operating from -40 to +140°C
- Ultra light sensor : 3 grams
- Large Bandwidth
| Type | Ultra Miniature |
| Operational Mode | Absolute, Sealed Gauge |
| Full Scale | 50 psi, 73 psi, 145 psi, 290 psi, 1015 psi, 580 psi, 3626 psi |
| Output | 1.5 mV/V, 4.5 V DC |
| Precision | ±0.25 % FS |
| Material | Stainless Steel |
