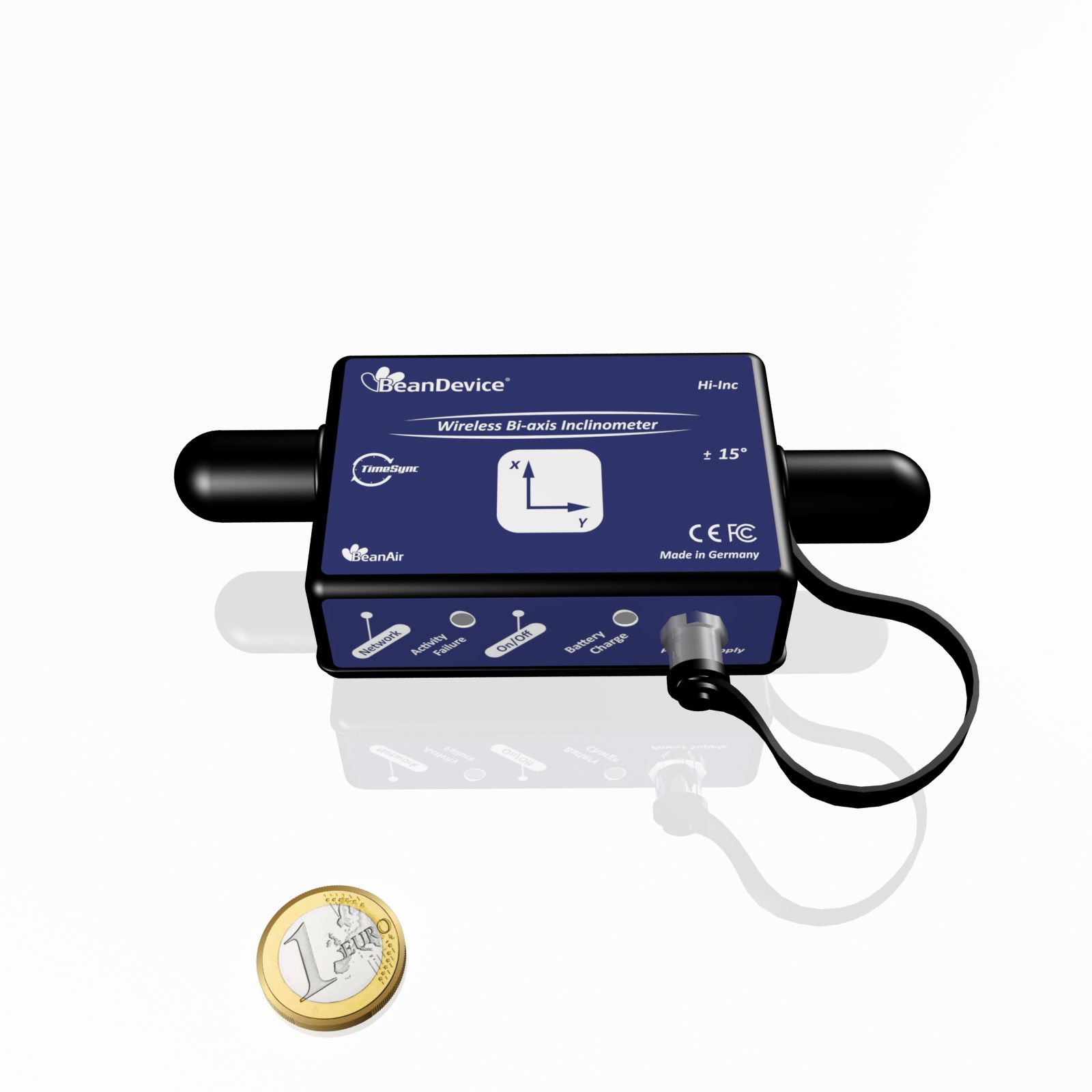

BeanDevice HI-INC, Wireless Inclinometer
- Excellent resolution: 0,001°
- Temperature compensated sensor
- Excellent radio link thanks to the antenna diversity developed by Beanair®
- Non contact actuation for faster installation
- Streaming mode: 60 SPS on each channel
- Maximum radio range : 500 m (L.O.S)
- Ultra-Power radio Technology IEEE 802.15.4
- Current consumption in idle mode : < 30 uA
- Embedded Data Logger : up to 1 000 000 data acquisition records (with events dating)
- OPC server allowing real time access from your IT system to the BeanScape® (available on BeanScape® Premium+)
- Entirely autonomous system with an integrated Lithium-Ion battery charger
- Anti-aliasing Butterworth filter (5th order) with a cut-off frequency of 1 Hz to 2 KHz (remotely programmable from the BeanScape®)
- Watertight aluminium enclosure IP66 (dimensions Lxlxh : 80x55x21 mm—weight 145g rechargeable battery included) - suitable for Harsh Industrial Environment
- Free Scilab scripts for FFT and PPV filtering
- Time Synch function : The Device is synchronized with your PC/PLC clock with an accuracy less than 5 ms
Available in several versions (±15° or ±30° in mono-axis/bi-axis), the BeanDevice® HI-INC is a wireless accelerometer with integrated data logger.
Characterized by a waterproof (IP67/Nema 6) and a lightweight aluminum casing (80x55x21mm, 155g), an ultra-low power (30 µA in sleeping mode), an integrated data logger that can store up to 1 million data logs, as well as a tiny radome omni antenna enabling a maximum wireless range of 650 meters (L.O.S.), this wireless accelerometer is well suited for all types of industrial applications.
While the vast majority of wireless sensors are not suitable for harsh industrial environment, the BeanDevice® HI-INC integrates an innovative antenna diversity design, boosting the radio link quality in environments subject to random and diverse disturbances. Antenna Diversity improves both the quality and reliability of a wireless link by 30%.
The combination of a high performance MEMS inclinometer and a 5th order anti-aliasing filter (remotely programmable by the user) enables a great accuracy (±0.057° for the version ±15°).
Our outstanding TimeSync® function allows to reach a time-synchronization of ±2.5ms over the wireless sensor networks. It contributes to enhance user experience about data fusion and modal analysis.
Users looking for a quick and easy integration with a third party software, have choice between ModBus TCP/RTU/ASCII protocol available on our BeanGateway® or OPC DA available on our BeanScape® (Premium+ & Cloud versions only).
BeanScape 2.4GHz - How to use the Alarm - Data Acquisition Mode: https://youtu.be/XxWJT7A9ntY
BeanScape 2.4GHz - How to use Low Duty Cycle Data Acquisition Mode: https://youtu.be/TGDBPrFeO_8
Beanscape 2.4GHz - How to perform streaming in Data Acquisition Mode: https://youtu.be/OVVpj0V8svU
How to switch between Standard and Expert HMI View : https://youtu.be/HFtu7HapIeI
The BeanDevice® HI-INC is suitable for the following applications:
- Platform Leveling and Stabilization
- Built-in test Equipment
- Structural Health Monitoring (SHM)
- Oil Drilling
- Axial rotor Measurement
