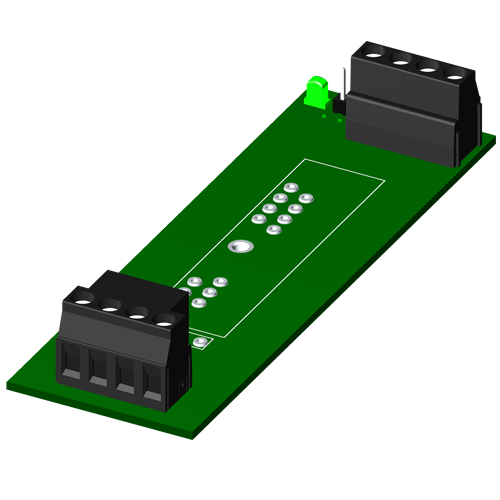

SCMPB03/SCMPB04, One/Two Position Analog I/O Backpanels
The SCMPB03 and SCMPB04 are single and dual channel mounting panels
for the SCM5B modules. Both are intended for DIN rail mounting.
Features:
- Panel or DIN Rail Mounting Options
- CE Compliant
- 1500 Vrms Isolation
- 1-, 2-, 8-, 16-Position Backpanels
- 19-Inch Mounting Rack For Backpanels
- Multiplexed and Non-Multiplexed Backpanels
- Interface cables
- Module Evaluation Board
- Cable to Screw Terminal Interface Board
Manufacturer: Dataforth
Quote
Datasheet
Description
Models & Accessories
Downloads
SCMPB03/SCMPB04 - Description
The SCMPB03 and SCMPB04 are single and dual channel mounting panels for the SCM5B modules. Both are intended for DIN rail mounting.

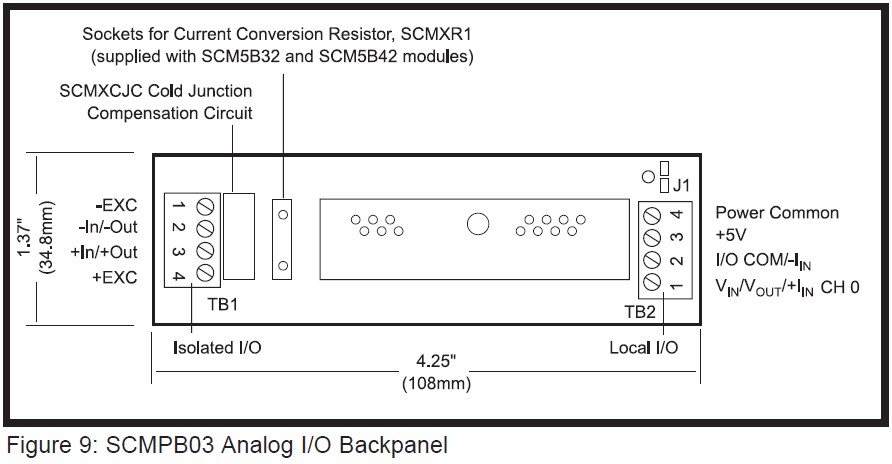

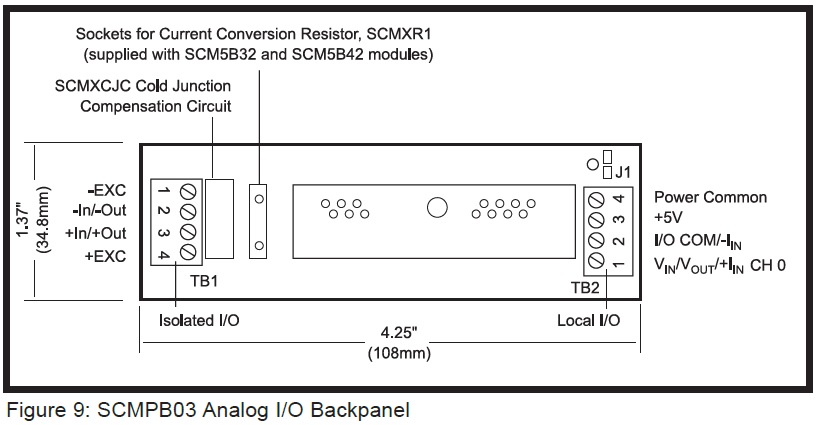

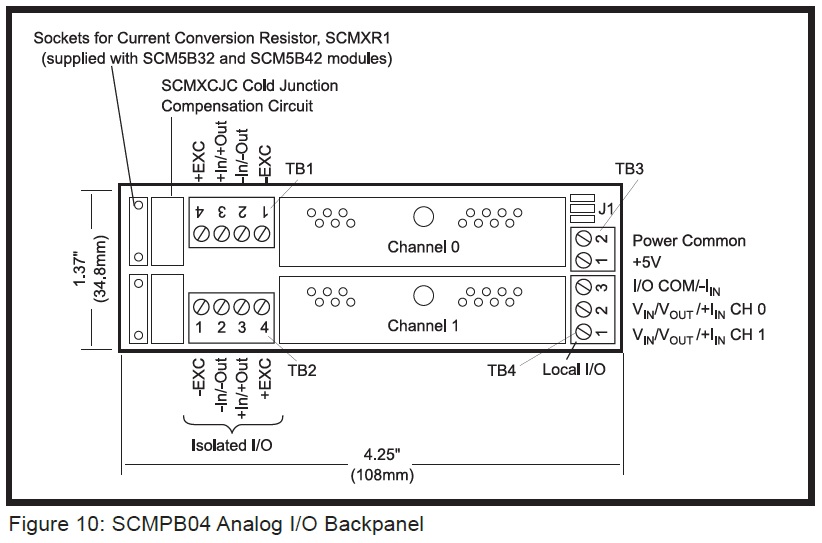

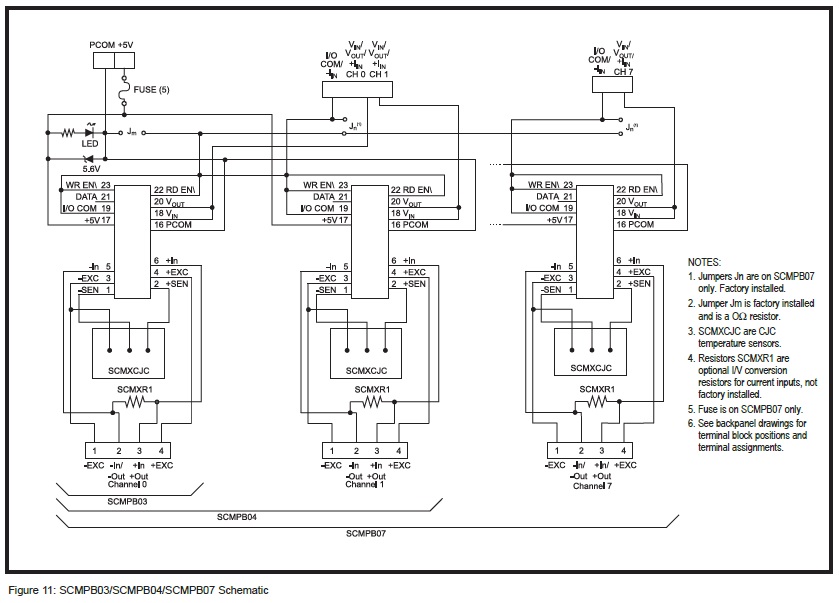

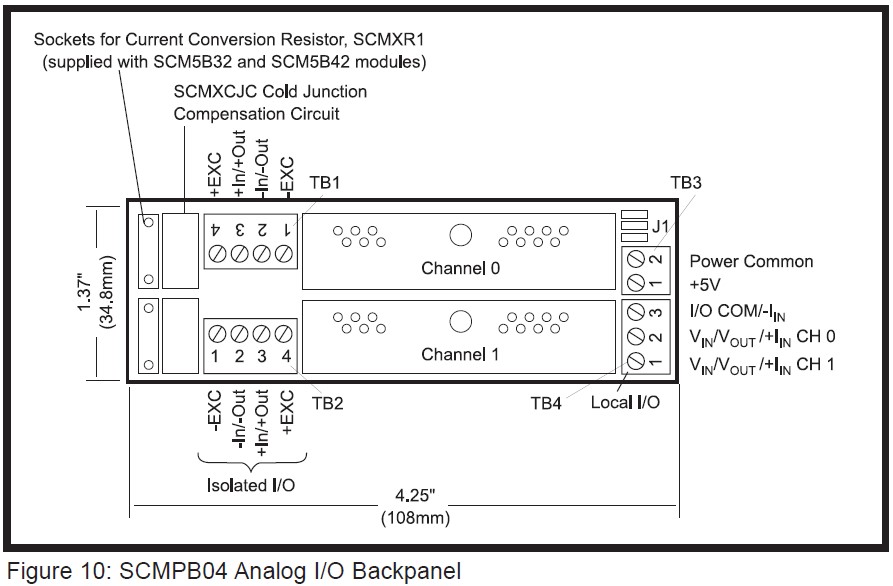

See Figures 9 and 10 for wiring diagrams, Figure 11 for schematic.
SCMPB03/SCMPB04 - Models & Accessories
Models
| SCMPB03/SCMPB04 | One/Two Position Analog I/O Backpanels |
| SCMPB03-2 | Single channel backpanel with DIN rail mounting hardware. Shipped fully assembled. |

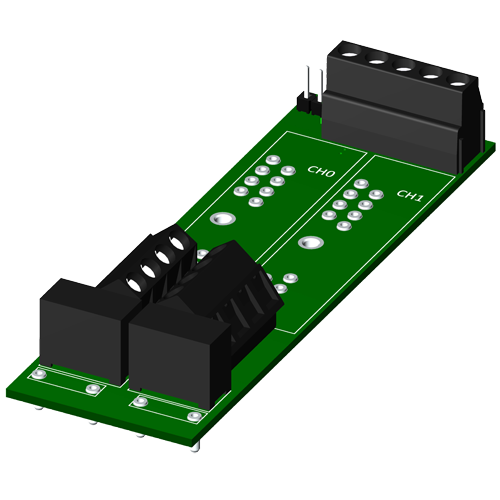

| SCMPB04 | Dual channel backpanel. No mounting hardware included. |
| SCMPB04-1 | Dual channel backpanel without cold junction compensation circuits. |
| SCMPB04-2 | Dual channel backpanel with DIN rail mounting hardware. |
| SCMPB04-3 | Dual channel backpanel without cold junction compensation circuits and with DIN rail mounting hardware. |
