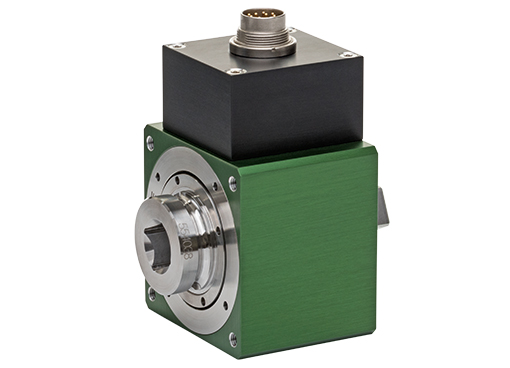

8655, Square, Rotating, Contactless
High quality rotating torque sensor with square drive.
Features:
- Internal square and external square
- very short, same casing like 8656 (length of the 86403, but with amplifier and, if required, with coding disk, dimensions do not change as a result)
- Measuring ranges from 1Nm - 160 Nm (at the moment, larger is of course possible, but is associated with a new housing dimension) very good price-performance ratio
Manufacturer: Burster Praezisionsmesstechnik Gmbh
Quote
Brochure
Description
Applications
Models & Accessories
Downloads
8655 - Description
The compact torque sensor model 8655 with standard square is contactless constructed. The torque is recorded by the torsion of the shaft using the strain gage principle. Thanks to the inductive and optical transmission of the signals, the sensor is maintenance-free, the signals are digitized directly on the shaft and made available by the evaluation electronics as a voltage signal or via USB.
8655 - Applications
- Monitoring and regulation of screwing processes
- Quality monitoring of tools and machines
- Machinery and plant engineering
8655 - Models & Accessories
Models
| 8655 | Square, rotating, contactless torque sensor |
| 8655-5001 | +/- 1 N.m |
| 8655-5002 | +/- 2 N.m |
| 8655-5005 | +/- 5 N.m |
| 8655-5012 | +/- 12 N.m |
| 8655-5025 | +/- 25 N.m |
| 8655-5050 | +/- 50 N.m |
| 8655-5063 | +/- 63 N.m |
| 8655-5100 | +/- 100 N.m |
| 8655-5160 | +/- 160 N.m |
8655 - Downloads
8655 Torque Sensor Datasheet |
Torque Sensors Brochure |
