Knick P42000, Compact High Voltage DC Transducers (up to 3600 V measurement/ isolation)

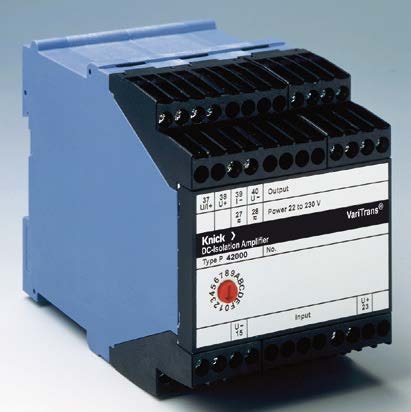

Compact DC voltage transducer with measurement and safe galvanic isolation to 3.6 kVAC/DC, broad-range power supply (20 V - 253 VAC/DC) & calibrated, configurable input/output range selection. The most compact transducer in its class, 2kV and up.

Features:

unipolar or bipolar voltage signals
Selectable Calibrated ranges from 100 V up to 3600 V
Fixed Input Ranges are available
Galvanically isolated up to 3.6 kVAC/DC
Test Voltage of 15 kVAC
Suitable for DC railway systems and operation on ships and land crafts
Selectable Signal Outputs ±20 mA, ±10 V or 4 ... 20 mA.
Cutoff frequency of 5 kHz (–3 dB)
Integrated 20 to 253 V AC/DC VariPower power supply
Operating Temperatures -10 up to 70 °C.

Manufacturer: Knick Interface

Quote

Brochure

Description

Applications

Models & Accessories

Downloads

Knick P42000 - Description

The Knick ProLine P 42000 are available for input voltages from ±100 V to ±3600 V. Universal power supply of 20V to 253 VAC/DC. Unipolar and bipolar (standard) signals are available at the output: ±20 mA, ±10 V and 4 … 20 mA. 16 input/output signal combinations can be selected with a rotary switch on the front of the device.

Vacuum encapsulation provides maximum protection against aggressive environmental influences, shock and vibrations and ensures that the high disruptive strength required for working voltages up to 3600 V AC/DC is maintained over the long term.

Knick P42000 - Applications

• Railway: Rolling Stock and Substation Traction Power

• Vehicle Electrification: Onboard, Charging Stations and Auxiliary Power Systems

• Energy Storage: Production, Monitoring and Testing of Batteries and Supercapacitors

• Power Generation: Traditional and Renewables

• Energy Conversion: Motors, Generators, Drives and Inverters

• Heavy Industrial: Metals Processing, Chemical Production, and Related Predictive Maintenance

Knick P42000 - Models & Accessories

Models

VariTrans P 42000	Universal high voltage transducer.
VariTrans P 42000 D2	Universal high voltage transducer.
VariTrans P 42000 D3	Universal high voltage transducer.
VariTrans P 42001 D3	Universal high voltage transducer.
VariTrans P 42000 D2-nnnn	VariTrans P 42000 1-16 Ranges adjusted to customer requirements
VariTrans P 42000 D3-nnnn	VariTrans P 42000 1-16 Ranges adjusted to customer requirements
VariTrans P 42100 D3-nnnn	VariTrans P 42000 Fixed Setting, to customer requirements

Knick P42000 - Downloads

VariTrans P 42000D2

Brochure

Varitrans P 41000-43000

Brochure
