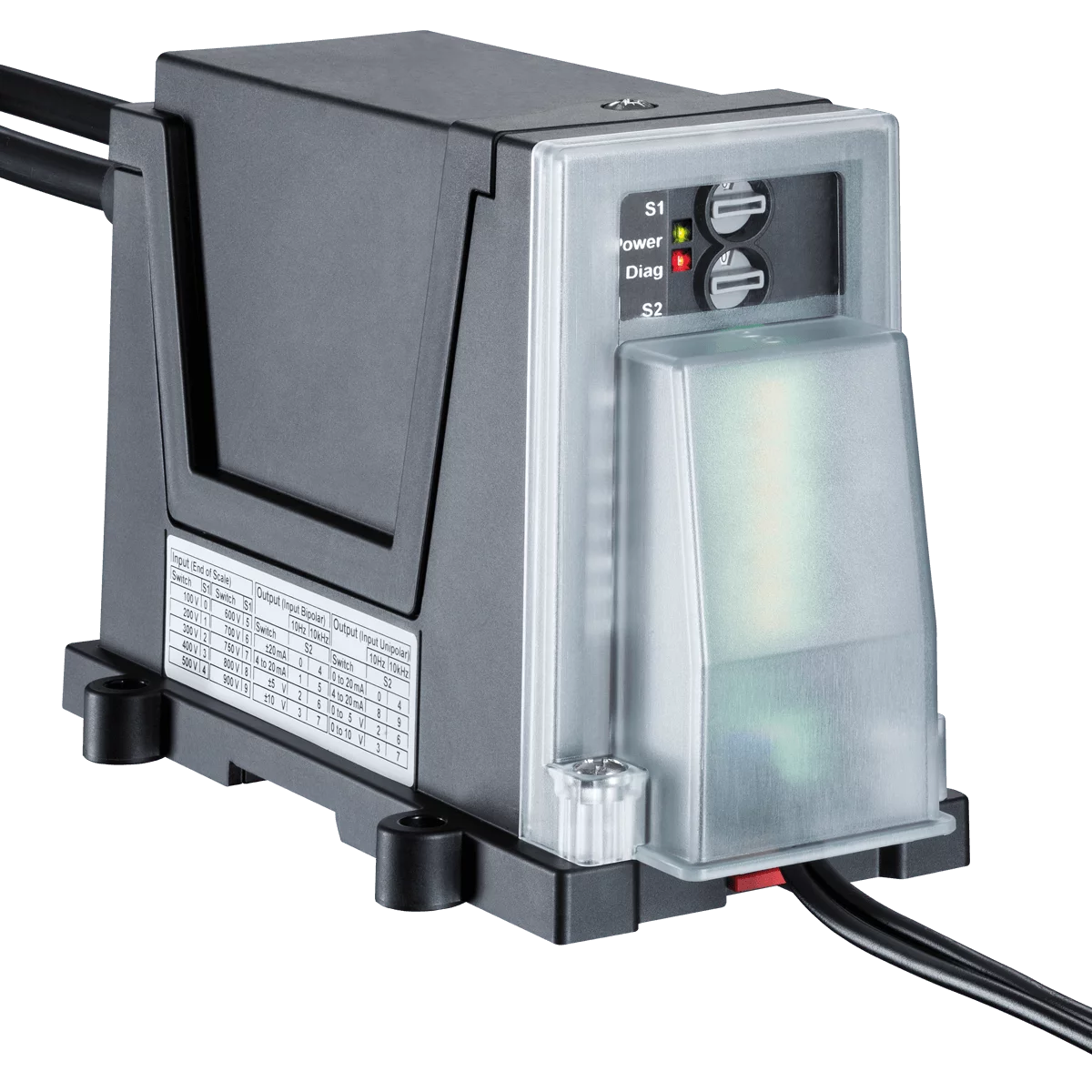

Knick P51000, Robust High Current DC Transducer (4800 V isolation)
Robust DC voltage transducer with measurement & safe galvanic isolation to 4.8kVAC/DC, broad-range power supply (20V to 253VAC/DC) & calibrated, configurable input/output range selection. Test voltages to 18kVAC. High shock & vibration resistance.
Features:
- Inputs from +/- 30 mV to 125 V (unipolar/bipolar)
- Measure up to 20 kA by way of shunt resistor
- Outputs available: +/- 20 mA, +/-5 V, +/- 10 V or 4-20 mA
- Galvanically isolated to 4.8 kVAC/DC, with test voltage of 18 kVAC
- Diagnostic outputs for wiring & device health
- Integrated broad-range power supply, 20…253 VAC/DC
- Finger-safe housing - resistance to shock, vibration & harsh EMC environments
- Operating temperature -40 C to 85 C
Manufacturer: Knick Interface
Quote
Description
Applications
Knick P51000 - Description
The Knick P51000 transducer series was designed and is very capable for applications on locomotives and multiple units for short circuit recognition, monitoring and control of traction motors and converters, auxiliary converters, accumulator batteries and others.
Sinking or Sourcing Digital Output Logic is possible in the Output connection configuration.
Knick P51000 - Applications
For high voltage and current measurement in railway applications.
