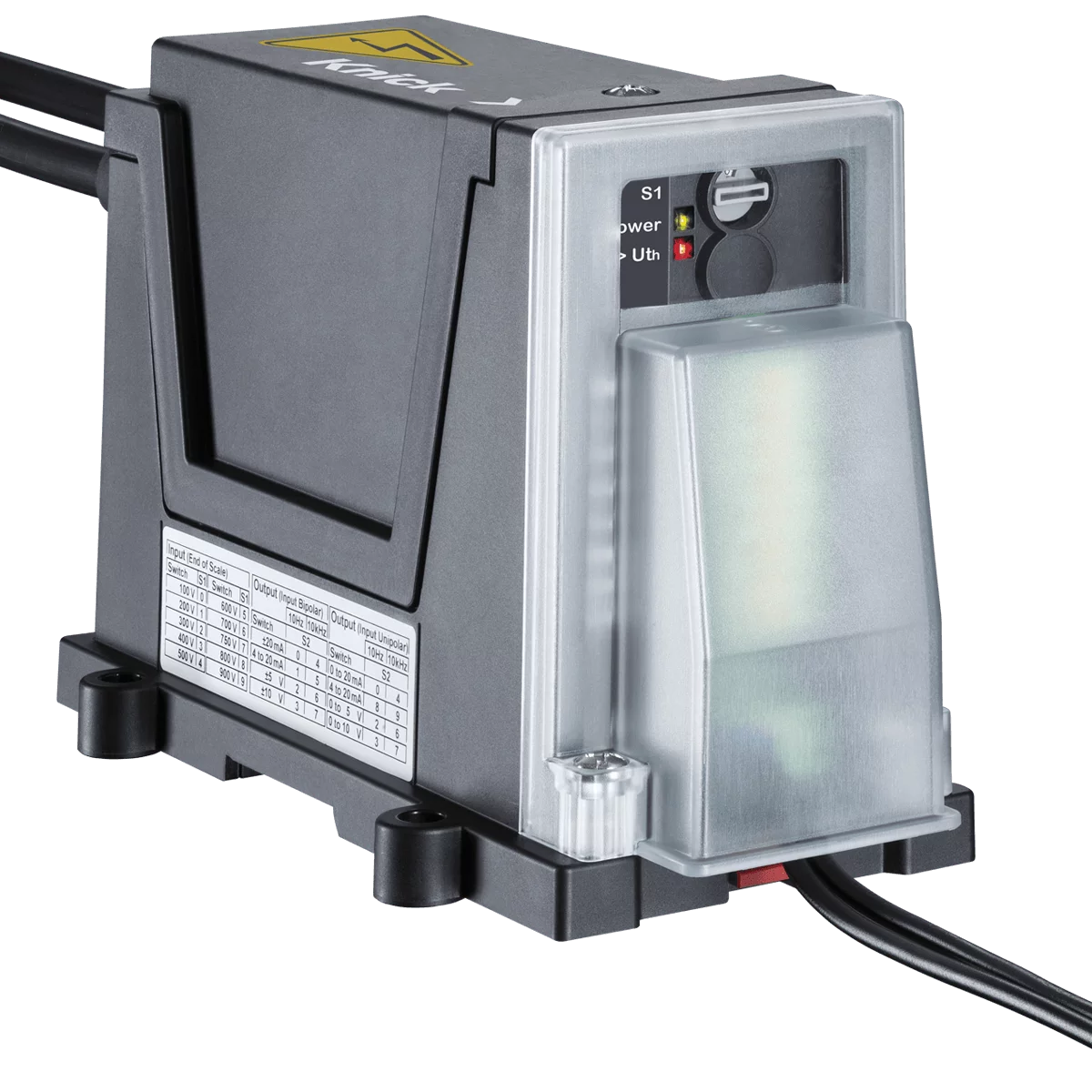

Knick P52000 VPD, Robust Voltage Presence Device (Detection of Voltages to ±4200 VAC/DC)
Robust AC/DC voltage detection SS Relay output energized when reaching voltage level. Electrical Machinery de-energization verification, Operation - Motorized Disconnect Switches, Live Voltage Detection within Rail Transit lines, System Overvoltage.
Features:
- High voltage input detection to +/- 4200 VAC/DC
- Galvanically isolated to 4.8 kVAC/DC
- Solid-state output with switching delay <2ms
- Test Voltage of 18 kVAC
- Diagnostic output indication of “Power Good” status
- Configuration possible for up to 10 User defined input thresholds
- Finger-safe housing with resistance to shock, vibration & harsh EMC environments
Manufacturer: Knick Interface
