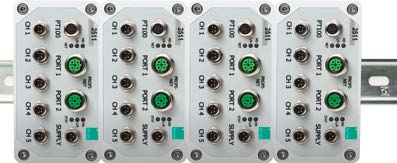

2511, Battery Resistance Measurement Module

The 2511 battery tester is well suitable for fast, multi-channel measurement of battery cells and modules in automation systems. It combines the functionality of a battery tester and analyzer to carry out rapid testing.

Features:

Internal resistance ranges: 10 … 100 mΩ
Frequency response ranges: 1kHz, 100 Hz, 10 Hz, 1 Hz
Resolution: up to 0.01 µΩ
5 Measurement chains, temperature via PT100
Fast, individually adjustable analysis programs
Accuracy: from ±0.4 % d.A. ± 0.2 % of reading
Compact design, state of the art interfaces

Manufacturer: Burster Praezisionsmesstechnik Gmbh

Quote

Datasheet

Description

Specifications

Models & Accessories

Downloads

2511 - Description

Battery Testing-Solutions for battery automation

2511 - Specifications

Range	10 mΩ
	30 mΩ
	100 mΩ
	300 mΩ
Resolution	1 μΩ
Frequency	1 kHz
	100 Hz
	10 Hz
	1 Hz
Voltage	0 - ±5 VDC
Interface	PROFINET
	Ethercat
Channels	1
	2
	3
	4
	5

2511 - Models & Accessories

Models

2511-Z001	Wall Mount Kit
2511	Battery Measurement Device

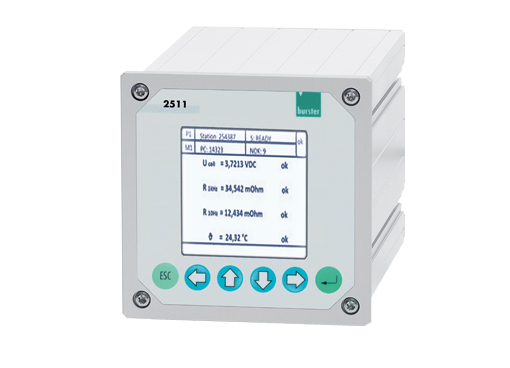

2511	Display
2511–V2503	Housing: Panel-mount unit without display 24 V/DC, 5-channel, PROFINET Fieldbuses

Accessories

9900-K251	Supply cable 2 m in length, 3-pin M8 socket, one end with free ferrules
9900-K252	Measuring cable 2 m in length, 4-pin M8 socket, one end with free ferrules
9900-K259	Pt100 temperature, 2 m in length, 4-pin M8 connector
2500-Z001	Single cell holder in four-wire design incl. Pt100 sensor for testing round cells 21700, 18650, ready for connection
2511-Z001	Mounting kit for wall mounting
2511-Z002	Mounting kit for mounting rail installation
2500-Z100	Battery Cell Simulator

2511 - Downloads

2511 Battery Measurement Device

Datasheet

Battery Testing Overview

Brochure
