ACC/DSUBM, 2 Chn Sensor and Signal Connectors , In Stock
The 15 Pin DSUB connector with terminal connections that reflect the connectivity of specific Input amplifiers for 2 input channel on various amplifiers.
Features:
- Rugged Metal Housing
- 2 Channel input Screw terminals with sensor excitation.
- Inputs may include Vdc, Vac, ma, RTDs, Thermocouples (TC) and IEPE (ICP) sensors
- Screw Terminals with labels specific to each connector
- Cable compression fitting
- Quick Delivery in North America from Inventory
Manufacturer: imc Test & Measurement
Quote
Manual
Models & Accessories
Downloads
Related Products
ACC/DSUBM - Models & Accessories
Models
| ACC/DSUBM-B2 | 2 Chn Input connector for V, ma, 1/4, 1/2 and Full Strain Gauge Sensors |
| ACC/DSUBM-TEDS-B2 | 2 Chn Input connector for V, ma, 1/4, 1/2 and Full Strain Gauge Sensors with TEDS EEPROM read / write capability |

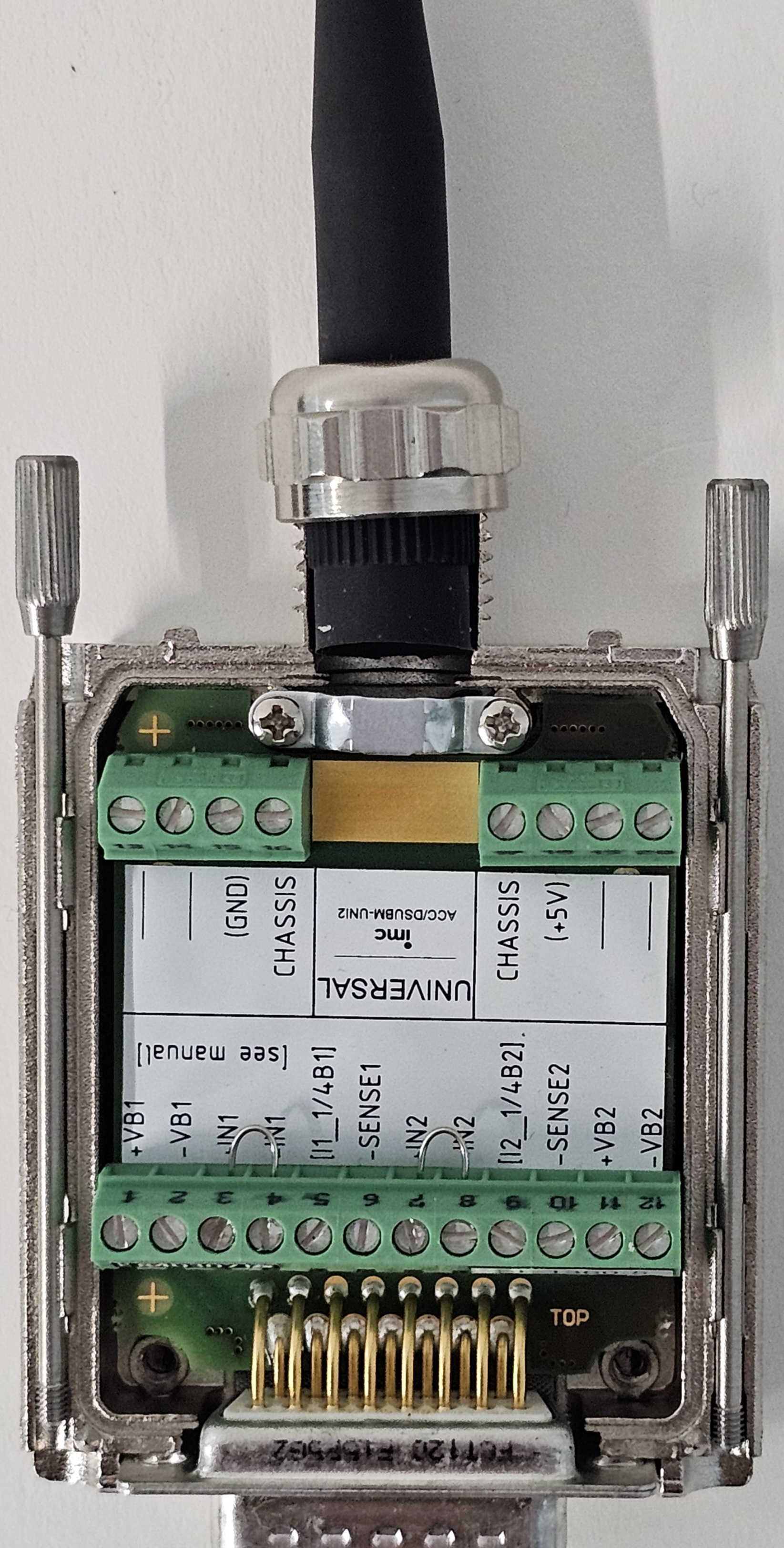

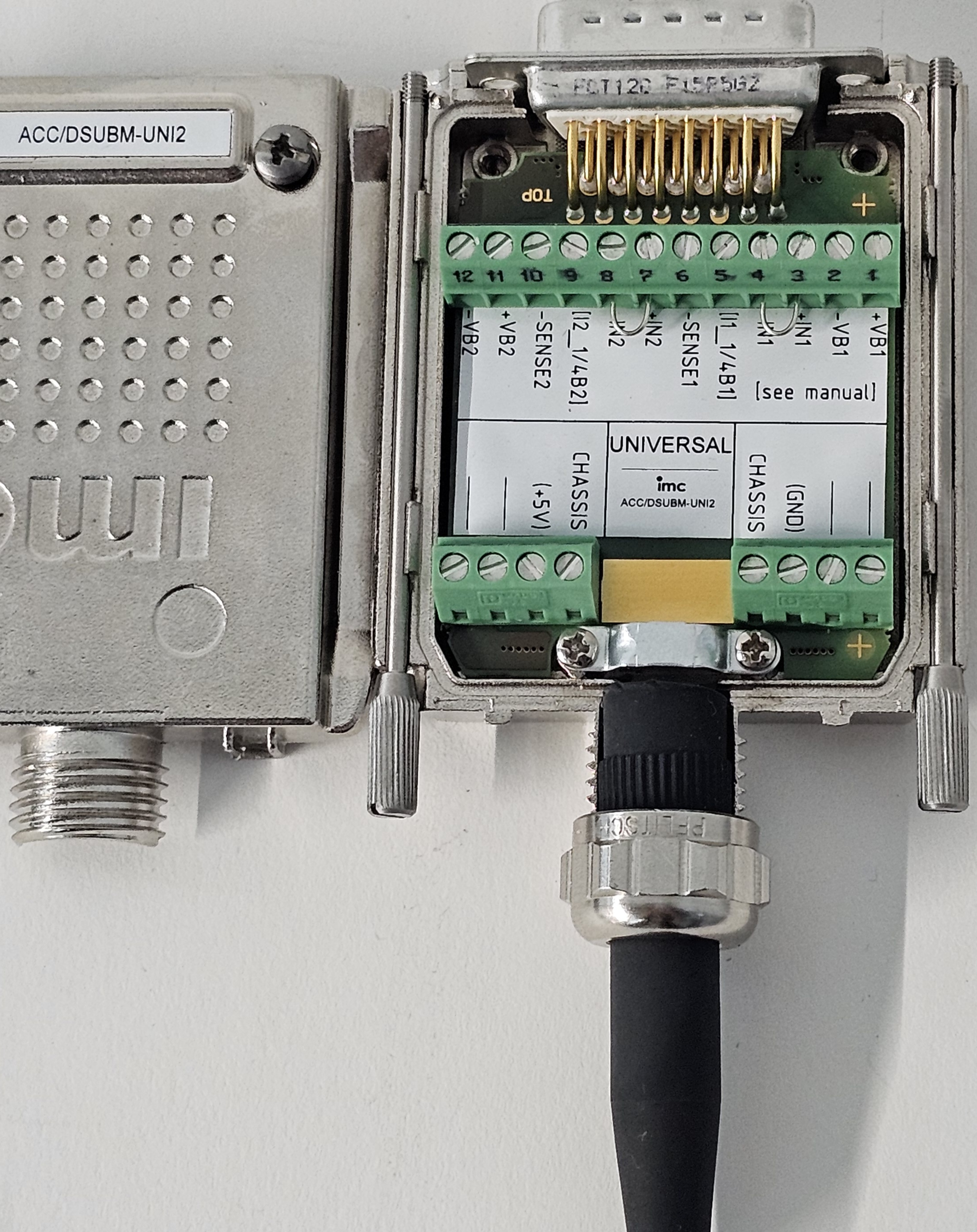

| ACC/DSUBM-UNI2 | 2 Chn Input connector for V, ma, Strain Gauge, RTD and Thermocouple |
| ACC/DSUBM-TEDS-UNI2 | 2 Chn Input connector for V, ma, Strain Gauge, RTD and Thermocouple with TEDS EEPROM read / write capability |
| ACC/DSUBM-ICP2 | 2 Chn Input connector for V and IEPE (ICP) sensors |
| ACC/DSUBM-TEDS-ICP2 | 2 Chn Input connector for V and IEPE (ICP) sensors with TEDS EEPROM read / write capability |

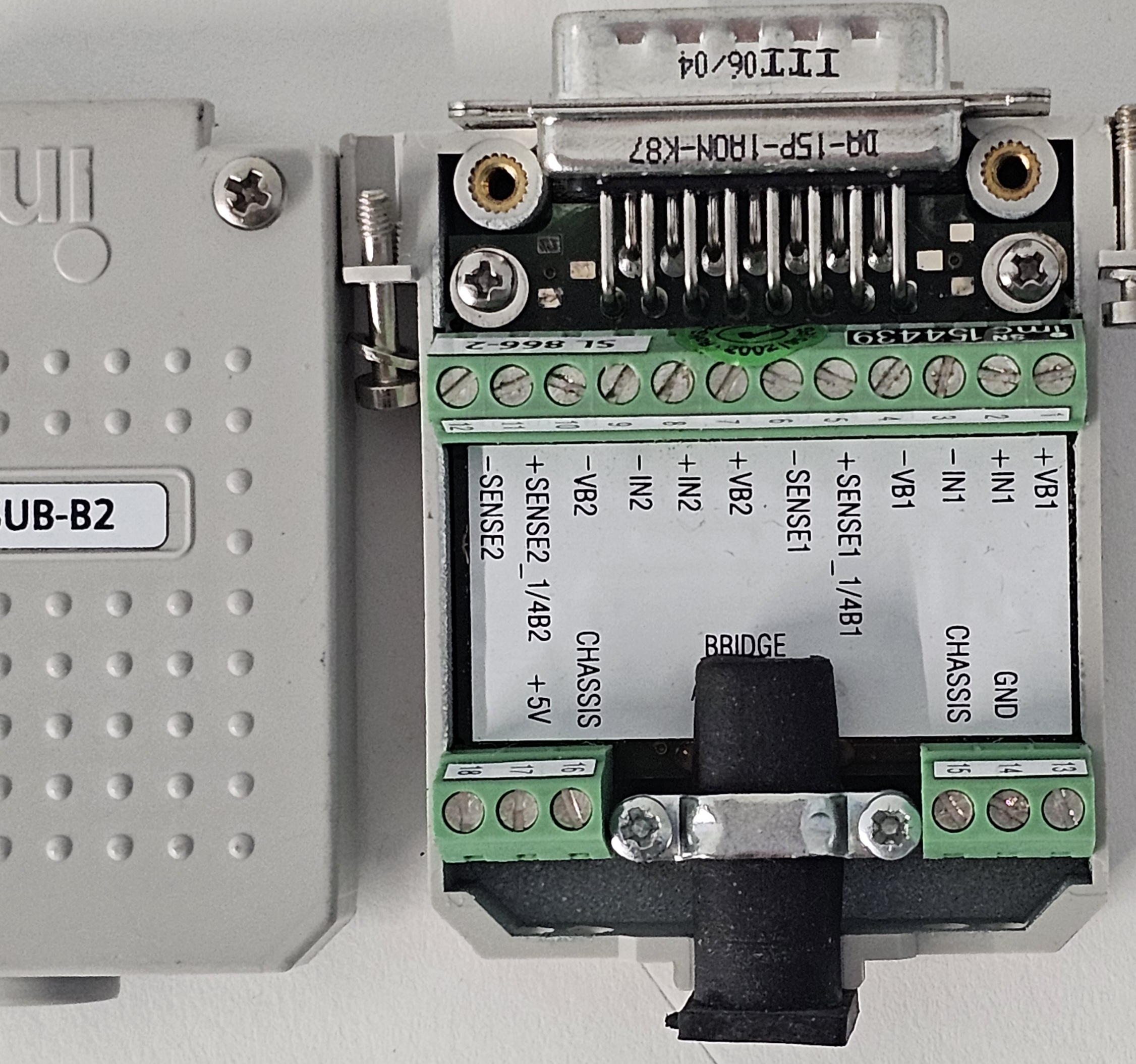

| ACC/DSUB-B2 | 2 Chn Input connector for V, ma, 1/4, 1/2 and Full Strain Gauge Sensors |
| ACC/DSUB-UNI | 2 Chn Input connector for V, ma, Strain Gauge, RTD and Thermocouple |
ACC/DSUBM - Downloads
ACC/DSUBM 2Chn Input Connectors Manual |
ACC/DSUBM - Related Products
- Ideal for Data Acquisition Input / Output extension cables
- D-SUB pins to D-SUB Socket
- Low Capacitance provides Bandwidth of 0 Hz up to 10kHz
- Cable Lengths start at 2.5 ft. up to 50 ft.
These molded cables are terminated with the 15 pin DSUB Socket on one end and a 15 pin - 2 row DSUB connector on the other end with straight through 26AWG conductors.
