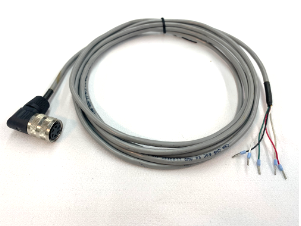

IC011, cable assemblies
These cables are typically used for mating connectors for Displacement Sensors, Encoders and a wide range of other sensors. The cable is typically low capacitance 24AWG cable, with 4 or 6 conductors, available in lengths from 3 ft up to 100 ft.
Features:

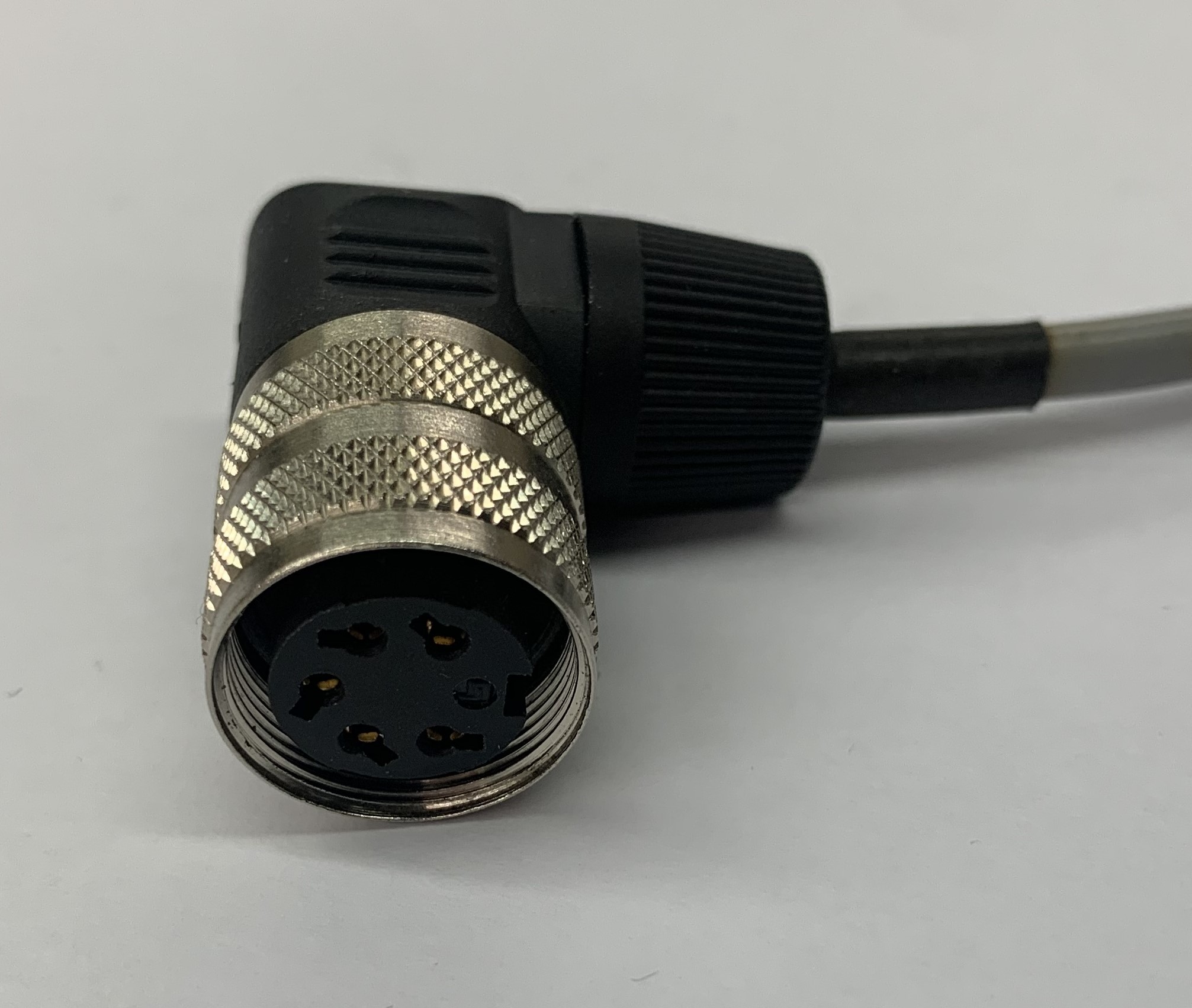

- 5 pin socket, Industrial Circular Connector with 90 degree cable exit
- static and dynamic signals, DC up to 10kHz.
- Pin assignment 1) -exc &-sig, 2) +signal, 3) +exc
- Delco, Beldon, Teflon & High Flex cabling available
- various standard pinouts and custom pinouts available
Quote
Models & Accessories
IC011 - Models & Accessories
Models
| IC011 | 5 pin mating connector, 90 degree cable exit |
| IC011-ZA502 | 5 pin mating connector, 90 degree cable exit to flying leads, |
| IC011-ZA502-010-03 | 5 pin mating connector, 90 degree cable exit to flying leads, 10ft long, 4 conductor cable |
| IC011-ZA502-010-30 | 5 pin mating connector, 90 degree cable exit to flying leads, 10ft long, 4 cond. high flex cable |
| IC011-ZA502-015-03 | 5 pin mating connector, 90 degree cable exit to flying leads, 15ft long, 4 conductor cable |
| IC011-ZA502-020-03 | 5 pin mating connector, 90 degree cable exit to flying leads, 20ft long, 4 conductor cable |
| IC011-ZA502-020-30 | 5 pin mating connector, 90 degree cable exit to flying leads, 20ft long, 4 cond. high flex cable |
| IC011-ZA502-025-03 | 5 pin mating connector, 90 degree cable exit to flying leads, 25ft long, 4 conductor cable |
| IC011-ZA502-040-03 | 5 pin mating connector, 90 degree cable exit to flying leads, 40ft long, 4 conductor cable |
