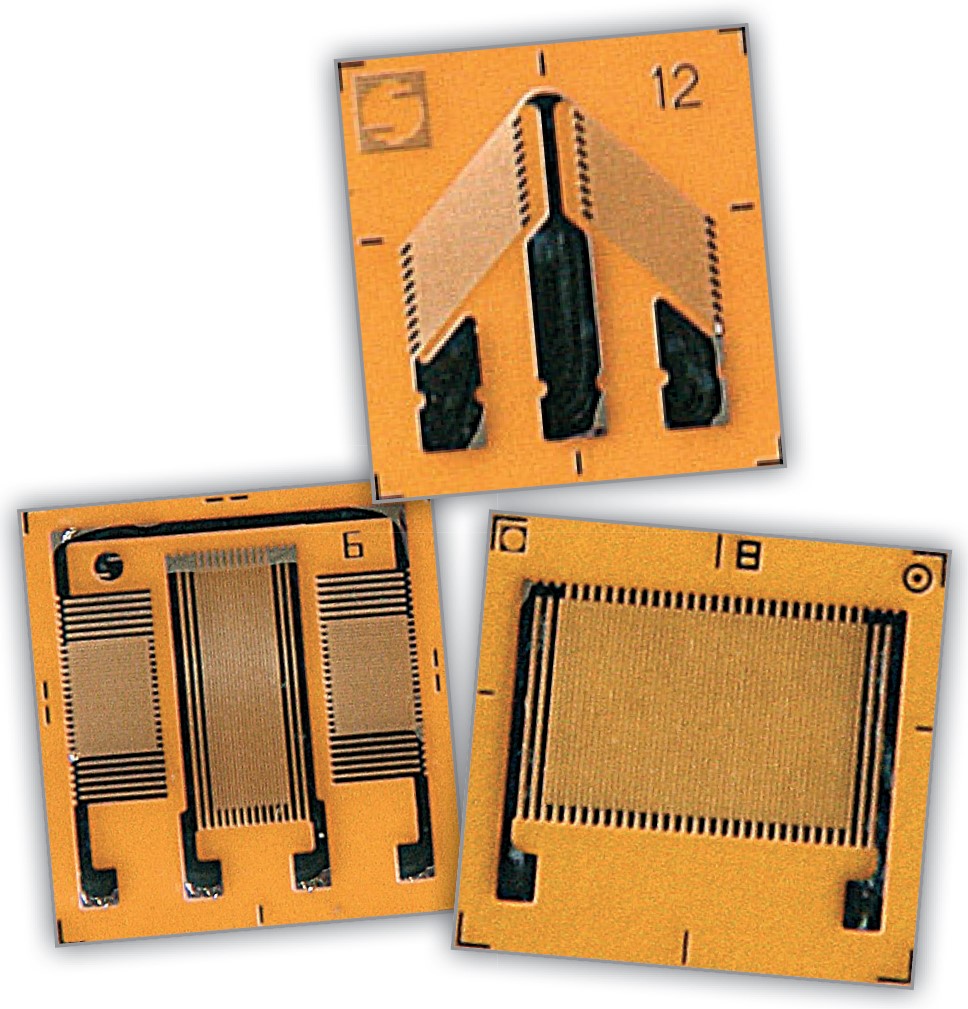

SPA, Foil Strain Gauges
Single & Dual, Linear & Shear Foil Gauge configurations for Quarter, Half & Full Bridge circuits.
Features:
- Polyimide backing & Constantan conductor
- Encapsulated & Reinforced versions
- Material Compensation, 13ppm for Aluminum & 6ppm for Steel
- Gauge Lengths of 0.11", 0.125" & 0.150"
- Gauge Resistance, 350Ω for 1/4 bridge and 700Ω for 1/2 bridge
Manufacturer: Scaime
Quote
Datasheet
Downloads
Related Products
SPA - Downloads
Foil Strain Gauges Datasheet |
SPA - Related Products
-8_2015_ATI.jpg)
- imc CRONOSflex Dynamic Strain Gauge Module
- 8 Analog Input Channels
- Very High Signal Bandwidth of up to 48 kHz
- Software Selectable Quarter-Bridge Completion Between 120 - 350 ohms
- Graphical Configuration Wizard to Set Strain Gauge Bridges
- Supports imc Plug & Measure
- High-Density DSUB Terminal Connection Available
| Family | imc CRFX |
| Unit Type | Module |
| Input Type | Voltage, Current, Strain Gauge, ICP |
| Analog Inputs | 8 |
| Max Bandwidth | 48 kHz |
| Max Sample Rate | 100 kHz |
- imc CRONOSflex Bridge Measurement Amplifier
- 4 Analog Input Channels
- Carrier Frequency Excitation (5 kHz) for Bridges & LVDT
- Supports Single & Dual Sense Line Configurations
- Symmetric Bridge Supply of 1 V, 2.5 V, 5 V with DC & AC Mode
- Broken Wire Detection
- Integrated Calibration Resistor for Shunt Calibration
- Software Selectable Quarter-Bridge Completion 120 & 350 ohms
| Family | imc CRFX |
| Unit Type | Module |
| Input Type | Voltage, Current, Strain Gauge, ICP |
| Analog Inputs | 4 |
| Max Bandwidth | 14 kHz |
| Max Sample Rate | 100 kHz |
2-8_2015_ATI.jpg)
- imc CRONOSflex Bridge Measurement Amplifier Module
- 8 Analog Input Channels
- Medium Signal Bandwidths of up to 5 kHz
- Sensor Supply with Adjustable Voltage Supply
- Software Selectable Quarter-Bridge Completion Between 120 & 350 ohms
- Graphical Configuration Wizard to Set Strain Gauge Bridges
- Supports imc Plug & Measure
- High Density DSUB Connectors Available
| Family | imc CRFX |
| Unit Type | Module |
| Input Type | Voltage, Current, Strain Gauge, ICP |
| Analog Inputs | 8 |
| Max Bandwidth | 5 kHz |
| Max Sample Rate | 100 kHz |
- 4 Bridge/Strain Gauge Input Channels
- Supports Quarter Half & Full Bridge configurations
- 4 or 6-wire Sensor Inputs for excitation drop compensation
- Input-to-Bus Isolation, 1500 Vrms
- Channel Overload Protection, 30 Vrms
- Individually Configurable Inputs
- Simultaneous Sampling using dedicated A/D convertors
- Burst Mode
| Family | Dataforth MAQ20 |
| Unit Type | Module |
| Input Type | Strain Gauge |
| Analog Inputs | 4 |
| Min Temperature | -40 °C |
| Max Temperature | 85 °C |
