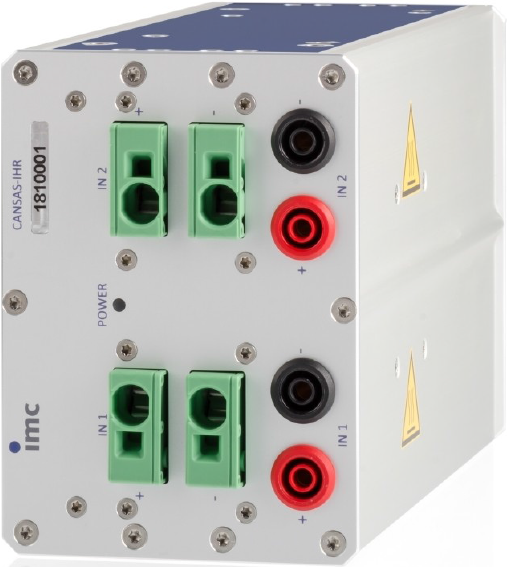

imc CANSAS-IHR, High Resolution Current Measurements
CANSAS-IHR provides two independent channels for measurement of currents, with automatic and dynamic range switching during a running measurement.
This achieves an extremely high resolution of approx. 30 bits/180 dB.
Features:
- Measurement of full load operating currents & low standby currents uninterrupted

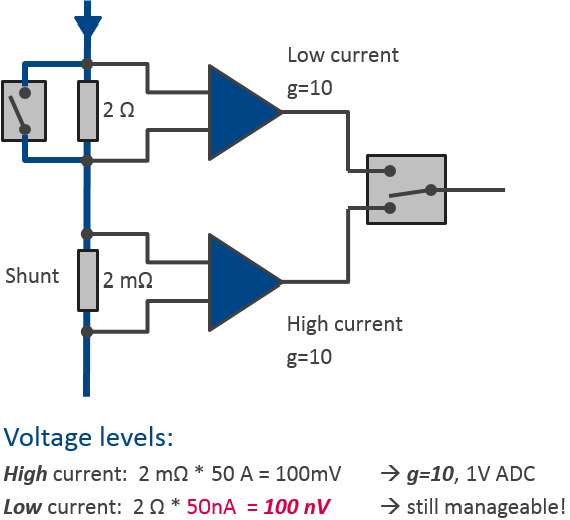

- Automatic range switching (Auto Ranging)
- Nominal current 30 A (continuous) & 78 A (peak)
- Resolution down to 0.000036 mA on low range
Manufacturer: imc Test & Measurement
Quote
Product Note
Specifications
Models & Accessories
Downloads
imc CANSAS-IHR - Specifications
| Family | imc CANSAS |
| Unit Type | Module |
| Input Type | Current |
| High Voltage/Current | |
| Analog Inputs | 2 |

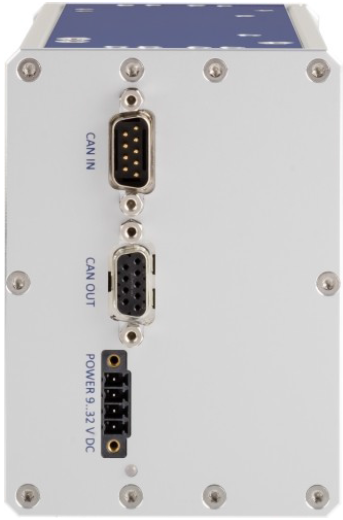

| Field Interface | CANbus |
| Max Bandwidth | 1 kHz |
| Resolution | 24-bit |
| Communication | CANbus |
| Min Temperature | 0 °C |
| Max Temperature | 50 °C |
imc CANSAS-IHR - Models & Accessories
Models
| CAN/IHR | CANSAS-IHR, 2 current inputs Auto-Ranging, 12V electrical systems |
| CAN/IHR-48V | CANSAS-IHR-48V, 2 current inputs Auto-Ranging, 48V electrical systems |
| CAN/IHR-R | CANSAS-IHR-R, 2 current inputs Auto-Ranging, 12V electrical systems, Plug-In module for 19" Backplane IHR-RACK, |
| CAN/IHR RACK | CANSAS-IHR RACK, 19" Rack and backplane with soldering and plug in terminals on the back side |
imc CANSAS-IHR - Downloads
imc_CANSAS-IHR_2017 Product Note |
WP Current Measurement with Auto-Ranging Tech Note |
