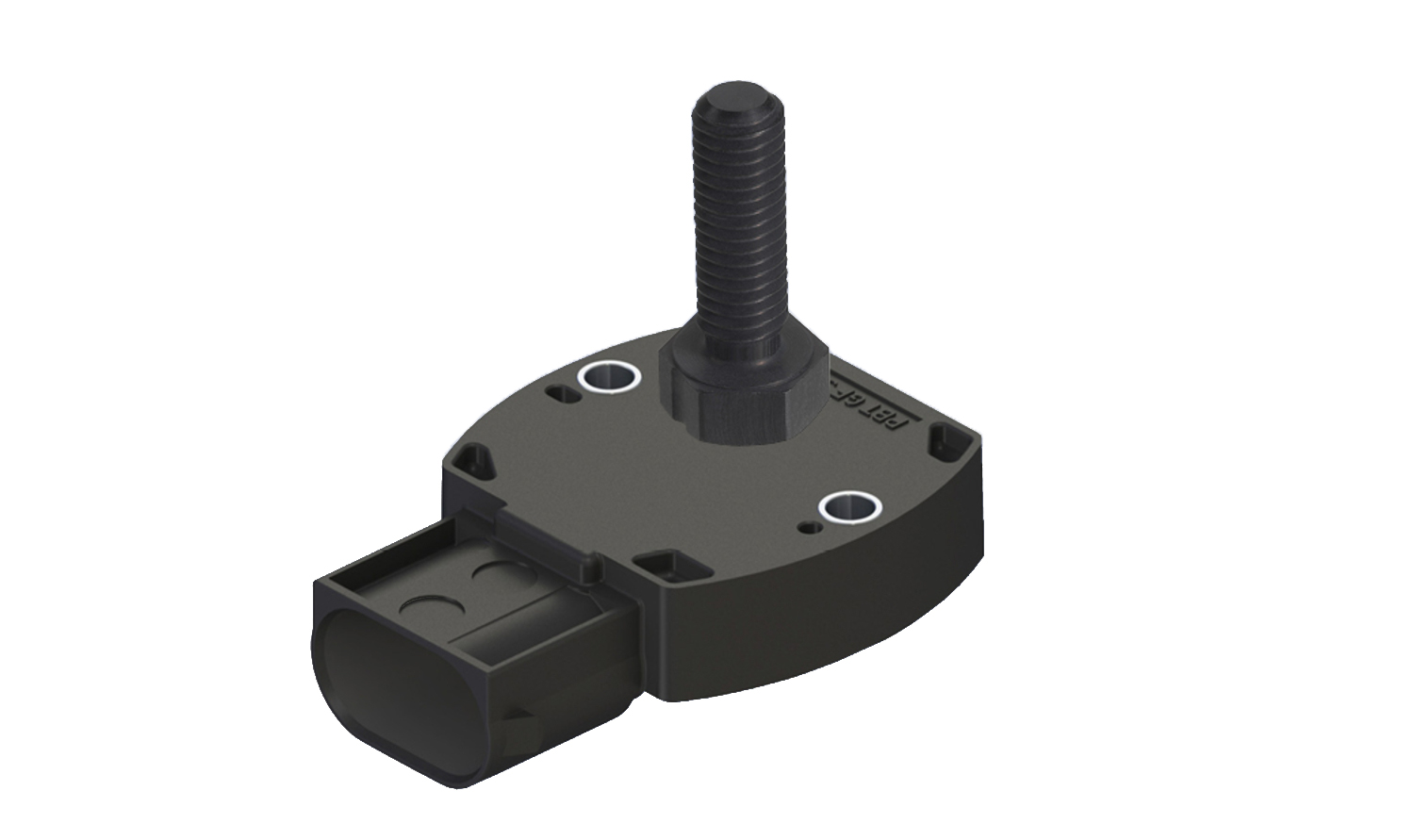

RFE-3200, NOVOHALL Rotary Sensor, Touchless
The RFE-3200 is perfectly suitable for use in harsh environmental conditions through the completely encapsulated electronics. Single and dual-channel versions are available and suitable for use in safety-related applications.
Features:
- Touchless hall technology
- Electrical range up to 360°
- 2-part, mechanically decoupled
- High protection class IP67, IP68, IP69K
- Resolution up to 12 bit
- Wear-free
- Temperature range -40 °C to +125 °C
- Single and dual-channel versions
- Optimized for use in mobile applications with highest EMC requirements such
- as ISO pulses and high interferences to ISO 11452 and ECE-Standard
- Suitable for safety-related applications according to DIN EN ISO 13849
- Other configurations see separate data sheets
Manufacturer: Novotechnik
Quote
Datasheet
Specifications
Applications
Downloads
Similar Products
RFE-3200 - Specifications
| Type | Non-Contact |
| Hall | |
| Full Scale | 360° |
| Continuous | |
| Max Speed | Unlimited |
| Output | 0.5 - 4.5 V DC |
| Non-Linearity | ±0.50 % FS |
| Resolution | 0.1° |
| Excitation | 12 - 24 V DC |
| IP Rating | IP67 |
| IP68 | |
| IP69K | |
| Min Temperature | -40 °C |
| Max Temperature | 125 °C |
