PTLA 10, Draw-Wire Displacement Sensor
Features:
- Full stroke from 0 - 10 m
- Signal proportional to the displacement
- Simple mechanical assembly
- Accuracy 0.1 %
- Absolute signal (mA,V, potentiometer)
Manufacturer: Scaime
Quote
Datasheet
Description
Specifications
Models & Accessories
Downloads
Related Products
Similar Products
PTLA 10 - Description
Extremely simple in design, cable displacement sensors are very easy to implement and can be installed on existing systems. Their robustness makes it possible to use them in the most difficult environments.
PTLA 10 - Specifications
| Type | Draw Wire |
| Full Scale | 0 -10 m |
| Output | 0 - 5 V DC |
| 0 - 10 V DC | |
| 0 - 20 mA | |
| 4 - 20 mA | |
| 1kΩ | |
| Non-Linearity | ± 0.15 % EM |
| Resolution | Theoretically Unlimited |
| Excitation | 24 V DC |
| IP Rating | IP65 |
| IP67 | |
| Min Temperature | -20 °C |
| Max Temperature | 80 °C |
PTLA 10 - Models & Accessories

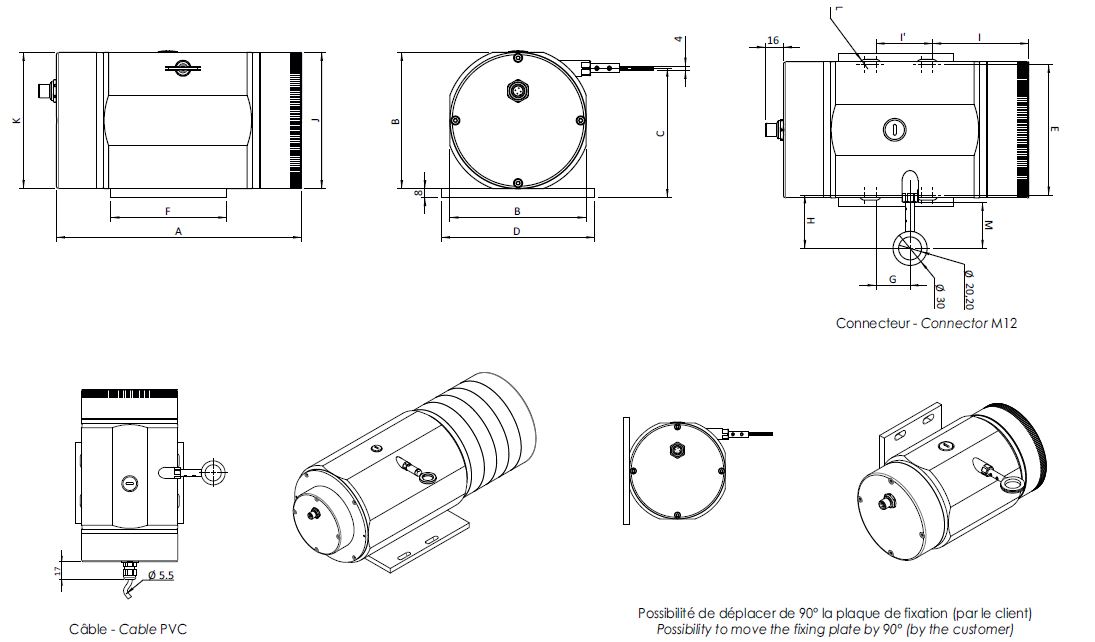

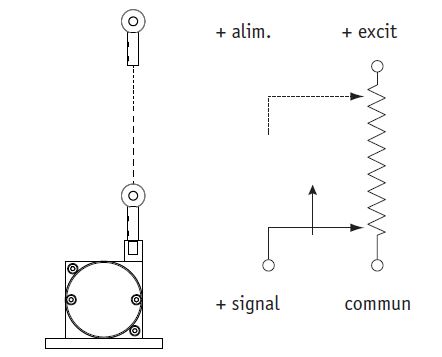

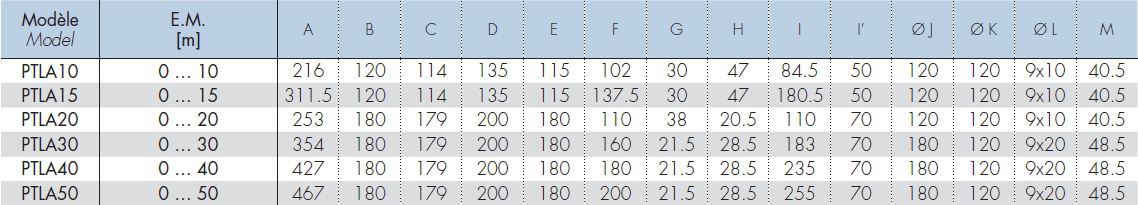

Models
| PTLA 10 | Full stroke 0 - 10 m |
| PTLA 15 | Full Stroke 0 - 15 m |
| PTLA 20 | Full Stroke 0 - 20 m |
| PTLA 30 | Full Stroke 0 - 30 m |
| PTLA 40 | Full Stroke 0 - 40 m |
| PTLA 50 | Full Stroke 0 - 50 m |
Accessories
| A40 | Magnet for cable fixing, allows fixing the cable on a metal part. |
| P70 | Angle gear pulley, allows the cable to be oriented in the axis of the sensor. |
PTLA 10 - Downloads
PTLA Series Datasheet |
Scaime Displacement Transducers Brochure |
