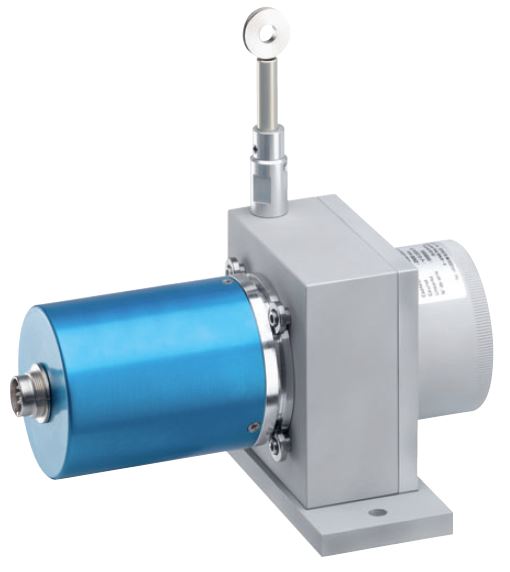

PTSI3, Draw-Wire Displacement Sensor
Full stroke from 0 - 2500 mm
Features:
- Signal proportional to the displacement
- Simple mechanical assembly
- Accuracy 0.01 %

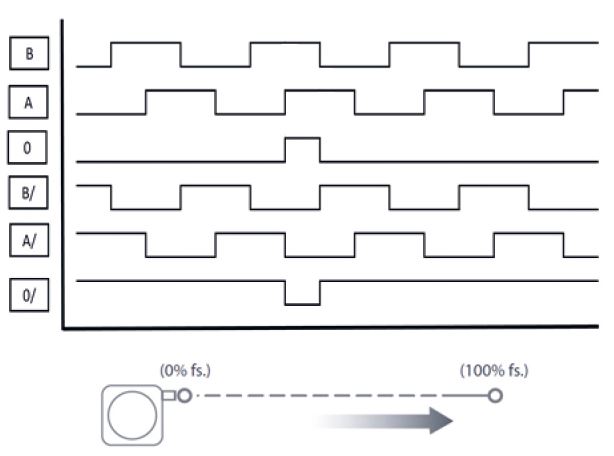

- Output signal pulses
Manufacturer: Scaime
Quote
Description
Models & Accessories
PTSI3 - Description
Extremely simple in design, these cable displacement sensors are very easy to implement and can be installed on existing systems. Their robustness makes it possible to use them in the most difficult environments.
PTSI3 - Models & Accessories
Models
| PTSI3 | Full stroke from 0 - 2000 mm |
| PTSI1 | Full stroke from 0 - 1250 mm |
| PTSI2 | Full stroke from 0 - 1500 mm |
| PTSI4 | Full stroke from 0 - 3500 mm |
| PTSI5 | Full stroke from 0 - 6000 mm |
