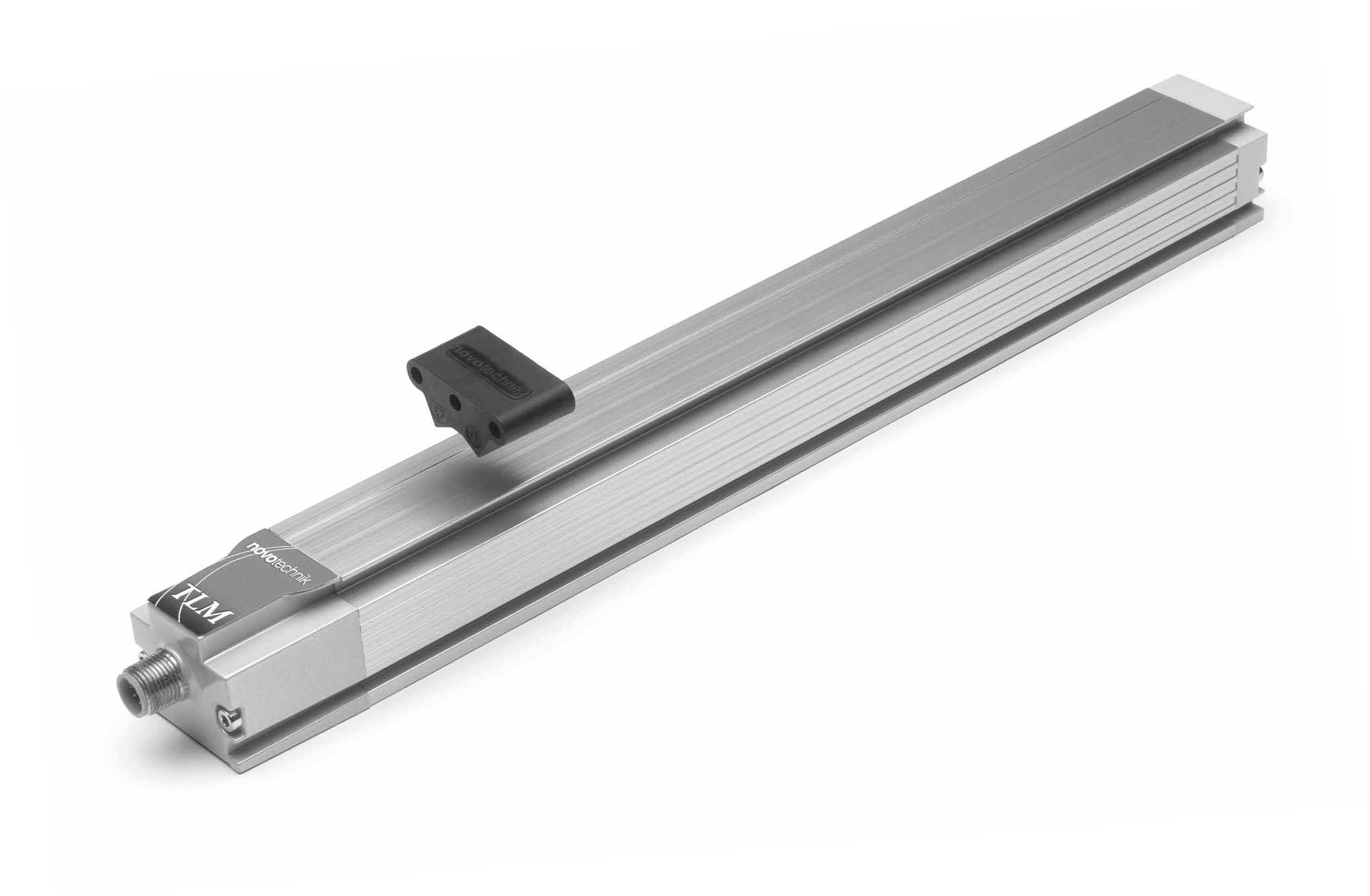

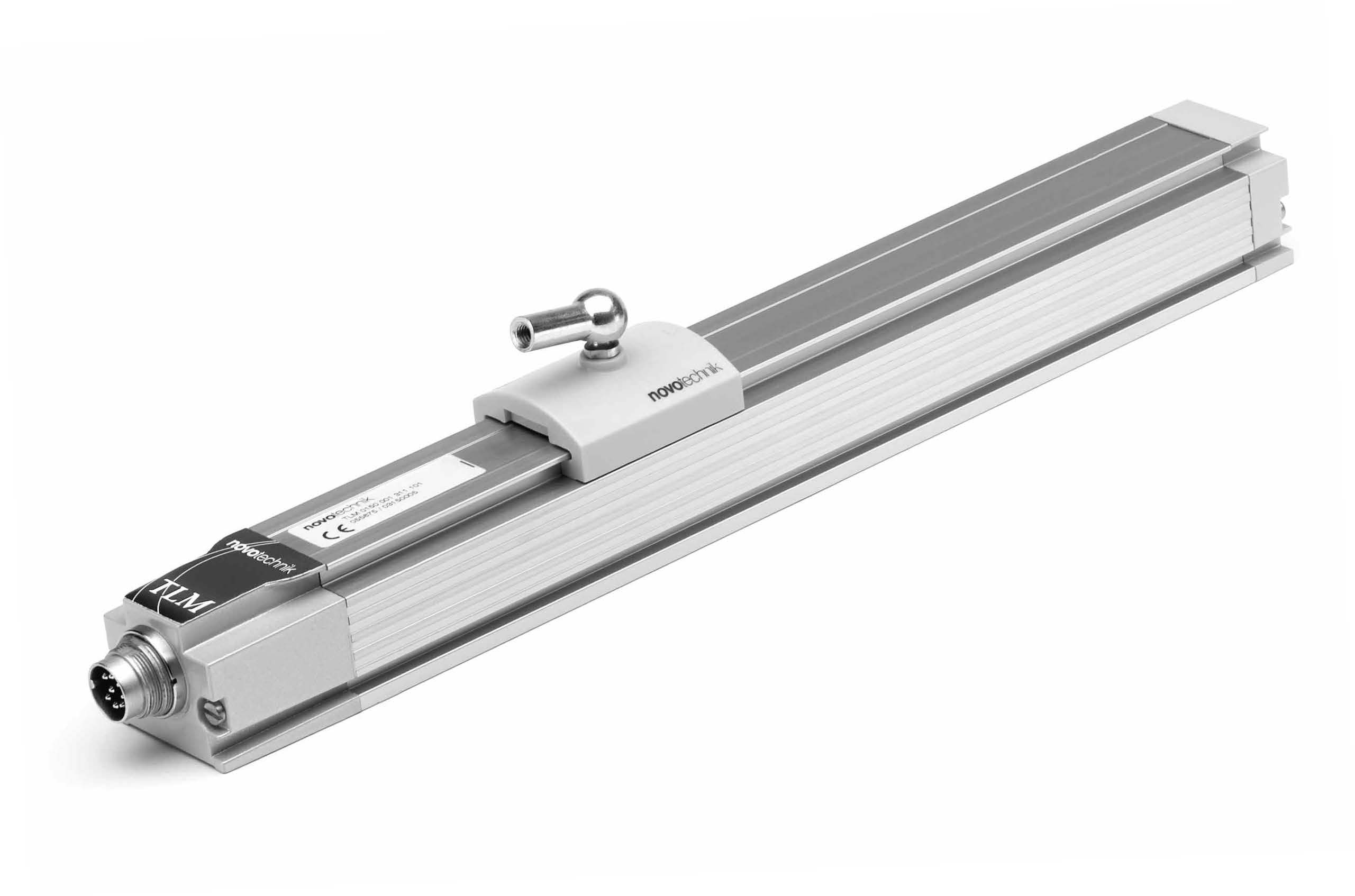

TLM, Touchless Absolute Transducer
The TLM employ the NOVOSTRICTIVE® touchless magnetostrictive measuring process for direct, precise and absolute measurement of linear position in control, positioning and measuring technology.
Features:
- Up to 4500 mm
- Absolute transducer, no slide arm required

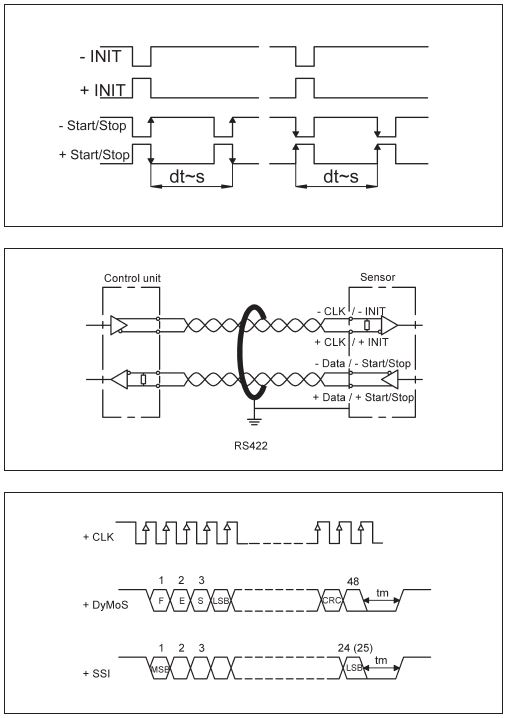

- High-dynamic serial DyMoS® interface with data transmission monitoring
- Non-contacting guiding with floating position marker
- Unlimited mechanical life
- No velocity limit for position marker
- Outstanding linearity performance up to 30 μm
- Resolution up to 0.001 mm regardless of stroke length
- Analog interfaces have end-user output range programming capability
- low temperature coefficient <20 ppm/K
- Insensitive to shock and vibration
- Optional cable or plug connection
- Protection class IP67 / IP68
Manufacturer: Novotechnik
Quote
Datasheet
Description
Specifications
Downloads
TLM - Description
TLM - Specifications
| Type | Potentiometer |
| Full Scale | 50 - 4500 mm |
| Output | 0 - 10 V DC |
| 0 - 20 mA | |
| Non-Linearity | ± 50 μm |
| ± 30 μm | |
| IP Rating | IP67 |
| IP68 | |
| Min Temperature | -40 °C |
| Max Temperature | 120 °C |
TLM - Downloads
TLM Datasheet |
