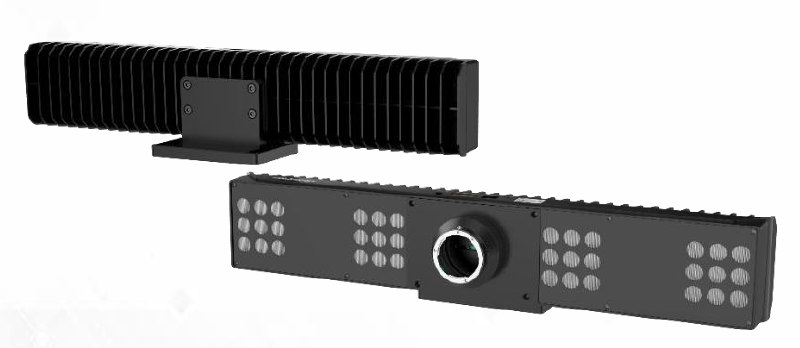

MV-ID7080EM-35F-WHA, ID7000 Series, Smart Code Reader
MV-ID7080EM-35F-WHA smart code reader realizes automatic code recognition in all directions based on DWS code reading scenario. Relying on code recognition technology, the smart code reader can output recognition results in a rapid and accurate way.
Features:
- Built-in code reading algorithm to read different types of one-dimensional and two-dimensional codes with good robustness.
- Supports image stitching and outputting combined images according to order.
- Adopts image sensor to acquire and provide high-quality images.
- Supports different trigger modes and image acquisition modes.
- Adopts multiple IO interfaces for input/outputsignals.
- Supports RS-232 serial communication protocol.
- Integrated light source design with 36 LED lamps.
Manufacturer: HIKROBOT
Quote
Datasheet
Description
Specifications
Applications
Downloads
Similar Products
MV-ID7080EM-35F-WHA, ID7000 Series - Description
MV-ID7080EM-35F-WHA smart code reader realizes automatic code recognition in all directions based on DWS code reading scenario. Relying on code recognition technology, the smart code reader can output recognition results in a rapid and accurate way.
MV-ID7080EM-35F-WHA, ID7000 Series - Specifications
| Power Supply | 48 VDC |
| Data Interface | Gigabit Ethernet |
| Communication | FTP |
| HTTP | |
| Serial | |
| SmartSDK | |
| TCP Client/Server | |
| 1-Dimensional Code | Code 39 |
| Code 93 | |
| Code 128 | |
| CodaBar | |
| 2-Dimensional Code | Data Matrix |
| QR Code | |
| Certification | CE |
| KC | |
| FCC | |
| RoHS |
MV-ID7080EM-35F-WHA, ID7000 Series - Applications
Code-reading in logistics industry, factory automation, etc.
MV-ID7080EM-35F-WHA, ID7000 Series - Downloads
MV-ID7080EM-35F-WHA, Datasheet Datasheet |
MV-ID7080EM-35F-WHA, stp Drawing Drawings |
