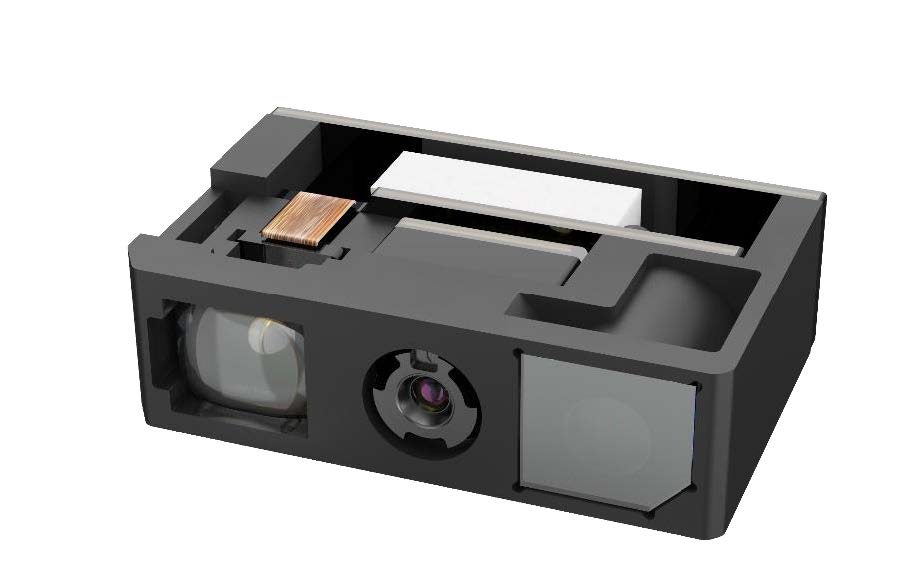

MV-ID1010MG-05-W1MS-C, Code Reader Module
With code recognition technology, the MV-ID1010MG-05-W1MS-C
code reader module can read different types of codes, and output
corresponding information.
Features:
- Adopts 1 MP global sensor to provide high-quality images.
- Adopts cross laser to aim targets.
- Reads different codes with good robustness.
- Provides SDK for flexible applications.
- Compact size is able to fit into space constrained application environments.
- Low power consumption.
Manufacturer: HIKROBOT
Quote
Datasheet
Description
Specifications
Applications
Downloads
Similar Products
MV-ID1010MG-05-W1MS-C - Description
With code recognition technology, the MV-ID1010MG-05-W1MS-C code reader module can read different types of codes, and output
corresponding information. It is applicable to mainstream mobile processors like Qualcomm, MTK, etc.
MV-ID1010MG-05-W1MS-C - Specifications
| Resolution | 1 MP |
| 1-Dimensional Code | Code 11 |
| Code 39 | |
| Code 93 | |
| Code 128 | |
| CodaBar | |
| China Post | |
| EAN 8 | |
| EAN 13 | |
| Industrial 25 | |
| ITF 25 | |
| Matrix 25 | |
| MSI | |
| UPCA | |
| UPCE | |
| 2-Dimensional Code | Aztec Code |
| Data Matrix | |
| HANXIN | |
| Micro QR Code | |
| POST | |
| QR Code |
MV-ID1010MG-05-W1MS-C - Applications
Handheld terminals and PDAs, tablet devices, etc.
MV-ID1010MG-05-W1MS-C - Downloads
MV-ID1010MG-05-W1MS-C datasheet Datasheet |

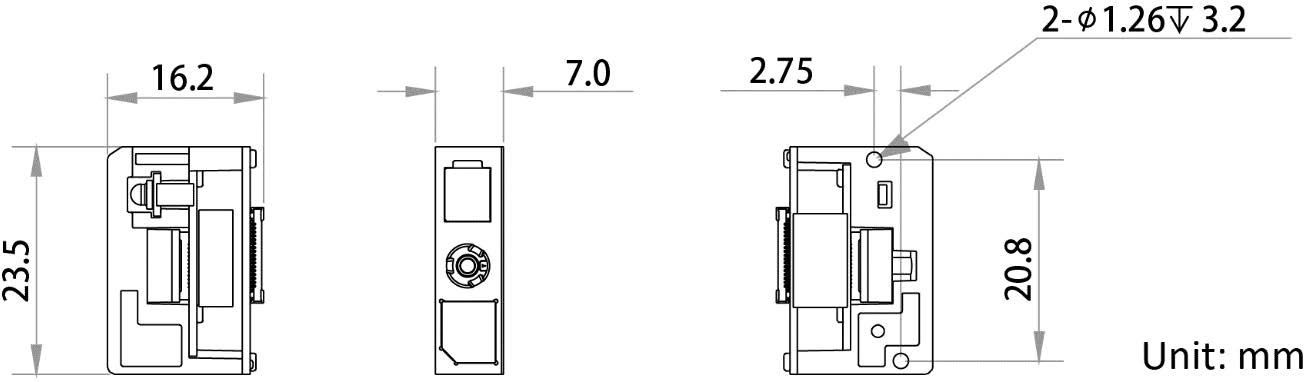

MV-ID1010MG-05-W1MS-C stp drawing Drawings |
