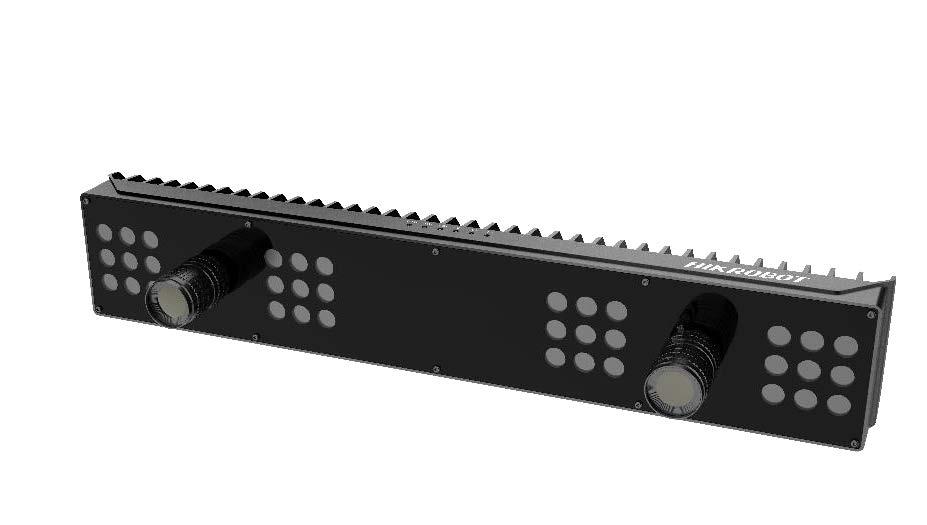

MV-IDX012M-16C-W, Smart Code Reader
The MV-IDX012M-16C-W smart code reader consists of 2 image sensors of 12 MP. With built-in code reading algorithm, it can read different types of 1-dimensional and 2-dimensional barcodes.
Features:
- Adopts built-in code reading algorithm to read barcodes with good robustness.
- Adopts multiple IO interfaces for input and output signals.
- Supports RS-232 serial communication protocol.
- Supports indicators displaying device status.
- Adopts image sensors to acquire image data and provide high-quality image.
Manufacturer: HIKROBOT
Quote
Datasheet
Description
Specifications
Applications
Downloads
Similar Products
MV-IDX012M-16C-W - Description
The MV-IDX012M-16C-W smart code reader consists of 2 image sensors of 12 MP. With built-in code reading algorithm, it can read different types of 1-dimensional and 2-dimensional barcodes. It has good robustness, and its max. reading speed is up to 90 codes/s.
MV-IDX012M-16C-W - Specifications
| Resolution | 12 MP |
| Power Supply | 48 VDC |
| Max Reading Speed | 90 codes/sec |
| Communication | FTP |
| HTTP | |
| Serial | |
| SmartSDK | |
| TCP Client/Server | |
| 1-Dimensional Code | Code 39 |
| Code 93 | |
| Code 128 | |
| CodaBar | |
| EAN | |
| ITF 25 | |
| 2-Dimensional Code | Data Matrix |
| QR Code |
MV-IDX012M-16C-W - Applications
Code-reading in logistics industry, factory automation, etc.
MV-IDX012M-16C-W - Downloads
MV-IDX012M-16C-W datasheet Datasheet |
