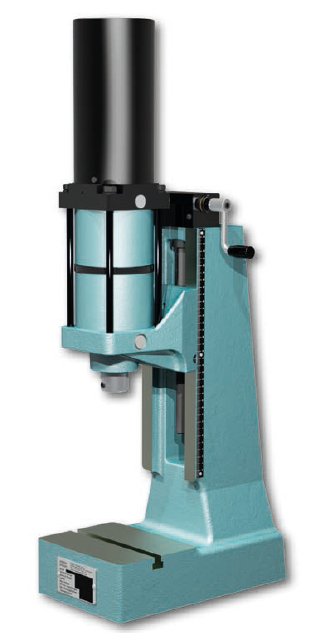

XL-DA 1700-*-300, Direct-acting press
- Pneumatic Direct-acting press
- Capacity: 17.0 kN
- Working stroke: 40/60/80/100/120 mm
- Throat: 130 mm
- Daylight: 140 - 275 mm
- Table size: 200 x 220 mm
- Ram bore Ø x Depth: 20H7 x 25 mm<
- Ram Ø: 40 mm

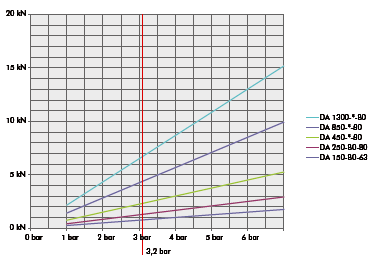

DA range
DA presses are the logical implementation of modern press technology for direct-acting pneumatic presses. Due to their modular design, exactly the size needed for the application can be selected, thus optimising the price/performance ratio. Standard stroke lengths from 40 mm to 120 mm are available in 20 mm steps. Special lengths can be provided on request. Direct-acting pneumatic presses produce a constant force over the whole stroke length. All direct-acting pneumatic presses can be provided as automation components or with mäder controllers for individual workstations.
DA presses are practically maintenance-free, as all moving parts are mounted in bearings. Cylinders are pre-greased and are therefore suitable for oil-free operation.
Quality features:
- Anti-twist, hard-chrome-plated ram guided in Teflon bushes
- Simple adjustment of the height of the press head using a threaded spindle and right-angle gearbox
- Side-mounted measuring strip for fast reproduction of settings when changing the tool
- Practically maintenance-free double-acting cylinder
- Adjustable cylinder end-position damping
- Low noise: less than 75 dB
| Type | Direct-acting |
| Capacity | 17.0 kN |
| Working Stroke | 40/60/80/100/120 mm |
| Daylight start | 140 mm |
| Daylight end | 275 mm |
| Table size | 200 x 220 mm |
| Ram Dimensions | 20H7 x 25 mm |
| Ram Size | 40 mm |
| XL-DA 1700-40-250 | |
| XL-DA 1700-40-300 | |
| XL-DA 1700-60-250 | |
| XL-DA 1700-60-300 | |
| XL-DA 1700-80-250 | |
| XL-DA 1700-80-300 | |
| XL-DA 1700-100-250 | |
| XL-DA 1700-100-300 | |
| XL-DA 1700-120-250 | |
| XL-DA 1700-120-300 |
Direct Acting Pneumatic Presses (Complete Range) Datasheet |
- Pneumatic Direct-acting press
- Capacity: 13.0 kN
- Working stroke: 40/60/80/100/120 mm
- Throat: 130 mm
- Daylight: 140 - 175 mm
- Table size: 200 x 220 mm
- Ram bore Ø x Depth: 20H7 x 25 mm
- Ram Ø: 40 mm
| Type | Direct-acting |
| Capacity | 13.0 kN |
| Working Stroke | 40/60/80/100/120 mm |
| Daylight start | 140 mm |
| Daylight end | 275 mm |
| Table size | 200 x 220 mm |
- Pneumatic Direct-acting press
- Capacity: 4.5 kN
- Working stroke: 40/60/80/100/120 mm
- Throat: 130 mm
- Daylight: 140 - 275 mm
- Table size: 200 x 220 mm
- Ram bore Ø x Depth: 20H7 x 25
- Ram Ø: 40 mm
| Type | Direct-acting |
| Capacity | 4.5 kN |
| Working Stroke | 40/60/80/100/120 mm |
| Daylight start | 140 mm |
| Daylight end | 275 mm |
| Table size | 200 x 220 mm |
- Pneumatic Direct-acting press
- Capacity: 8.5 kN
- Working stroke: 40/60/80/100/120 mm
- Throat: 130 mm
- Daylight: 140 - 275 mm
- Table size: 200 x 220 mm
- Ram bore Ø x Depth: 20H7 x 25 mm
- Ram Ø: 40 mm
| Type | Direct-acting |
| Capacity | 8.5 kN |
| Working Stroke | 40/60/80/100/120 mm |
| Daylight start | 140 mm |
| Daylight end | 275 mm |
| Table size | 200 x 220 mm |
- Pneumatic Direct-acting press
- Capacity: 21.0 kN
- Working stroke: 40/60/80/100/120 mm
- Throat: 130 mm
- Daylight: 130 - 275 mm
- Table size: 200 x 220 mm
- Ram bore Ø x Depth: 20H7 x 25 mm
- Ram Ø: 40 mm
| Type | Direct-acting |
| Capacity | 21.0 kN |
| Working Stroke | 40/60/80/100/120 mm |
| Daylight start | 130 mm |
| Daylight end | 275 mm |
| Table size | 200 x 220 mm |
- Pneumatic Direct-acting press
- Capacity: 28.0 kN
- Working stroke: 40/60/80/100/120 mm
- Throat: 130 mm
- Daylight: 130 - 275 mm
- Table size: 200 x 220 mm
- Ram bore Ø x Depth: 20H7 x 25 mm
- Ram Ø: 40 mm
| Type | Direct-acting |
| Capacity | 28.0 kN |
| Working Stroke | 40/60/80/100/120 mm |
| Daylight start | 130 mm |
| Daylight end | 275 mm |
| Table size | 200 x 220 mm |
