ForTest - M8999, M8999, Hydrogen Leak detector

The New Hydrogen Leak Detector

Intended both as a cycle that follows the normal leak test, either as a separate workstation for repairs only, the new sniffer at hydrogen allows in an easy, clean and fast way, the detection of the precise point of the leakage, enabling to repair the fault in a much faster and cleaner way.

It can be installed as an option on M8990 equipments, combining then the leak test together with the display of the leakage, or as an equipment that makes only its localization, ideal then not only to find the ideal testing points, but also to repair the pieces.

The great measurement sensitivity allows to detect leaks at a distance of already 5 cm., till arriving, thanks to the automatic scale change, to the precise position of the leakage, and to appreciate micro leaks of 1cc/h at a distance of few millimeters.

It is perfect both for particular pieces that cannot be put into the water, either for simple ones, in order to avoid cleaning or drying after the normal bubble test.

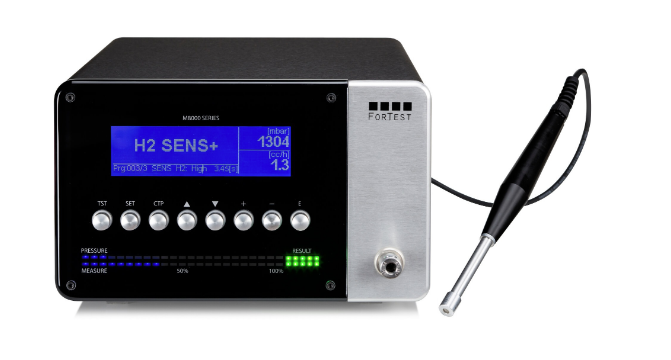

The system is composed by a central unit to set programs and test cycles, and by a hydrogen manual sniffer to find the leakage.

The cycle is composed by a phase of piece emptying, in order to aspirate all the air molecules contained in it and then by a phase of piece pressurization with a hydrogen blend at 5% to detect the right position of the leakage.

The intelligent logic of the Led bar on the equipment panel and of the multi-tone buzzer, allow the operator to recognize immediately the precise location of the leakage.

The low presence of hydrogen in the blend (5% H2-95% N2-NOT FLAMMABLE) makes testing safe and much more practical and clean than the classical systems in water basin or with leak detector spray.
